FEATURES
Provides system pressure setting and protection
for single gun (non-weep) and pump installation.
Compact size with optional ports for easy
installation.
New ergonomic handle permits easy adjustments
of pressure.
Pressure sensitive feature permits wide range
of flows and immediate pressure when gun
opens.
Color coded spring for easy identification and
simple change from one model to another.
Also functions as a secondary Relief Valve
without the check valve.
Model 7691 has a quick start valve to relieve
pump discharge line pressure at start up.
WARNING
All systems require both a primary pressure regulating device (i.e., regulator, unloader) and
a secondary pressure safety relief device (i.e., pop-off valve, safety valve). Failure to
install such relief devices could result in personal injury or damage to the pump or to
system components. CAT PUMPS does not assume any liability or responsibility for the
operation of a customer's high pressure system.
"Customer confidence is our greatest asset"
®

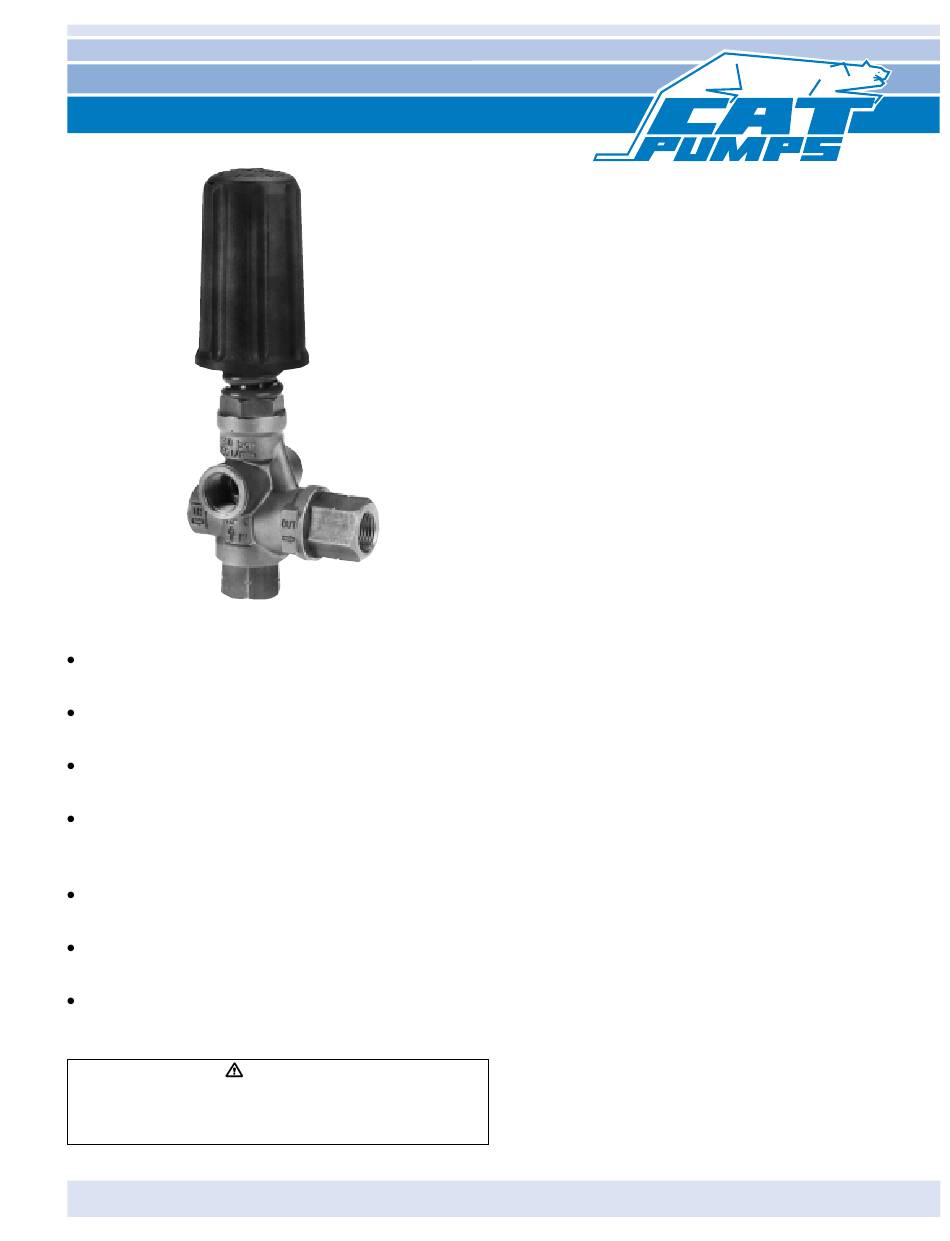

Pressure Sensitive
Regulating Unloader
Models
7670,7672
7690,7691
SPECIFICATIONS
7670
MODEL
Flow Range ................................2.5-8.0 GPM
Pressure Range ........................150-1750 PSI
Weight ...............................................1.66 lbs.
Dimensions ...........................7.0 x 3.12 x 2.0"
7672
MODEL
Flow Range ................................2.5-8.0 GPM
Pressure Range ........................850-3200 PSI
Weight ...............................................1.72 lbs.
Dimensions ...........................7.0 x 3.12 x 2.0"
7690
MODEL
Flow Range ................................2.5-8.0 GPM
Pressure Range ......................1000-4050 PSI
Weight ...............................................1.75 lbs.
Dimensions ...........................7.0 x 3.12 x 2.0"
7691
MODEL WITH QUICK START
Flow Range ................................2.5-8.0 GPM
Pressure Range ......................1000-4050 PSI
Weight ...............................................1.75 lbs.
Dimensions ...........................7.0 x 3.12 x 2.0"
COMMON SPECIFICATIONS
Maximum Temperature .........................195°F
Inlet Ports (2)..................................3/8" NPTF
Discharge Port (1) ..........................3/8" NPTF
By-Pass Port (1) .............................3/8" NPTF
Unloader is stamped with a European safety pressure. Use only at above
specifications to assure proper unloader life and performance.
For Relief Valve version add .100 to unloader model number.
For FPM o-ring version add .0110 to unloader model number.
U.S. Measure Metric Measure
(9.5-30 L/M)
(10-120 BAR)
(0.75 kg)
(178 x 79 x 51 mm)
(9.5-30 L/M)
(60-220 BAR)
(0.78 kg)
(178 x 79 x 51 mm)
(9.5-30 L/M)
(70-280 BAR)
(0.79 kg)
(178 x 79 x 51 mm)
(9.5-30 L/M)
(70-280 BAR)
(0.79 kg)
(178 x 79 x 51 mm)
(3/8" NPTF)
(3/8" NPTF)
(3/8" NPTF)
(90°C)
