Summary of Contents for gs yuasa GYT250

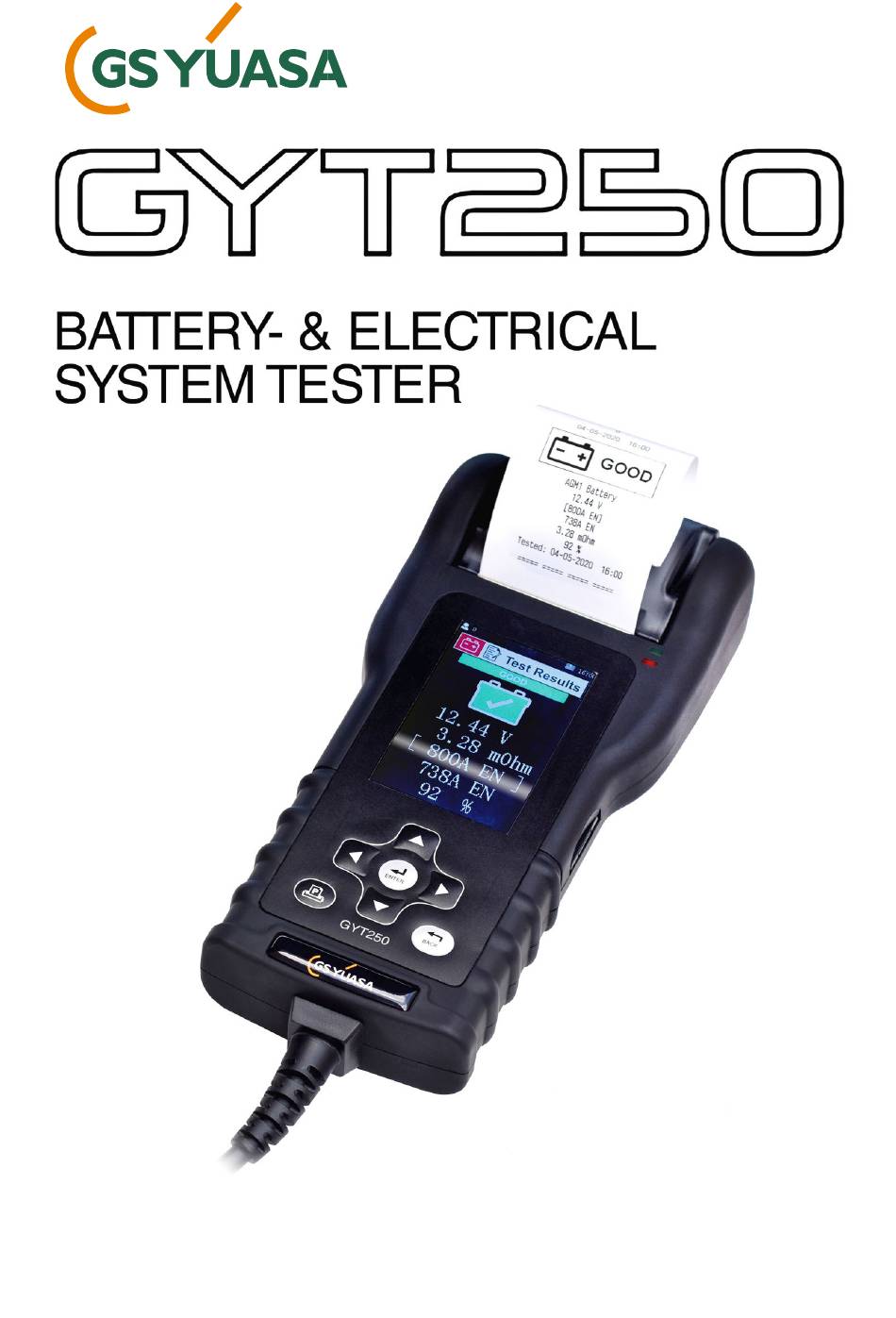

- Page 1 Specification & quick start guide...

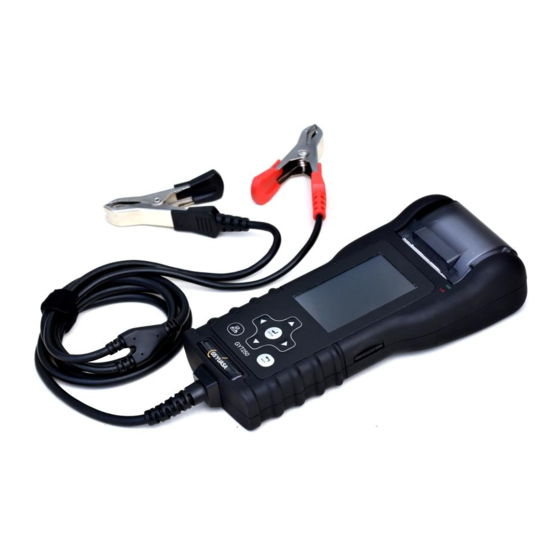

- Page 2 GYT250 specifications Supplied accessories: Carry case, quick start guide, thermal printer paper, 4GB micro SD card with adaptor, USB SD card reader Cable length : 1.6m Power requirements: Uses the power of the battery under test Dimensions Tester: 245mm (H) x 108mm (W) x 45mm (D)
-
Page 3: Connections And Controls
1. Overview The GYT250 can perform warranty, health and stock tests on conventional, EFB, AGM and leisure batteries. It can also give a comprehensive overview of a vehicle’s starter and charging system health through alternator, starter and earth checks. Results can be printed using the built-in thermal printer or transferred to a computer via the SD card. -
Page 4: Home Screen
4. Home screen When the GYT250 is connected to a battery, the home screen will be displayed. From here it is possible to start a test, manage previous results and configure the tester. 5. Settings menu 5.1 Set workshop name & contact details Select Settings >... -
Page 5: Battery Test
5.3 Set sound Select Settings > Sound Press to turn sound OFF or to turn sound ON Press ENTER to confirm and exit. 6. Starting a new test To start a new test, first select Test from the Home Screen Select the type of vehicle to be tested 7. - Page 6 Warranty – For testing of batteries presented for warranty claims Health Check – Determines the state of health, Voltage & CCA performance of batteries that have been used on a vehicle Stock Check – For battery stock management testing of new batteries that are in storage prior to being installed in a vehicle Note: Depending on the vehicle type selected, not all battery tests will be available Follow the sequence below to enter battery details...
-
Page 7: Starter Test
7.1 Print results Press PRINT button (8) then select required print option If Quick Print is selected, results are printed without adding a customer reference If Customer Details are selected then a reference (e.g. vehicle registration) can be added by navigating the keyboard When finished, select the save icon to exit and results will be printed 8. -
Page 8: Alternator Test
After selecting Starter Test the Voltage trace will be displayed Start the engine and the results will be automatically recorded After analysis results will be displayed Result / action Battery Volt drop is OK No action required Battery Volt drop too high Check battery, starter &... - Page 9 9.1 Unloaded (Upper Voltage) Test Ensure all vehicle accessories are switched OFF Rev the engine to 3000rpm, press ENTER then hold revs for 10 seconds Press ENTER > Hold for 10 secs The analyser will automatically move to the next step 9.2 Loaded (Lower Voltage) Test Ensure all vehicle accessories are switched ON e.g.
-
Page 10: Earth Test
A high resistance caused by loose or corroded connections can lead to poor starting. 10.1 Test procedure First select Earth Test then press ENTER Move the GYT250 black clamp from the battery negative terminal (-) to a suitable position on the vehicle chassis and press ENTER for analysis to take place... - Page 11 Note:- The test can be repeated to check the earth between battery and engine. This time move the clamp from the battery negative terminal (-) to a suitable metal part on the engine. Results can now be printed (see section 7.1) GS YUASA Battery Germany GmbH Europark Fichtenhain B17 47807 Krefeld...
