Summary of Contents for gs yuasa GYT250

  • Page 1 Quick start guide 13149 GYT250 Quick Start Guide Instructions.indd 1 13149 GYT250 Quick Start Guide Instructions.indd 1 10/06/2020 16:56 10/06/2020 16:56...
  • Page 2: Connections And Controls

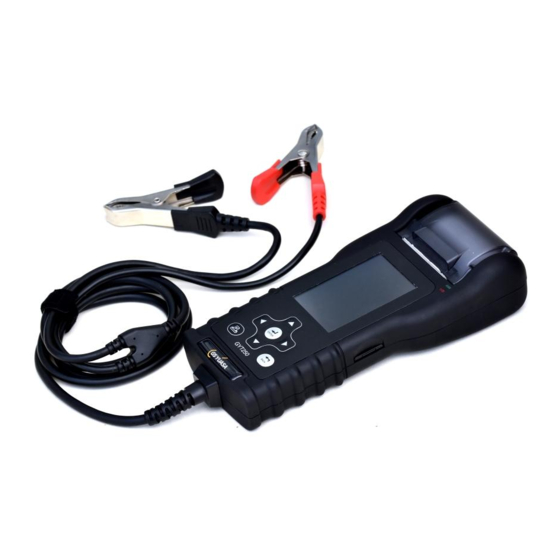

    1. Overview The GYT250 can perform warranty, health and stock tests on conventional, EFB, AGM and leisure batteries. It can also give a comprehensive overview of a vehicle’s starter and charging system health through alternator, starter and earth checks. Results can be printed using the built-in thermal printer or transferred to a computer via the SD card.
  • Page 3: Printer Paper Installation

    2. Use   keys to select a character, then press 4. Home screen ENTER  When the GYT250 is connected to a battery, the home 3. To move to another line, select navigation key then screen will be displayed. From here it is possible to start a press ENTER ...
  • Page 4 6. Starting a new test 1. To start a new test, first select Test from the Home Screen 13149 GYT250 Quick Start Guide Instructions.indd 4 13149 GYT250 Quick Start Guide Instructions.indd 4 10/06/2020 16:56 10/06/2020 16:56...
  • Page 5: Battery Test

    Note: Depending on the vehicle type selected, not all battery tests will be available 13149 GYT250 Quick Start Guide Instructions.indd 5 13149 GYT250 Quick Start Guide Instructions.indd 5 10/06/2020 16:56 10/06/2020 16:56...
  • Page 6 Battery is weak Service-related failure (rejected claim Replacement recommended under warranty test) Bad Cell detected Manufacturing defect (accepted claim Replacement recommended under warranty test) 13149 GYT250 Quick Start Guide Instructions.indd 6 13149 GYT250 Quick Start Guide Instructions.indd 6 10/06/2020 16:56 10/06/2020 16:56...
  • Page 7: Print Results

    1. Press PRINT  button (8) then select required the keyboard print option 2. If Quick Print is selected, results are printed without adding a customer reference 13149 GYT250 Quick Start Guide Instructions.indd 7 13149 GYT250 Quick Start Guide Instructions.indd 7 10/06/2020 16:56 10/06/2020 16:56...
  • Page 8: Starter Test

    Voltage during the starting process is measured. This can indicate if the battery has aged or the starter motor has a problem. 13149 GYT250 Quick Start Guide Instructions.indd 8 13149 GYT250 Quick Start Guide Instructions.indd 8 10/06/2020 16:56 10/06/2020 16:56...
  • Page 9: Alternator Test

    Loaded (Lower Voltage) check – Low engine revs with accessories ON • Diode Ripple check – Idle engine revs with headlights ON 13149 GYT250 Quick Start Guide Instructions.indd 9 13149 GYT250 Quick Start Guide Instructions.indd 9 10/06/2020 16:56 10/06/2020 16:56...
  • Page 10 1. Ensure all vehicle accessories are switched ON e.g. lights, heater, demister 2. Rev the engine to 2000rpm, press ENTER then  hold revs for 10 seconds 13149 GYT250 Quick Start Guide Instructions.indd 10 13149 GYT250 Quick Start Guide Instructions.indd 10 10/06/2020 16:56 10/06/2020 16:56...
  • Page 11 1. First select Earth Test then press ENTER  The tables below show the acceptable Voltage ranges for 2. Move the GYT250 black clamp from the battery negative terminal (-) to a suitable position on the each type of vehicle and alternator. Any values outside of these ranges will be highlighted in the results.
  • Page 12 (-) to a suitable metal part on the engine. 5. Results can now be printed (see section 7.1) Press ENTER > Analysis 13149 GYT250 Quick Start Guide Instructions.indd 12 13149 GYT250 Quick Start Guide Instructions.indd 12 10/06/2020 16:56 10/06/2020 16:56...
