RUBY HEAT RP-2000 PLUS Instructions Manual page 16

Assembly Parts
No. Description
01 Fixed Ring
02 Screw
03 Foot pad
04 Hex screw
05 Washers
06 Flat washers
07 Screw
08 Fasten panel
09 Screw

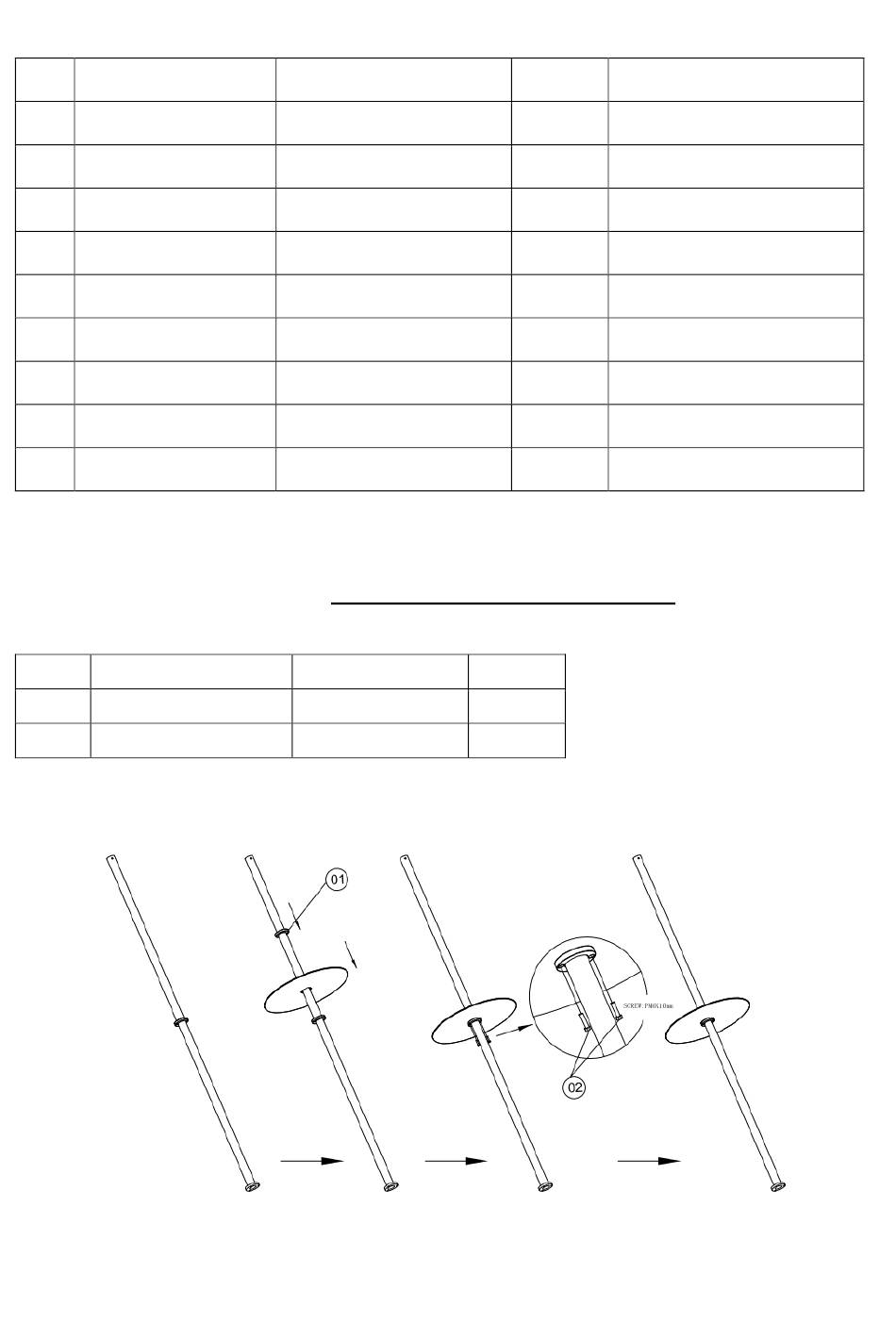

Installation Instruction
1. Pole and table assembly for Standing table heater Installation only
The standing patio heater without table, the pole do not need any assembly
No. Description
01 Fixed Ring
02 Screw
Specification
₵70*T10 mm
PM6*10 mm
M8*15
M6*25 mm
₵6*T1.0 mm
Φ20*₵6.5*T2.0 mm
PM4*16 mm
Plastic
PM5*10 mm
Specification
₵70*T10 mm
PM6*10 mm
16
Quantity
1 For table patio heater only
2 For table patio heater only
5
3
3
3
4
2
2
Quantity
1
2
Remark
