O P E R AT O R ' S S A F ET Y
A N D S E R V I C E M A N U A L
G P 5 8 0 0
This manual covers the following serial numbers
and higher for each model listed:
GP5800.................................5800001
V I B R AT O R Y P L ATE
MBW, Inc.
250 Hartford Rd • PO Box 440
Slinger, WI 53086-0440
Phone: (262) 644-5234
Fax: (262) 644-5169
Email: mbw@mbw.com
Website: www.mbw.com
MBW (UK) Ltd.
Units 2&3 CochraneStreet
Bolton BL3 6BN
England, UK
Phone: 44 (0) 01204 387784
Fax: 44 (0) 01204 387797
E-mail: mbwuk@btinternet.com
MBW FRANCE S.A.R.L.
Phone:+33 (0) 3 44 07 15 96
L20016 / 05.19.G
©MBW, Inc. 2015
Printed in the USA
Advertisement
Table of Contents
Related Manuals for MBW GP5800H
Summary of Contents for MBW GP5800H
- Page 1 GP5800.........5800001 V I B R AT O R Y P L ATE MBW, Inc. MBW (UK) Ltd. MBW FRANCE S.A.R.L. 250 Hartford Rd • PO Box 440 Units 2&3 CochraneStreet Phone:+33 (0) 3 44 07 15 96...
- Page 2 WARNING Operating, servicing and maintaining this equipment can expose you to chemicals, including engine exhaust, phthalates and lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. Avoid breathing engine exhaust. Do not operate equipment in confined areas. www.P65Warnings.ca.gov For more information go to 21820...
-
Page 3: Specifications

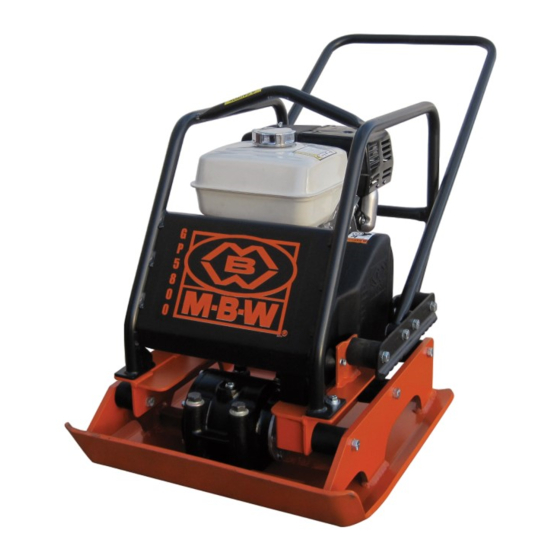

S P E C I F I C ATI O N S GP5800H Centrifugal Force 5800 lbf (25.8 kN) Exciter Speed 4800 vpm Travel Speed 130 ft./min. (39.6 m/min.) Compaction Depth 20 in (51 cm) Plate Size (W x L) -
Page 4: Exciter Assembly
Exciter Assembly - 12 -... - Page 5 ITEM PART NO. DESCRIPTION 00001 EXCITER HOUSING 00066 FILTER RETAINER 00259 SHIM, EXCITER (AS REQUIRED) 01000 RETAINING RING, INTERNAL 01072 FILTER, FELT 01107 SHAFT SEAL 05559 PLUG, PLASTIC 07456 ROLLER BEARING 07458 SPERICAL ROLLER BEARING 07469 RETAINING RING, EXTERNAL 14993 WASHER, COUNTERSUNK 18700 HEX HEAD CAP SCREW, 5/8-11 x 6”LG.
-
Page 6: Engine Assembly
Engine Assembly - 14 -... - Page 7 ITEM PART NO. DESCRIPTION 00808 SHAFT KEY, 1/4” SQUARE X 1-3/4” lg. 01011 SHOCK MOUNT 05881 V-BELT, A37 12968 ENGINE MOUNTING BAR 14992 WASHER, COUNTERSUNK 15674 HONDA ENGINE, GX270 19127 CLUTCH, CENTRIFUGAL 19136 SHAFT SPACER 19994 ENGINE DECK ASSEMBLY F061616HCS HEX HEAD CAP SCREW, 3/8-16 x 2”...
-
Page 8: Roll Cage Assembly
Roll Cage Assembly - 16 -... - Page 9 ITEM PART NO. DESCRIPTION 01019 HANDLE BUSHING, INNER 15830 HANDLE ATTACHMENT NUT 16191 HANDLE BUSHING, OUTER 16189 SHOCKMOUNT 21665 KIT, LIFT HANDLE 16908 SHOCK MOUNT, HANDLE 19999 ROL CAGE, 5800 20009 BELT GUARD 20010 HANDEL ASSEMBLY (Includes items #1 & #3) F051806FWS FLANGE HEAD LOCK SCREW, 5/16-18 x 3/4”...
