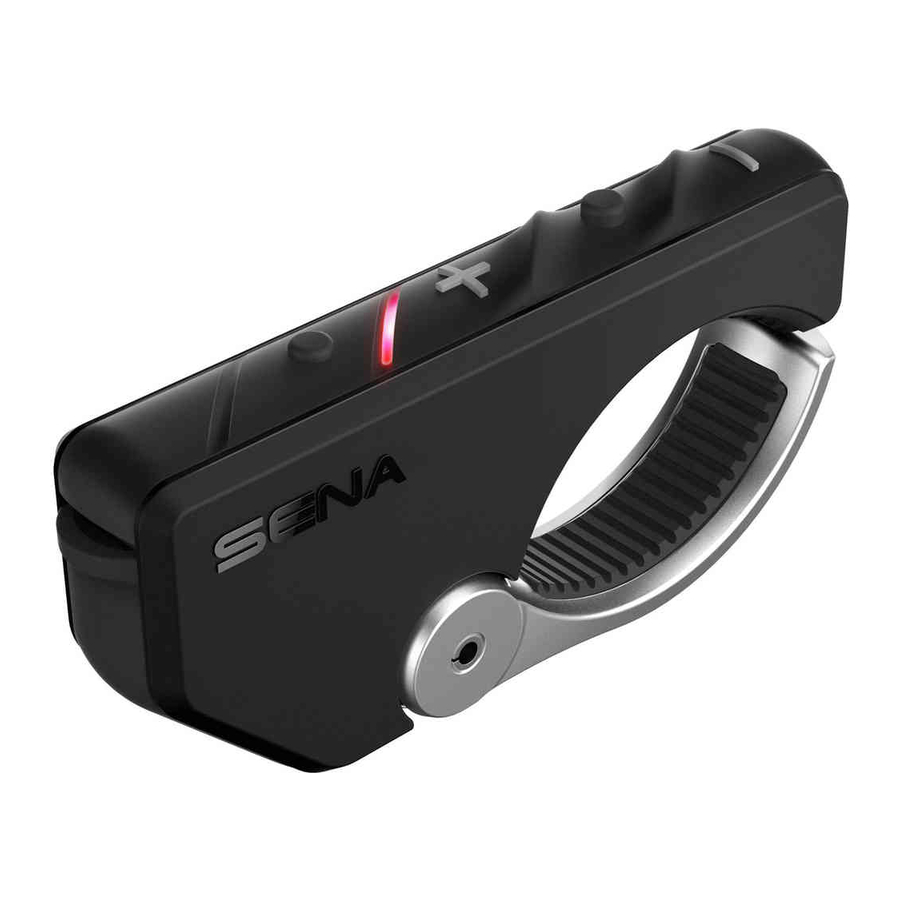

Sena RC4 Manual
- Quick start manual (2 pages) ,
- Operation (2 pages) ,
- Quick start manual (4 pages)
Advertisement
- 1 Introduction
- 2 Getting Started
- 3 Installation
- 4 Replacing the Battery
- 5 Button Operation
- 6 Power On/Off
- 7 Battery Check
- 8 Bluetooth Pairing
- 9 Factory Reset
- 10 Headset Control
- 11 RC4 Remote Control Operation for Headset
- 12 RC4 Multifunction Button Operation for Headset
- 13 Videos
- 14 Documents / Resources
Introduction
Getting Started
Remove the plastic tape from the battery slot to begin using the RC4.
Installation
NOTE:
If your handlebar requires better grip for holding the RC4 in place, apply the rubber band around the handlebar.
Replacing the Battery
Button Operation
 |
Tapping |
 |
Double Tapping |
 |
Press for 1 sec |
Power On/Off
Power On
Deep Sleep
Battery Check
Bluetooth Pairing
NOTE:
- You can control the headset using the RC4 only after you pair them together.
- The RC4 supports Sena headsets with Bluetooth 4.1 or higher.
Factory Reset
Headset Control
To control your headset using the RC4, please refer to the Quick Reference Guide for button operations on functions such as phone, music, and intercom.
NOTE:
The Multifunction Button remotely controls special buttons such as the Ambient Mode Button of the 20S and the Camera Button of the 10C. Please refer to the Quick Reference Guide for more details.
RC4 Remote Control Operation for Headset
| Type | Operation | Button Command |
| Basic Operation |
Volume adjustment | Tap the (+) Button or the (-) Button |
| Configuration menu | Press the Center Button for 10 seconds | |
Mobile Phone |
Answer phone call | Tap the Center Button |
| End phone call | Press the Center Button for 2 seconds | |
| Voice dial | Press the Center Button for 3 seconds | |
| Speed dial | Press the (+) Button for 3 seconds | |
| Reject incoming call | Press the Center Button for 2 seconds | |
| Intercom |
Intercom pairing | Press the Center Button for 5 seconds |
| Tap the Center Button of any one of the two Remotes | ||
| Start/end each intercom | Tap the Center Button | |
| Start Group Intercom | Tap the (+) Button and the (-) Button | |
| End all intercoms | Press the Center Button for 1 second | |
| Music | Play/pause Bluetooth music | Press the Center Button for 1 second |
| Track forward/ back | Press the (+) Button or the (-) Button for 1 second | |
| FM Radio |
FM radio on/off | Press the (-) Button for 1 second |
| Select preset | Press the Center Button for 1 second | |
| Seek stations | Double tap the (+) Button or the (-) Button | |
| Scan up FM band | Press the (+) Button for 1 second | |
| Stop scanning | Press the (+) Button for 1 second | |
| Save preset while scanning | Tap the Center Button |
RC4 Multifunction Button Operation for Headset
| Product | Operation | Button Command |
| 20S |
Ambient Mode | Double tap the Multifunction Button |
| Voice command | Tap the Multifunction Button | |
| Start Group Intercom | Press the Multifunction Button for 1 second | |
| 10C |
Camera on | Tap the Multifunction Button |
| Camera off | Tap the Multifunction Button and the (-) Button | |
| Start/stop video recording | Press the Multifunction Button for 1 second | |
| Take photo | Tap the Multifunction Button | |
| Enter Video Tagging mode | Press the Multifunction Button for 3 seconds | |
| Start Video Tagging | Press the Multifunction Button for 1 second | |
| Exit Video Tagging mode | Press the Multifunction Button for 3 seconds | |
| Enter camera configuration menu | Press the Multifunction Button for 8 seconds | |
| Exit camera configuration menu | Tap the Multifunction Button | |
| Tufftalk | Ambient Mode | Double tap the Multifunction Button |
| Start Group Intercom | Press the Multifunction Button for 1 second | |
| Others | Start Group Intercom | Press the Multifunction Button for 1 second |
Sena Technologies, Inc.
www.sena.com
Customer Support: support.sena.com
E-mail: support@sena.com
VideosSena RC4 Remote Control - Easy Install and Review Video
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
