INSTALLATION AND MAINTENANCE INSTRUCTIONS
R-10TA/R-20TA/R-14TA/R-24TA
Multi Voltage Relay

Specifications

Operating Voltage:
Operating Current (R-10TA/R14TA):
Operating Current (R-20TA/R-24TA):
Operating Temperature:
Humidity Range:
Dimensions:
Accessories:
Contact Ratings:
Notice: This manual should be left with the owner/user of this equipment.

General Description

Models R-10TA/R-20TA and R-14TA/R-24TA are multi voltage
relays with terminal strip field wiring connections, mounting
track and hardware. The R-10TA is a single 1 FORM C (SPDT)
relay with a red LED and the R-14TA is a 4-gang 1 FORM C
NC
18-35VDC, 18-35VAC, 115VAC, 230VAC
23mA DC @ 24V, 59mA AC @ 24VAC; 150mA AC @ 120VAC, 180mA AC @ 240VAC
40mA DC @ 24V, 92mA AC @ 24VAC; 220 mA AC @ 120VAC, 260mA AC @ 240VAC
–40°F to 158°F (–40°C to 70°C)
10% – 85% non-condensing
R-10TA/R-20TA: 3.5"H × 2.5"W × 1.25"D (89 mm H × 64 mm W × 32 mm D)
R-14TA/R-24TA: 3.5"H × 10"W × 1.25"D (89 mm H × 254 mm W × 32 mm D)
R-10TA/R-20TA – 2 mounting screws; R-14TA/R-24TA – 4 mounting screws
24VDC 7A
120VAC 10A
120VAC 1 / HP
6
230VAC 7A
C NO
18-35 V
115 V
230 V
0V Not used
18-35 VDC, 18-35VAC, 115VAC, 230VAC

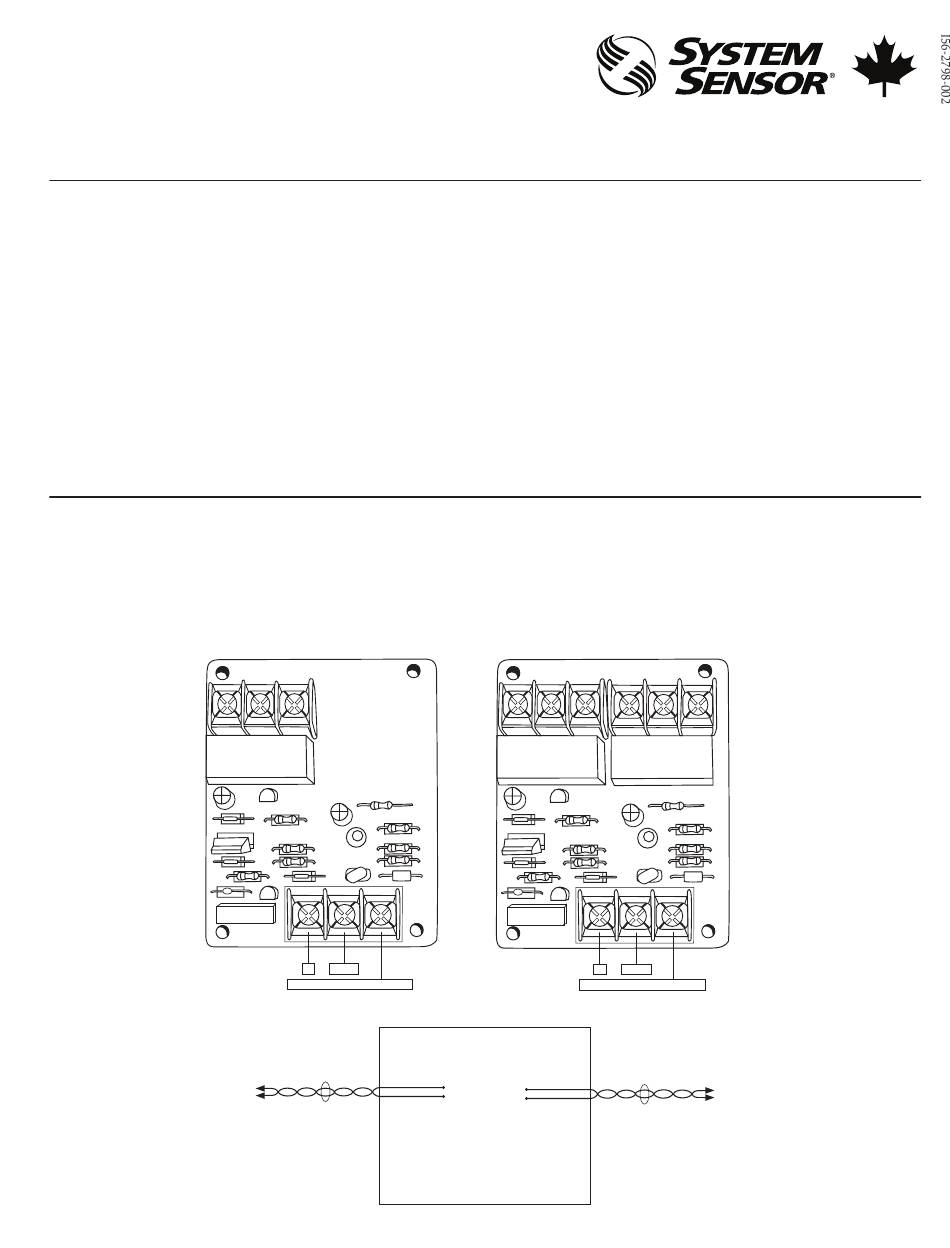

C0567-01
R-10TA/R14TA Relay
Non-Power
Limited
+
–
3333 Unity Drive, Mississauga, Ontario L5L 3S6
(SPDT) relay with 4 red LEDs. The R-20TA is a single 2 Form C
(DPDT) relay with a red LED and the R-24TA is a 4-gang 2 Form
C (DPDT) relay with 4 red LEDs. The LEDs indicate the energi-
zation of the Relay Coil.
NC C NO NC C
0V Not used
18-35 VDC, 18-35VAC, 115VAC, 230VAC
R-20TA/R24TA Relay
Power
Limited
1
800/736-7672, Télécopieur : 905-812-0771
www.systemsensor.ca
NO
18-35 V
115 V
230 V
C0527-01
+
–
I56-2798-002
7/2/2019
