System Sensor R-10T Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
R-10T/R-20T/R-14T/R-24T
Multi Voltage Relay

Specifications

Operating Voltage:
Operating Current (R-10T/R14T):
Operating Current (R-20T/R-24T):
Operating Temperature:
Humidity Range:
Dimensions:
Accessories:
Contact Ratings:
Notice: This manual should be left with the owner/user of this equipment.

General Description

Models R-10T/R-20T and R-14T/R-24T are multi voltage re-
lays with terminal strip field wiring connections, mounting
track and hardware. The R-10T is a single 1 FORM C (SPDT)
relay with a red LED and the R-14T is a 4-gang 1 FORM C
NC
D500-81-00
18-35VDC, 18-35VAC, 115VAC, 230VAC
23mA DC @ 18-35VDC, 59mA AC @ 18-35VAC;
150mA AC @ 120VAC, 180mA AC @ 240VAC
40mA DC @ 18-35VDC, 92mA AC @ 18-35VAC;
220 mA AC @ 120VAC, 260mA AC @ 240VAC
–40°F to 158°F (–40°C to 70°C)
10% – 93% RH non-condensing
R-10T/R-20T: 3.5˝H × 2.5˝W × 1.25˝D (89 mm H × 64 mm W × 32 mm D)
R-14T/R-24T: 3.5˝H × 10˝W × 1.25˝D (89 mm H × 254 mm W × 32 mm D)
R-10T/R-20T – 2 mounting screws; R-14T/R-24T – 4 mounting screws
24VDC 7A
120VAC 10A
120VAC 1/6 HP
230VAC 7A
C NO
18-35 V
115 V
230 V
0V Not used
18-35 VDC, 18-35VAC, 115VAC, 230VAC
C0567-01

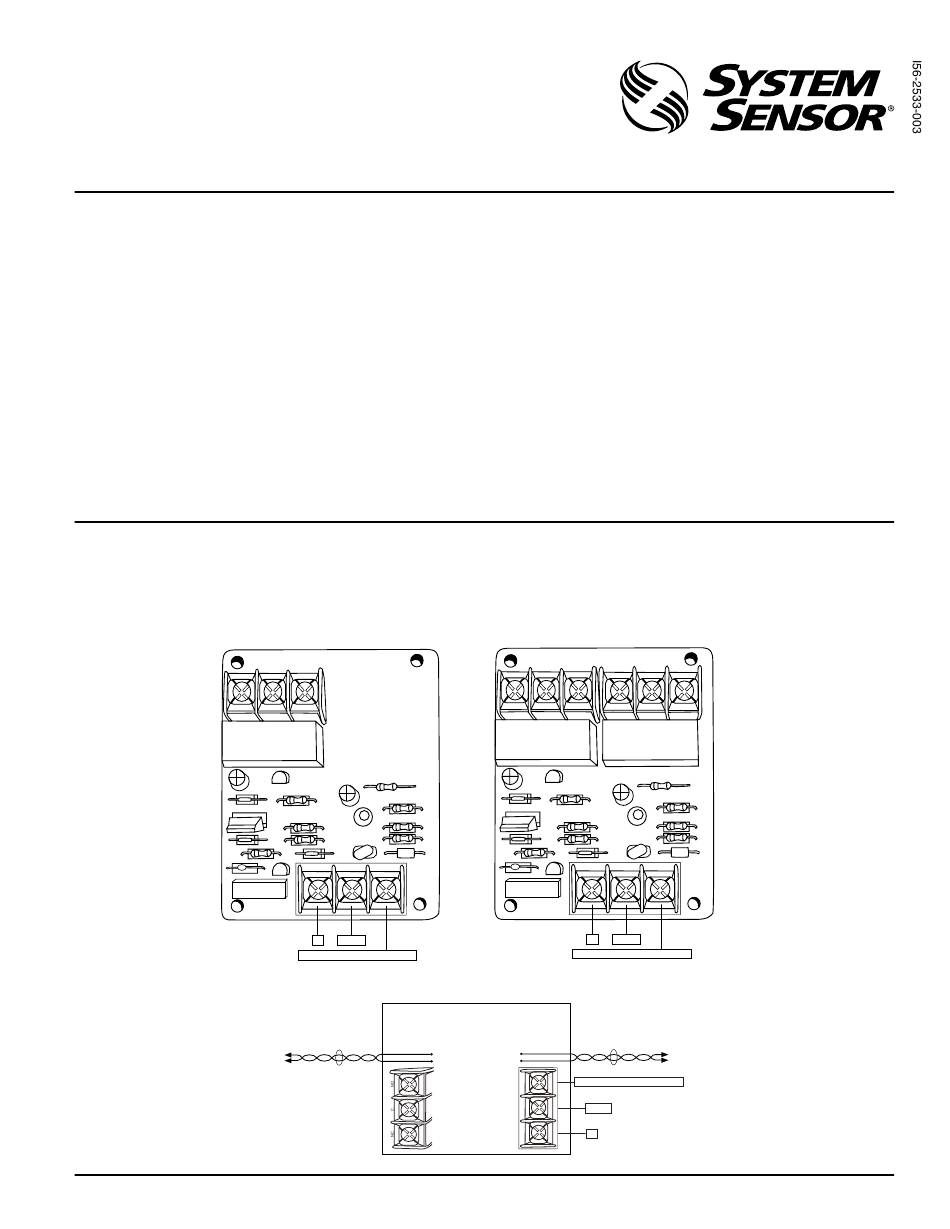

R-10T Relay
Non-Power
Limited
+
–
firealarmresources.com
3825 Ohio Avenue, St. Charles, Illinois 60174
(SPDT) relay with 4 red LEDs. The R-20T is a single 2 Form
C (DPDT) relay with a red LED and the R-24T is a 4-gang 2
Form C (DPDT) relay with 4 red LEDs. The LEDs indicate
the energization of the Relay Coil.
NC C NO NC C
Not used
0V
18-35 VDC, 18-35VAC, 115VAC, 230VAC
R-20T Relay
Power
Limited
+
–
18-35 VDC, 18-35VAC, 115VAC, 230VAC
Not used
0V C0900-00
1
1-800-SENSOR2, FAX: 630-377-6495
www.systemsensor.com
NO
18-35 V
115 V
230 V
C0527-01
I56-2533-003
