mySmartObject IOT-710 Quick Start Manual

1. In brief
1.1 Features
• Low battery alert
• Small and light
• 3 years standby time
• IP66 dust and waterproof
• Remove-alert
• Remote setting
• GPS + LBS location
1.2 Spectifications
Communication GSM
850/900/1800/1900MHZ
Location Accuracy <10 meters
Voice monitoring ≤5 meters
range
Working current 60mA
Standby time 3 years (1 position/day)
Working -20°C to 70°C
temperature
Dimension 80mm(L)*50mm(W)*30mm
(H)
2. Appearance

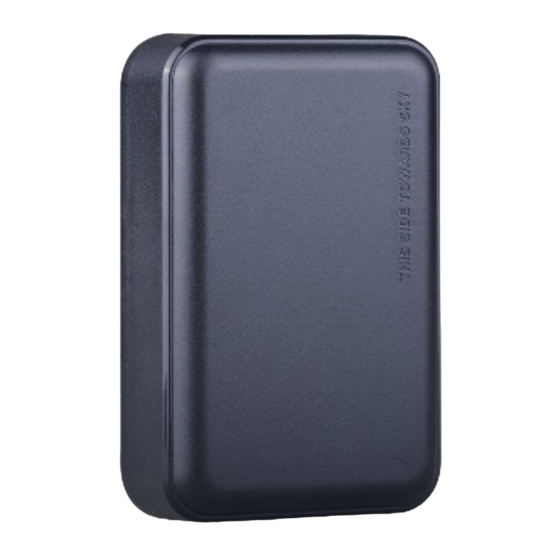

2.1 Device
Set SOS number via APP, GPS tracking platform or SMS
(SMS only valid at tracking mode).
1.SMS command to add SOS number:
SOS,A,number 1,number 2,number 3#
E.g.SOS,A,1351234xxxx,1371234xxxx,1301234xxxx#
2.SMS command to delete SOS number:
2.2 LED display
SOS,D,number sequence 1,number sequence 2, number
sequence 3#
1) Red LED (power status)
3.2 Working mode
Quick flashing Low battery
Slow flashing Normal
Note: When device boots for the first use, there are 3 minutes
No light Power loss or sleep mode
time to set the mode.
2) Blue LED (GPS status)
Quick flashing GPS signal searching
Slow flashing GPS located
No light GPS is not working or sleep
mode
3) Green LED (GSM satus)
Quick flashing GSM initializing
Slow flashing Normal
No light No GSM signal or no SIM or
sleep mode
3. Getting started
3.1 SOS number setting
Eg. SOS,D,1,2,3#
Please confirm your choice before turning the device on. If
you fail to set the mode in this 3-min period, device will enter
into defaulted mode: Ultra-standby mode. In this case device
will wake up and upload location in 24 hours. Any command
to change the mode would be activated in 24 hours.
1)Ultra-standby mode:
In defaulted mode device wakes up once daily to update one
position, then enters into sleep status, during which period
not any query function could be activated. User can set the
sleep period by SMS command:MODE,2,T1,T2# 2 means
ultra-standby mode.T1 means the start time of sleeping
period which format is HH:MM.Defaulted setting is the time
when device boots up. T2 means the sleep time interval
which options are 1, 2, 3, 4, 6, 8, 12, 24 (hours). Defaulted
setting is 24 hours.Note: SMS command takes effect after
device wakes up.E.g.MODE,2,13:00,8# (Meaning: Device
starts to fall asleep at 13:00, and wakes up every 8 hours)
2)Tracking mode:
User can set the working period by APP or tracking platform
or SMS.
MODE,1,T1,T2#
1 means tracking mode.
T1 means the time interval to upload location, ranges from
10-1800 (seconds)
T2 means the working duration, ranges from 5-43200
(minutes)
Note: SMS command takes effect after device wakes up.
E.g.MODE,1,30,5# (Meaning: When device wakes up, it
would work for 5 minutes, during which period, it uploads
locations per 30 seconds.)
MySmartObject®
IOT-710
Quick start guide
www.mysmartobject.com
