MINCO 830/840
Intelligent Controller Manual
GuiLin Minco Electronic Co., Ltd.
GuiLin Glminco Intelligent Control S&T Co., Ltd.
Add: Building B-216, Venture Park of Returned Scholars,
Guilin High-Tech Zone, Guangxi, China
Tel: +86-773-5812281 5828281
Fax: +86-773-5828281
E-mail: sales@glminco.com 360233598@qq.com
Http: //www.glminco.com
www.glminco.cn
Advertisement
Table of Contents
Related Manuals for Minco 830
Summary of Contents for Minco 830

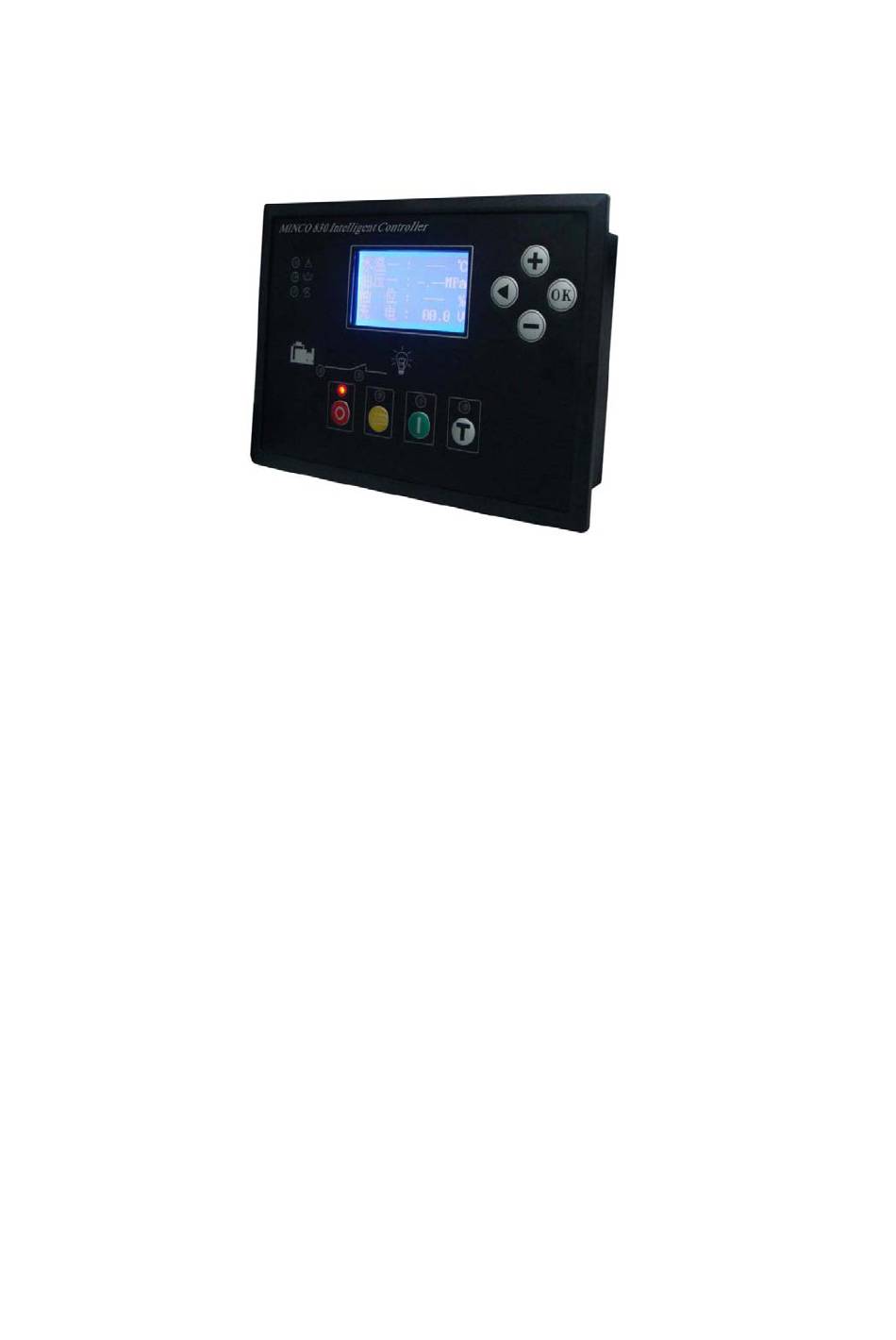

- Page 1 MINCO 830/840 Intelligent Controller Manual GuiLin Minco Electronic Co., Ltd. GuiLin Glminco Intelligent Control S&T Co., Ltd. Add: Building B-216, Venture Park of Returned Scholars, Guilin High-Tech Zone, Guangxi, China Tel: +86-773-5812281 5828281 Fax: +86-773-5828281 E-mail: sales@glminco.com 360233598@qq.com Http: //www.glminco.com...
-
Page 2: Table Of Contents
Contents I、Summarization ................1 II、Characteristics ................1 III、Fixup dimension drawing ............1 IV、Function definition and operate instruction ......2 4.1．Operate panel function instruction........2 (1).System menu operation button........... 2 (2).LCD display ................2 (3).Operation keys............... 3 (4).State indicator light ..............3 4.2．Connection port definition ........... -
Page 3: I、Summarization
Actually meets different types of generator auto control requirements. II、Characteristics Minco830 apply for single generator automatic control system; Based on 830, Minco840 adds mains monitoring, apply for double power automatic control system;. Double processing chip, virtual measurement of voltage and current, multifunction, smart action;... -
Page 4: Function Definition And Operate Instruction
IV、Function definition and operate instruction 4.1．Operate panel function instruction Operate panel is composed of 128*64 LCD display，running operation button, indicator light and system menu operation button. (1).System menu operation button. Content Function Parameter setting/enter to next menu/ confirm to revise Exit / Back to the superior menu Switch the display content, view all the measuring parameters of the generator set and the current state;... -
Page 5: Operation Keys
Note: 1. When “display change mode” set in “auto” switch state, the LCD display screen will switch to next page for each 10 seconds; when “background light control” set in “auto” state, the LCD screen background light will be auto turn off without any operate after three minutes. -
Page 6: Connection Port Definition
Indicate “remote start” port state, used for mains state monitoring 4.2．Connection port definition PortNo. Function Power supply（8～36VDC, normal work current<300mA） “+” battery anode input “-” battery cathode input Analog input（input voltage range 0～5.0VDC） Fuel level sensor Oil pressure sensor 1 Temp. -
Page 7: Parameter Setting
Comm. User-defined output 3 Comm. Excitation/Charge failure input（charge generator input port D＋， forbid connect to GND） Fuel（inversed diode inside） Comm.（Fuel & start contacts comm.） Start（inversed diode inside） Switch input port（add photoelectricity isolator, valid when connect to GND） User-defined input 4 User-defined input 3 User-defined input 2 User-defined input 1... -
Page 8: Parameter Setting Instruction
parameter setting state, to avoid illegimate operation 5.1．Parameter setting instruction Real time display controller input port state Switch Remote start: 0 Remote reset: 0 Emergency stop: 1 input AUX input 1: 0 AUX input 2: 0 AUZ input 3: 0 AUX input 4: 0 status Note: Press any menu key will be exit Real time display controller output port state... - Page 9 reversed display move to the end of right, press back to the superior menu, parameter changed and saved. Note: Unit of frequency:0.01Hz, unit of battery, charging voltage:0.01V, unit of oil pressure:0.01MPa, The rest without a decimal point, unit is 1 Password: 8421(Default password) Genset A phase: 0000 Battery voltage: 0120...
- Page 10 voltage, three phase current, and battery charge voltage. The measurement of controller will increase(reduce) according the increased(decreased) value of adjustment. The scope of adjustment is ±10％. But the calibration of coolant temp., oil pressure and fuel level are different. Special explain, for coolant temp., oil pressure, fuel level sensors maybe positive modulus (It means the sensor output add along with input add), It maybe negative modulus(It means the sensor output minish along with input add).
- Page 11 Password:8421 LCD mode:0 Address:120 Speed source:0 Gear tooth No:135 Start method: 0 Voltage measure method:0 Input set 1:002 Input set 2:001 Input set 3:006 Input set 4 :008 Output set 1:000 Output set 2:006 Press choose content reversed display ； Press back to superior menu；Press enter setting state,...
-
Page 12: System Parameter Description
5.2．System parameter description When start the genset, if examine the genset rotate speed >trip speed, it considers the genset start successful and stop the Trip crank output (trip speed generally setting to 1/3 of genset frequency normal working rotate speed ) CT rate setting correspond ratio is 5, for example the current CT ration rate setting in 500, it’s correspond with 500:5... - Page 13 0 : From Genset power supply frequency Speed 1 : From Speed sensor source Measure 0：Measure phase voltage voltage 1: measure line voltage Method Generator type Auxiliary Output Definition Instruction Shutdown： Any of failure for engine protection stop can bring public failure output; Auxiliary Shutdown：Output is energized when genset stops.
-
Page 14: Delay Time Instruction
Since output and input can be user-defined, Minco 830/840 controller’s input and output function actualized is much more than the real amount of input and output. - Page 15 Delay of pre-fuel has begun before engine starts and relay of Delay of pre-fuel close at the same time., Relay of pre-fuel cutoff after “pre-fuel” delay finish, and engine start to crank. Delay of idle start begin after the engine starts successfully, and Delay of the relay of “idle start”...
-
Page 16: Timing Start Instruction
Delay begins when the frequency exceed the upper limit. When voltage returns to normal during the period of delay, delay will Delay of be interrupted. If the phenomena of over frequency still exists “over after delay finishes, then it will be in an over frequency frequency”... - Page 17 Check the menu of “low oil pressure” in the “input port state”, if display “0”,please check whether the oil pressure sensor is ok; if display “1”,the oil pressure sensor is ok, now please Press the key， the green light is press ,measuring the module port bright on the above...
-
Page 18: Outside Wiring Diagram
VII Outside wiring diagram (Mains connection will be removed on 830) MINCO830/840 REMOTE START REMOTE RESET COOL.TEMP.2 MAINS 220VAC HIGH COOL.TEMP（AUX.INPUT1） OIL PRESS.2 LOW OIL PRESS（AUX.INPUT2） COOL.TEMP.1 AUX.INPUT3 OIL PRESS.1 AUX.INPUT4 OIL TEMP./FUEL LEVEL SPEED SENSOR SPEED STOP（AUX.OUT2） SPEED BUZZE FAILURE（AUX.OUT1）... -
Page 19: Front And Back Panel Diagram
VIII、Front and back panel diagram (Minco 830 and Minco840) - 17 -... - Page 20 - 18 -...
