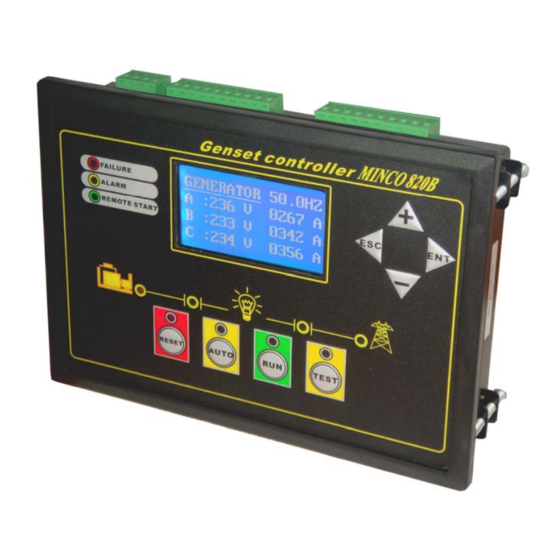

MINCO 820B
Genset Controller Manual
GuiLin Minco Electronic Co., LTD. CHINA
GuiLin Glminco Intelligent Control S&T Co., Ltd.
ADD: Building B-216, Venture park of returned Scholars, Guilin high-tech zone,
GuangXi, CHINA
Tel: +86-773-5812281 5828281
Fax: +86-773-5828281
E-mail: sales@glminco.com xamxiao@hotmail.com
Http: //www.glminco.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 820B and is the answer not in the manual?

Questions and answers

Related Manuals for Minco 820B

Summary of Contents for Minco 820B

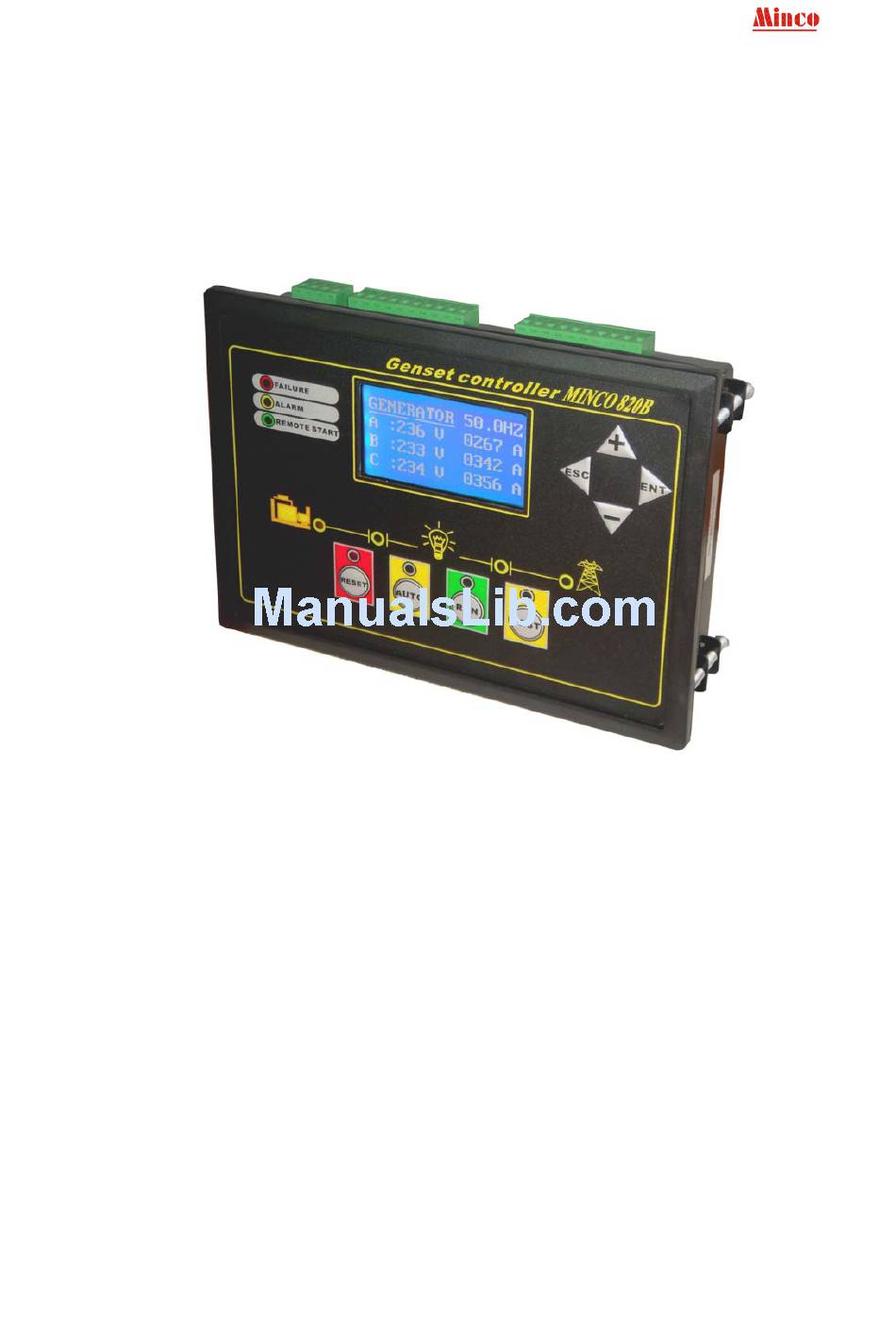

  • Page 1 MINCO 820B Genset Controller Manual GuiLin Minco Electronic Co., LTD. CHINA GuiLin Glminco Intelligent Control S&T Co., Ltd. ADD: Building B-216, Venture park of returned Scholars, Guilin high-tech zone, GuangXi, CHINA Tel: +86-773-5812281 5828281 Fax: +86-773-5828281 E-mail: sales@glminco.com xamxiao@hotmail.com Http: //www.glminco.com...

  • Page 2: Table Of Contents

    Contents 1. Summarize ..............................1 2. Characteristic ..............................1 3. Fixup dimension drawing ...........................1 4. Function define and operate instruction .....................1 4.1．Operate panel function instruction....................1 (1). System menu operate press keys....................2 (2). LCD display （Genset runs in normal，not setting state or not fault state) ......2 (3).

  • Page 3: Summarize

    1. Summarize Minco 820B genset controller adopts high performance microprocessor and industry components. It has measuring, controlling, protection, four remote control, flexible software setting functions and high anti-jamming ability. Can display all the measuring parameters, control parameters and genset running state.

  • Page 4: System Menu Operate Press Keys

    (1). System menu operate press keys Content Function Parameter setting /enter to next menu / confirm to revise Exit Exit / back to the superior menu Switch the screen display content, view all the measuring parameters of the genset and ＋...

  • Page 5: State Indicator Light

    Press the key, when the above red LED keep bright, the controller works in “testing” state. Start the generator in manual, when the generator runs in normal, whatever the mains supply is normal or not.The controller will automaticly close, onload and keep running onloading.

  • Page 6: Parameter Setting

    Idle NO (normal open) Battery positive Not connected DC speed adjust motor negative pole Idle common DC speed adjust motor positive pole Pre-fuel Common port 2(Pre-fuel and fault common contact port) Fault Fuel (stop when ETS) Common port 1(Fuel and Crank common contact port) Crank Switch input port（add photoelectricity insulation，valid when connect to GND）...
  • Page 7 If the error over too much and need to adjust, please read the <MINCO 820B Genset controller adjustment instruction>.

  • Page 8: System Parameter Setting

    ENT back to the superior menu ,data adjustment achieved, parameter change saved. For three phase voltage, three phase current and battery voltage adjustment, enter data adjust state, change the data then press ENT (Current keep two decimal fraction, battery voltage keep one decimal).Coolant temp.. oil pressure,oil temp.,fuel level option input are different, MINCO820B controller provide coolant temp.adjust, oil pressure adjust,oil temp./fuel level adjust to adjust the measuring data.

  • Page 9: Delay Time Instruction

    Gear tooth Only valid in “rotate speed measuring method” setting in “speed sensor” number Setting coolant temp. 2 and oil pressure 2 Opt.2 set 0: None coolant temp. 2 and oil pressure 2 1:Only have coolant temp. 2 2: Only have oil pressure 2 3: Have coolant temp.

  • Page 10: Normal Failure And Handling Method

    Genset start successful and idle (start) over, it’s beginning ACC delay, ACC relay Delay of closed, if the delay ended but still not get the ACC in the right position signal, it will “ACC” be a “ACC failure” alarm. When genset running, if the pressure of oil is over low, the delay is begin. In the term Delay of “low of delay, if the oil pressure comeback normal state, the delay will be interrupt.

  • Page 11: Trip Speed

    Module in Auto Check the menu of “remote start” in the“input state”,if state,inspection “remote the “remote start” display “0” means that the outside timer start” have input, the etc module relay is broken cause didn’t receive the input “remote start” state light signal;If display “1”,the module might be broken.

  • Page 12: Outside Wire Connection Drawing

    7. Outside wire connection drawing Minco820B Outside wire connection drawing(Mechanical speed control) - 10 -...
  • Page 13 Minco820B Outside wire connection drawing ( Electronic governor ) - 11 -...

  • Page 14: Front And Back Panel Contrast Diagram

    8. Front and back panel contrast diagram - 12 -...
