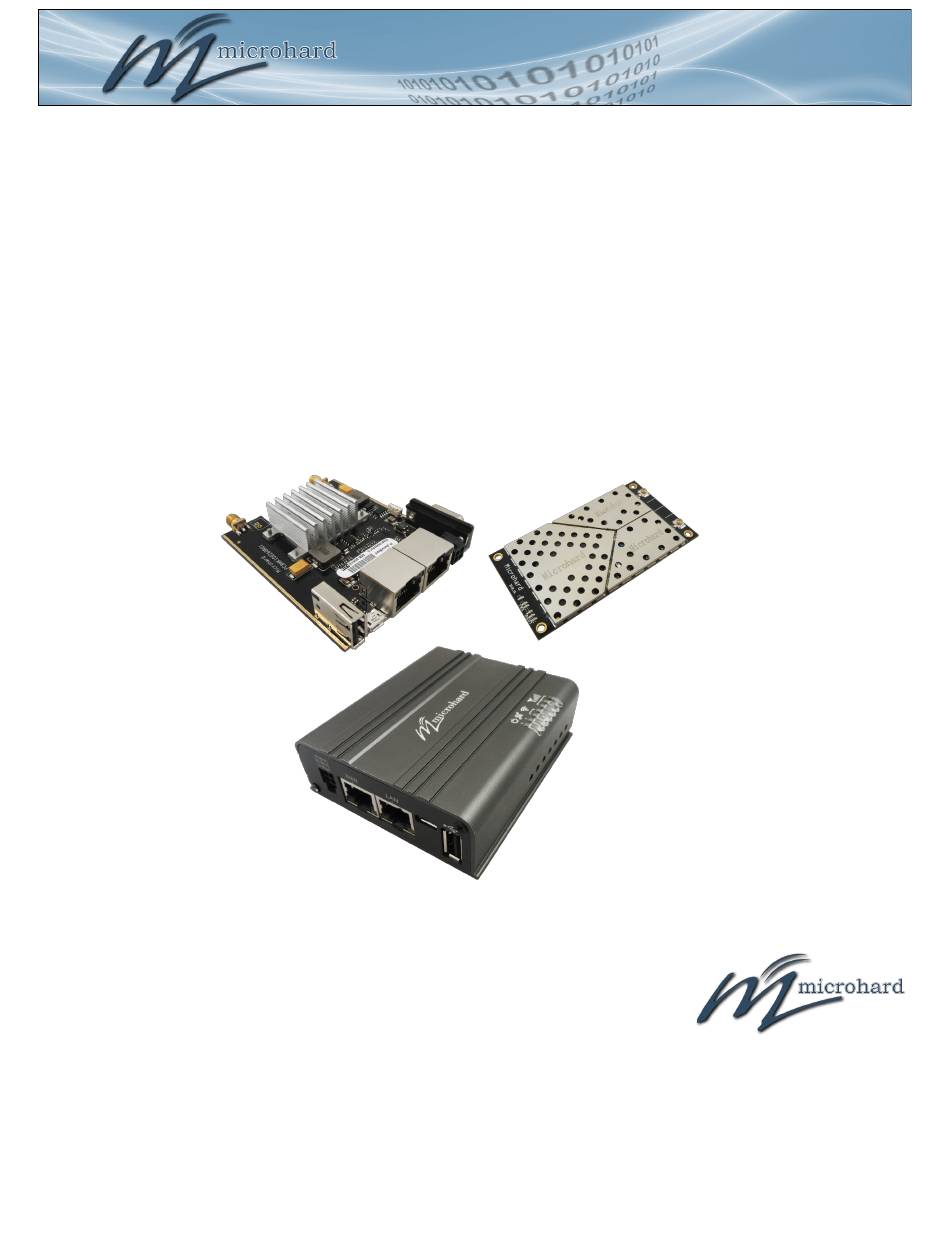

Page 1 Operating Manual pMDDL5824 2x2 MIMO OEM 5.8 & 2.4 GHz Digital Data Link Document: pMDDL5824.Operating Manual.v1.1.0.pdf FW: v1.4.0 Build 1013-13 150 Country Hills Landing NW Calgary, Alberta Canada T3K 5P3 Phone: (403) 248-0028 Toll Free: 1-855-353-0028 www.microhardcorp.com...
Page 2 Important User Information Warranty Microhard Systems Inc. warrants that each product will be free of defects in material and workmanship for a period of one (1) year for its products. The warranty commences on the date the product is shipped by Micro- hard Systems Inc.
Page 3 Important User Information (continued) About This Manual It is assumed that users of the products described herein have either system integration or design experience, as well as an understanding of the fundamentals of radio communications. Throughout this manual you will encounter not only illustrations (that further elaborate on the accompanying text), but also several symbols which you should be attentive to: Caution or Warning Usually advises against some action which could result in undesired or...
Page 4 WARNING: Changes or modifications not expressly approved by Microhard Systems Inc. could void the user’s authority to operate the equipment. This device has been tested with UFL to Reverse Polarity SMA connectors with the antennas listed in Appendix A When integrated in OEM products, fixed antennas require installation preventing end-users from replacing them with non-approved antennas.
Page 5 WARNING: Les changements ou modifications non expressément approuvés par Microhard Systems Inc. pourraient annuler l'autorité de l'utilisateur à utiliser l'équipement . Ce dispositif a été testé avec MCX et connecteurs SMA à polarité inverse sur les antennes répertoriées à l'annexe A Lorsqu'il est intégré...
Page 6 Revision History Revision Description Initials Date 1.0.0 Preliminary Release. Based on Firmware v1.4.0 Build 1013-2 Nov 2018 1.1.0 Updated to firmware 1.4.0 Build 1013-13, Updated pictures, Feb 2019 drawings to reflect hardware changes and enclosure designs. © Microhard...
Page 7: Table Of Contents
3.1.2 PCB PAD Placement (Pad Landing) ................ 24 3.1.3 OEM Pin Descriptions ....................25 3.1.4 USB Device Mode ....................27 3.2 pMDDL5824 Development Board / Enclosed ..............28 3.2.1 Development Board Mechanical Drawings .............. 29 3.2.2 Enclosed Mechanical Drawings ................30 3.2.3 Connectors &...
Page 8 Table of Contents 4.3 Wireless ..........................56 4.3.1 Status ........................56 4.3.2 Radio1 ........................57 Radio On/Off ......................57 Channel Bandwidth ....................58 Radio Channel (Frequency) ..................58 TX Power ........................58 MIMO On/Off ......................58 Operating Mode ......................59 TX Rate ........................
Page 9 Table of Contents 5.0 AT Command Line Interface ................92 5.1 AT Command Overview ....................92 5.1.1 Telnet (TCP/IP) ....................... 92 5.2 AT Command Syntax ....................... 93 5.3 Supported AT Commands ....................94 6.0 Installation ....................... 107 6.1 Path Calculation ....................... 109 6.2 Installation of Antenna System Components ...............
Page 10: Overview
1.0 Overview The pMDDL5824 is a feature rich, high power, 2x2 MIMO Wireless OEM Digital Data Link. The pMDDL5824 is designed to provide high performance wireless capabilities in a compact and rugged OEM module for system integration. The pMDDL5824 features simultaneous dual 10/100 Ethernet &...
Page 11: Specifications
250 - 720 1250 250 - 560 250 - 620 250 - 510 Instantaneous Current Draw 1500 1500 1000 1000 Typical Receive Current Draw 250-720 250 - 560 400 - 460 250 - 510 (mA) Table 1-1: pMDDL5824 Current Consumption © Microhard...
Page 12 1.0 Overview Environmental Operation Temperature: -40 F(-40 C) to 185 F(85 Humidity: 5% to 95% non-condensing Mechanical Dimensions: OEM: 1.25” (32 mm) X 2.25” (57mm) X 0.2” (5 mm) Development Board: 2.75” (70 mm) X 3.25” (83 mm) X 0.0.75 (19 mm) Weight: OEM: Approx.
Page 13: Pmddl5824 Performance
28dBm 64QAM_3/4 24.7 -80.5 28dBm 64QAM_5/6 27.4 27dBm 4 MHz Channel Bandwidth BPSK_1/2 -99.5 30dBm QPSK_1/2 30dBm QPSK_3/4 30dBm 16QAM_1/2 -92.5 30dBm 16QAM_3/4 30dBm 64QAM_2/3 11.3 28dBm 64QAM_3/4 12.5 28dBm 64QAM_5/6 -80.5 27dBm Table 1-2: pMDDL5824 Performance Specifications © Microhard...
Page 14: Quick Start
Connect and/or apply a suitable power source to the unit. Allow the unit to boot ✓ up fully, the CPU LED (Blue) should be on in a solid state ✓ Connect A PC to the port of the pMDDL5824 Dev Board, using an Ethernet Cable. To reset to factory defaults, press and...
Page 15 2.0 Quick Start ✓ The pMDDL5824 will then ask for a Username and Password. Enter the factory defaults listed below. The Factory default login: User name: admin Password: admin The factory default login: Once successfully logged in for the first...
Page 16: Simple Master And Slave (Auto - Using Defaults)
Slave pMDDL5824 CPU LED (Blue) / RSSI LEDS (Green) (On bottom of PCB) The pMDDL5824 will then reset all settings to default values, and set the follow- ✓ ing settings that are required to automatically create a link with a slave: IP Address: 192.168.168.1, Operating Mode: Master...
Page 17: Simple Master And Slave (Manual)
For the best performance it is required to connect the Master to the video source (camera) and the remote to the video receiver. The pMDDL5824 can support Point-to-Multipoint applications and multiple remotes could be used to view the video from multiple locations.
Page 18 2.0 Quick Start 2.3.1 Configuring the Master (Con’t) ✓ Configure the pMDDL5824 as a Master Select Wireless from the top/main navi- gation, and then from the submenu list. In the RF Configuration ensure the Compatibility Mode, Channel Bandwidth Channel- Frequency are set the same on each module.
Page 19: Configuring The Slave/Remote
2.3.2 Configuring the Slave/Remote The following procedure describes the steps required to set up a pMDDL5824 unit as a Slave (S). A Slave provides a single wireless connection (i.e to an Master) and provides a wired connection to a PC or other devices.
Page 20 2.0 Quick Start 2.3.3 Configuring the Slave/Remote (Con’t) ✓ Configure the pMDDL5824 as a Slave Select Wireless from the top/main navigation, and then from the submenu list. In the RF Configuration ensure the Compatibility Mode, Channel Bandwidth Channel- Frequency are set the same on each module.
Page 21: Testing The Connection
2.0 Quick Start 2.3.3 Testing the Connection ✓ Visually check to see if the pMDDL5824 units are communicating. RSSI LED’s represent signal strength, the more LED’s that are illuminated, the stronger the signal. The Wireless > Status window also has a Connection Status sec- tion similar to that seen below: RSSI LED’s that are...
Page 22: Hardware Features
(Contact Microhard Systems for details) Any pMDDL5824 module may be configured as a Master, Remote, Repeater or Mesh Node. This versatility is very convenient from a ’sparing’ perspective, as well for convenience in becoming familiar and proficient with using the module: if you are familiar with one unit, you will be familiar with all units.
Page 25: Oem Pin Descriptions
RSSI1 heat dissipation including a CPU_LED heat sink in any designs that integrate the pMDDL5824 CONFIG OEM module. TX P0 TX N0 RX N0 RX P0 ETH BIAS Drawing 3-5: pMDDL5824 100-pin OEM Connection Info (Top View) © Microhard...
Page 26 Ethernet Port 0 (LAN) Transmit Pair Caution: During power up TX_P0 or reset, output pins from the pMDDL5824 are in an TX_P4 unknown state. It is advised Ethernet Port 4 (WAN) Transmit Pair to use pull up or pull down TX_N4 resisters as appropriate.
Page 27: Usb Device Mode
Composite Drivers can be installed on a USB Host to provide Ethernet and Serial functionality to the USB port on the pMDDL5824. To enable USB Device mode, Pin 72 must be connected to GND through a 1K resistor as shown below: 1 kΩ...
Page 28: Pmddl5824 Development Board / Enclosed
The pMDDL5824 Motherboard/Development board provides a platform in which to test and evaluate the operation of the pMDDL5824 without the need to design a custom interface PCB right from the start. The pMDDL5824 motherboard to be plugged in and provides standard interfaces/indicators for:...
Page 29: Development Board Mechanical Drawings
3.0 Hardware Features 3.2.1 pMDDL5824 Development Board Mechanical Drawings © Microhard...
Page 31: Connectors & Indicators
The pMDDL5824 Development Board uses SMA Female connectors, short jumpers are required between the OEM modules and the Antenna Ports. Ensure proper orientation to prevent damage to the pMDDL5824 module and to the development board. ANT1 and ANT2 are marked on the pMDDL5824 modules.
Page 32 3.0 Hardware Features Config Button: The Config button on the pMDDL5824 can be used to either reset the modem into its factory default configuration, or it can be used to perform a firmware recovery procedure. Factory Default Settings: While power is applied and the pMDDL5824 in an operational state, press and hold the Config Button for more than 10 seconds to reset to a factory default Master, alternatively hold the button for 5 seconds for a factory default Slave.
Page 33: Configuration
IP Address on your PC to match the default subnet or if your PC is configured for settings: DHCP, simply connect a PC to the LAN port of the pMDDL5824 and it will be assigned a IP address IP: 192.168.168.1 automatically.
Page 34: Logon Window
Password. Do not FORGET the new password as it cannot be recovered. Image 4-0-3: Logon Window : Password Entry After successfully logging into the pMDDL5824 for the first time, you will be forced, and prompted to change the admin password. © Microhard...
Page 35: System
4.1.1 System > Summary The System Summary screen is displayed immediately after initial login, showing a summary and status of all the functions of the pMDDL5824 in a single display. This information includes System Status, LAN/WAN network information, version info, Radio Status etc.
Page 36: Settings
Console Timeout, System Log server and System Time settings. Image 4-1-2: System Settings > System Settings Host Name The Host Name is a convenient identifier for a specific pMDDL5824 Values (characters) unit. This feature is most used when accessing units remotely: a convenient cross-reference for the unit’s WAN IP address.
Page 37: Date/Time
Time Settings The pMDDL5824 can be set to use a local time source, thus keeping time on its own, or it can be configured to synchronize the date and time via a NTP Server. The options and menus available will change depending on the current setting of the Date and Time Setting Mode, as seen below.
Page 38 (yyyy-mm-dd) The calendar date may be entered in this field. Note that the entered Values value is lost should the pMDDL5824 lose power for some reason. 2016-01-12 (varies) Time The time may be entered in this field. Note that the entered value is...
Page 39: Services
4.0 Configuration 4.1.3 System > Services Certain services in the pMDDL5824 can be disabled or enabled for either security considerations or resource/power considerations. The Enable/Disable options are applied after a reboot and will take affect after each start up. Image 4-1-4: System > Services...
Page 40: Maintenance
This can take several minutes. (no default) Reset to Default Configurations The pMDDL5824 may be set back to factory defaults by using the Reset to Default option under System > Maintenance > Reset to Default. *Caution* - All configuration settings will be lost!!! Additionally you can select the “Wipeout data and logs”...
Page 41: Backup & Restore Configurations
Security for Configurations / Backup & Restore Configuration The configuration of the pMDDL5824 can be backed up to a file at any time using the Backup Configuration feature. The file can the be restored using the Restore Configuration feature. It is always a good idea to backup any configurations in case of unit replacement.
Page 42: Reboot
4.0 Configuration 4.1.5 System > Reboot The pMDDL5824 can be remotely rebooted using the System > Reboot menu. As seen below a button ‘Reboot Now’ is provided. Once pressed, the unit immediately reboots and starts its boot up procedure. An automatic Scheduled Reboot (up to 3) can also be configured to force the pMDDL5824 to reboot daily, weekly or monthly.
Page 43: Network
4.0 Configuration 4.2 Network 4.2.1 Network > Status The Network Summary display gives a overview of the currently configured network interfaces including the Connection Type (Static/DHCP), IP Address, Net Mask, Default Gateway, DNS, and IPv4 Routing Table. Image 4-2-1: Network > Network Status ©...
Page 44: Lan
LAN Port Configuration The LAN Ethernet port(s) on the pMDDL5824 are for connection of devices on a local network. By default, this port has a static IP Address. It also, by default is running a DHCP server to provide IP Addresses to devices that are connected to the physical LAN port (directly or via a switch).
Page 45 Enable or disable IGMP snooping on the pMDDL5824. IGMP Values (selection) snooping is the process of listening to Internet Group Management Protocol traffic. This allows the pMDDL5824 to listen in on the IGMP conversations between network devices. The pMDDL5824 then The factory default maintains a map of which links need which IP multicast streams.
Page 46: Lan Dhcp
Ethernet LAN ports, as well as any devices that are connected by Wireless will be assigned an IP by the pMDDL5824. The LAN DHCP service is available for each interface, and is located in the add/ edit interface menus.
Page 47 4.0 Configuration Preferred DNS Server Specify a preferred DNS server address to be assigned to DHCP Values (IP Address) devices. DNS: Domain Name Service (IP Address) is an Internet service that translates easily- remembered domain names Alternate DNS Server into their not-so-easily- remembered IP addresses.
Page 48: Wan
4.2.3 Network > WAN WAN Configuration The WAN configuration refers to the wired WAN connection on the pMDDL5824. The WAN port can be used to connect the pMDDL5824 to other networks, the internet and/or other network resources. Image 4-2-6: Network > WAN Configuration...
Page 49 4.0 Configuration Default Gateway If the pMDDL5824 is integrated into a network which has a defined Values (IP Address) gateway, then, as with other hosts on the network, this gateway’s IP address will be entered into this field. If there is a DHCP server on the...
Page 50: Usb
Ethernet and serial functions (USB to Ethernet Adapters, USB to Serial Converters). Alternatively, the pMDDL5824 can be set to Device mode by pulling PIN 72 (on OEM module) low through an 1k resistor to switch the USB mode. In USB device mode, there are two functions supported, RNDIS/ CDC Ethernet and CDC Serial port, when connected a host machine (PC etc).
Page 51: Dhcp (Mac Binding)
For configuration of the LAN DHCP Service see Network > LAN > (Edit) > LAN DHCP. Image 4-2-8: Network > DHCP Static Addresses Displays the MAC Binding table that is configured in the pMDDL5824 device. Active DHCP Leases Displays the active DHCP leases for any IP Addresses that have been assigned. This includes the IP address, the MAC, Device Name as well as the lease expiry.
Page 52: Routes
Static Routes Configuration It may be desirable to have devices on different subnets to be able to talk to one another. This can be accomplished by specifying a static route, telling the pMDDL5824 where to send data. Image 4-2-9: Network > Routes...
Page 53 4.0 Configuration Metric In some cases there may be multiple routes to reach a destination. Values (Integer) The Metric can be set to give certain routes priority, the lower the metric is, the better the route. The more hops it takes to get to a destination, the higher the metric.
Page 54: Ports
The Network > Ports menu can be used to determine the characteristics of the physical Ethernet interfaces on the pMDDL5824. As seen below the Mode (Auto/Manual), Auto-Negotiation, Speed (10/100Mbit/s) and the Duplex (Full/Half) can all be configured on the pMDDL5824.
Page 55: Device List
4.0 Configuration 4.2.8 Network > Device List The Network > Device List shows the current ARP table for the local network adapter. The MAC address and IP address are shown, however not only DHCP assigned devices are listed in the device list, any devices, even those statically assigned, that are connected through the local network interface (s) are displayed, including those connected through a hub or switch.
Page 56: Wireless
Traffic Status shows statistics about the transmitted and received data. The pMDDL5824 shows information about all Wireless connections in the Connection Info section. The MAC address, TX & RX Modulation, Signal to Noise ratio (SNR), Signal Strength (RSSI), and a graphical representation of the signal level or quality, as well as a RSSI Graph Link.
Page 57: Radio1
Wireless connections can not be made. The default is On. On / Off Radio Band The pMDDL5824 is a dual frequency modem that can operate in the Values (selection) 5.8 GHz RF band OR the 2.4 GHz band. Use this field to toggle which mode is currently in use.
Page 58: Radio Channel (Frequency)
10 dBm 23 dBm 11 dBm 24 dBm TX Power reflects the Total RF power for the pMDDL5824. In MIMO 12 dBm 25 dBm mode this means that the total RF power is split between antenna 13 dBm 26 dBm interfaces.
Page 59: Operating Mode
4.0 Configuration Operation Mode Values (selection) Master - A Master may provide a wireless data connection to many slaves/remotes. Master Slave/Remote - A Salve may sustain one wireless connection, Slave i.e. to an Master. Repeater Mesh Repeater - A Repeater may provide a wireless connection to a Master/Repeater and many remotes.
Page 60: Tx Rate
16-QAM 1/2 FEC 16-QAM 3/4 FEC 64-QAM 2/3 FEC Network ID / Mesh ID Each network of pMDDL5824 modules must an a unique Network ID. Values This Network ID must be set in each unit on the network. pMDDL When configured to operate as a Mesh Network, this becomes the Mesh ID and must be specified on every unit to participate.
Page 61 Encryption Key This is the password, or preshared key that is required by any device Values (string) to connect to the wireless interface of the pMDDL5824. It is strongly recommended to always have a password defined, and changed from 1234567890 the factory default.
Page 62: Firewall
4.0 Configuration 4.4 Firewall 4.4.1 Firewall > Summary The Firewall Summary allows a user to see detailed information about how the firewall is operating. The All, Filter, Nat, Raw, and Mangle options can be used to view different aspects of the firewall. Image 4-4-1: Firewall >...
Page 63: General
The Firewall can also be reset to factory defaults from this area of the WebUI. Image 4-4-2: Firewall > General WAN Remote Management Allow remote management of the pMDDL5824 on the WAN side using the Values WebUI on port 80(HTTP), and 443 (HTTPS). If disabled, the configuration can only be accessed from the LAN.
Page 64: Port Forwarding
The pMDDL5824 can be used to provide remote access to connected devices. To access these devices a user must define how incoming traffic is handled by the pMDDL5824. If all incoming traffic is intended for a specific connected device, DMZ could be used to simplify the process, as all incoming traffic can be directed towards a specific IP address.
Page 65 (none) Internal Server IP Enter the IP address of the intended internal (i.e. on LAN side of the Values (IP Address) pMDDL5824) server. This is the IP address of the device you are forwarding traffic to. 192.168.2.1 Internal Port Target port number of the internal server on the LAN IP entered above.
Page 66: Mac-Ip List
MAC List configuration can be used to control which physical LAN devices can access the ports on the pMDDL5824, by restricting or allowing connections based on the MAC address. IP List configuration can be used to define who or what can access the pMDDL5824, by restricting or allowing connections based on the IP Address/Subnet.
Page 67 4.0 Configuration Firewall MAC List Configuration (Continued) Action The Action is used to define how the rule handles the connection request. Values (selection) ACCEPT will allow a connection, while REJECT (error) and DROP (quietly ACCEPT dropped), will refuse connections. DROP REJECT Firewall IP List Configuration Rule Name...
Page 68: Rules
4.0 Configuration 4.4.5 Firewall > Rules The Rules configuration can be used to define specific rules on how local and remote devices access different ports and services. MAC List and IP List are used for general access, and are applied before rules are processed.
Page 69 4.0 Configuration Source Select the zone which is to be the source of the data traffic. The LAN/WAN Values refers to local connections on the pMDDL5824. LAN/WAN/Independent LAN/ USB/Any Source IPs Match incoming traffic from the specified source IP range. Boxes accept Values (IP Address) single IP Addresses without network masks, example: 192.168.1.0 to...
Page 70: Default
4.0 Configuration 4.4.6 Firewall > Default The firewall can be returned to default setting without requiring the entire modem to be reset to defaults. It is recommended to restart the modem once changes to the firewall or a reset is performed. Image 4-4-6: Firewall >...
Page 71: Serial
The Serial > Summary window gives a summary of the on board serial and console data ports. Gadget - If the pMDDL5824 has been set to USB Device mode (Pin 72 connected to GND through a 1K resistor), the Gadget tab will appear and the USB port can be used to connect to a USB host that has the Microhard Composite Drivers installed.
Page 72: Data/Console Port Settings
IP network through TCP, UDP, or multicast; it may also exit the pMDDL5824 network on another pMDDL5824 serial port. The fully-featured Serial Data Port supports RS232 and RS485 as well as full hardware handshaking. The Console port, which can be configured as a Data port supports basic RS232 operations.
Page 73: Data Baud Rate
4.0 Configuration Port Status Values (selection) Select operational status of the Serial Port. The port is in console mode by default. Data / Console Port Mode Selects the port mode of the data port, not available on the console Values (selection) port (RS232 only).
Page 74 When enabled the data will continue to buffer received on the Values (selection) serial data port when the radio loses synchronization. When disabled the pMDDL5824 will disregard any data received on Disable / Enable the serial data port when radio synchronization is lost.
Page 75: Ip Protocol Config
Default: Disable TCP Server: In this mode, the pMDDL5824 will not INITIATE a session, rather, it will wait for a Client to request a session of it (it’s being the Server—it ‘serves’ a Client). The unit will ‘listen’ on a specific TCP port.
Page 76: Tcp Client/Server
4.0 Configuration IP Protocol Config (Continued…) TCP Client/Server: In this mode, the pMDDL5824 will be a combined TCP Client and Server, meaning that it can both initiate and serve TCP connection (session) requests. Refer to the TCP Client and TCP Server descriptions and settings described previously as all information, combined, is applicable to this mode.
Page 77 4.0 Configuration IP Protocol Config (Continued…) • Remote Port The UDP port associated with the Remote IP Address (above). In the case of this ‘Remote’ being the Master Nano IP Series, the value in this field should match the Listening Port of the Master (see UDP Point-to-Multipoint (P)). Default: 20012 •...
Page 78: Ppp
LCP-echo-failure option to detect that the peer is no longer connected. Default: 0 • PPP Local IP Enter the local PPP IP Address, the IP Address of the pMDDL5824 COM Port. Default: 192.168.0.1 • PPP Host IP Enter the PPP Host IP here.
Page 79: Gadget (Usb - Device Mode)
4.0 Configuration 4.6.3 Serial > Gadget This tab only appears if the pMDDL5824 has been set to operate as a USB Device (Pin 72 connected to GND through a 1k resistor). Microhard USB Serial Composite Drivers are available which allow the pMDDL5824 to appear as a serial device to a USB Host (PC etc.)
Page 80: Diag
4.6.1 Diag > Ping The Network Tools Ping feature provides a tool to test network connectivity from within the pMDDL5824 unit. A user can use the Ping command by entering the IP address or host name of a destination device in the Ping Host Name field, use Count for the number of ping messages to send, and the Packet Size to modify the size of the packets sent.
Page 81: Iperf
The pMDDL5824 features an integrated Iperf server/client to use to measure and analyze throughput of TCP/UDP packets to and/or from the pMDDL5824. Iperf is a 3rd party utility that can be loaded on any PC to measure network performance. For additional information about Iperf, please visit the Iperf website.
Page 82: Usb Tethering
4.0 Configuration 4.6.4 Diag > USB Tethering The pMDDL5824 can be Tethered to certain Android Mobile Devices to view a video stream from a remote video encoder. This is a preliminary feature that has limited support at this time. Contact Microhard for more information.
Page 83: Admin
4.0 Configuration 4.7 Admin 4.7.1 Admin > Users Password Change The Password Change menu allows the password of the user ‘admin’ to be changed. The ‘admin’ username cannot be deleted, but additional users can be defined and deleted as required as seen in the Users menu below.
Page 84 4.0 Configuration Add Users Different users can be set up with customized access to the WebUI. Each menu or tab of the WebUI can be disabled on a per user basis as seen below. Image 4-7-2: Access Control > Users Username Enter the desired username.
Page 85: Snmp
Secure device monitoring over the Internet is possible. In addition to the commands noted as supported above, there is a command to synchronize with a remote management station. The pages that follow describe the different fields required to set up SNMP on the pMDDL5824. MIBS may be requested from Microhard Systems Inc.
Page 86 SNMP queries. Being part of the community allows the SNMP agent to process SNMPv1 and SNMPv2c requests. This community name has private only READ/WRITE priority. Listening Port Enter the UDP port on which the pMDDL5824 listens for incoming Values (UDP Port) SNMP get/set messages. The default is port 161. © Microhard...
Page 87 4.0 Configuration SNMP Version Select the SNMP version used. Only SNMP version 1 & 2 support Values (selection) SNMP traps (See MIB). Version 1 / Version 2 / Version 3 SNMP V3 User Name Values (string) Defines the user name for SNMPv3. V3user V3 User Read Write Limit Defines accessibility of SNMPv3;...
Page 88 4.0 Configuration SNMP Trap Settings Image 4-7-4: Admin > SNMP Trap Settings SNMP Trap Status Values (selection) Enable or disable autonomous SNMP traps from the device. Disable / Enable Trap Community Name Effectively a plain-text password mechanism used to weakly Values (string) authenticate SNMP queries.
Page 89 4.0 Configuration WAN IP Values (selection) Enable or Disable WAN IP Traps. Device will send a trap any time the WAN IP has been changed. Generally used with dynamic IP addresses. Disable / Enable © Microhard...
Page 90: Discovery
20097 Network Discovery The Network discovery tool allows the pMDDL5824 to send a broadcast to all Microhard devices on the same network. Other units on the network will respond to the broadcast and report their MAC address, IP address (With a hyperlink to that units WebUI page), description, firmware version.
Page 91: Logout
4.0 Configuration 4.7.4 Admin > Logout The logout function allows a user to end the current configuration session and prompt for a login screen. Image 4-7-6: Admin > logout © Microhard...
Page 92: At Command Line Interface
5.1.1 Telnet (TCP/IP) Telnet can be used to access the AT Command interface of the pMDDL5824. The default port is TCP Port 23. A telnet session can be made to the unit using any Telnet application (Windows Telnet, Tera Term, ProComm etc).
Page 93: At Command Syntax
5.0 AT Command Line Interface 5.2 AT Command Syntax The follow syntax is used when issuing AT Commands on the pMDDL5824 All commands start with the AT characters and end with the <Enter> key Microhard Specific Commands start with +M Help will list top level commands (ATL will list ALL available AT Commands) To query syntax of a command: AT+<command_name>=?
Page 94: Supported At Commands
5.0 AT Command Line Interface 5.3 Supported AT Commands Basic AT Commands AT Command Description Syntax Effect AT echo OK AT <enter> Immediate ATE0 Disable echo ATE0 <enter> Immediate ATE1 Enabled local echo ATE1 <enter> Immediate Show a list of previously run commands ATH <enter>...
Page 95 5.0 AT Command Line Interface Administrative AT Commands (Continued) AT Command Description Syntax Effect AT+MASNMPTRAP Get/Set SNMP Trap AT+MASNMPTRAP[=<Mode>[,<Name>,<IP>[,<AuthFailureTraps>]] AT&W <Mode>: 0 - Disable 1 - Enable <Name>: Trap Community Name. 1 to 32 characters <IP>: Trap Manage Host IP. Default 0.0.0.0 (Disable) <AuthFailureTraps>: 0 - Disable 1 - Enable...
Page 96 5.0 AT Command Line Interface Serial Port AT Commands (Continued) AT Command Description Syntax Effect AT+MCIPM2 Get/Set Serial port IP protocol mode AT+MCIPM2=<IP Protocol Config> AT&W Parameters: COM2 IP Protocol Config: 0 - TCP Client 1 - TCP Server 2 - TCP Client/Server 3 - UDP Point to Point 4 - UDP Point to Multipoint(P) 5 - UDP Point to Multipoint(MP)
Page 97 5.0 AT Command Line Interface Firewall AT Commands AT Command Description Syntax Effect AT+MFGEN Get/Set firewall general configuration AT+MFGEN[=<Config>[,<Mode>]] AT&W Parameters Config : 0 - WAN Remote Management 1 - WAN Request 2 - LAN to WAN Access Control 3 - Anti-Spoof 4 - Packet Normalization Mode : 0 - Disable (Block) 1 - Enable (Allow)
Page 98 5.0 AT Command Line Interface Firewall AT Commands (Continued) AT Command Description Syntax Effect AT+MFRULE Get/Set firewall rule AT+MFRULE[=<Name>[,<Operation>[,<Action>,<Source>,<Src IP Format>,<Src IP From/Subnet AT&W >, <Src IP To/Prefix>, <Destination>,<Dest IP Format>,<Dest IP From/Subnet>,<Dest IP To/ Prefix>, <Dest Port>,<Protocol>]]] Parameters: Name : Name of firewall rule name, 1 - 64 characters Operation : ADD - Add a firewall rule...
Page 99 5.0 AT Command Line Interface Network AT Commands (Continued) AT Command Description Syntax Effect AT+MNLANSTP Get/Set the network LAN inetrafce: Spanning AT+MNLANSTP=<LAN Name>[,<STP>] AT&W Tree (STP) Parameters: LAN Name : Name of Network LAN interface Spanning Tree : 0 - Off 1 - On AT+MNLANIGMP Get/Set the network LAN interface: IGMP Snoop-...
Page 100 5.0 AT Command Line Interface Network AT Commands (Continued) AT Command Description Syntax Effect AT+MNIPMAC Show/Add/Delete/Release/ReleaseAll the MAC-IP AT+MNIPMAC[=<Operation>[,<Name>[,<IP Address>,<MAC Address>]]] AT&W address binding Usage: AT+MNIPMAC AT+MNIPMAC=SHOW,<Name> AT+MNIPMAC=ADD,<Name>,<IP Address>,<MAC Address> AT+MNIPMAC=DEL,<NAME> AT+MNIPMAC=RELEASE,<NAME> AT+MNIPMAC=RELEASEALL Parameters: Operation : SHOW - Show the details of the MAC-IP address binding ADD - Add a new MAC-IP address binding DEL - Delete an existing MAC-IP address binding RELEASE - Release the active DHCP lease...
Page 101 5.0 AT Command Line Interface Network AT Commands (Continued) AT Command Description Syntax Effect AT+MNUSB Show/Edit the network USB Interface AT+MNUSB[=<Mode>[,<Protocol>[,<IP>,<Netmask>[,<Gateway>]]]] AT&W Usage: AT+MNUSB AT+MNUSB=<Mode>,<Protocol>,<IP>,<Netmask>[,<Gateway>] Where <Mode>=0 and <Protocol>=0 AT+MNUSB=<Mode>,<Protocol> Where <Mode>=0 and <Protocol>=1 AT+MNUSB=<Mode> Where <Mode>=1/2 Parameters: Mode : 0 - Independent LAN 1 - Bridge with LAN Port 2 - Bridge with WAN Port Protocol: 0 - Static IP...
Page 102 Product : pMDDL2458 Image : pMDDL Hardware : Rev A Software : v1.4.0 build 1013-1 Copyright : 2017-2018 Microhard Systems Inc. System Time : Fri Oct 12 14:59:50 2018 AT+MSGMR Get modem Record information AT+MSGMR <enter> Immediate Sample Output: +MSGMR: Hardware Version : Rev A Software Version : v1.4.0 build 1013-1...
Page 103 5.0 AT Command Line Interface Serial USB - AT Commands AT Command Description Syntax Effect AT+MUSBPS Get/Set Serial USB Port Status AT+MUSBPS[=<USB Serial>[,<Mode>]] AT&W Parameters: *Only available when valid USB to Serial Adapter USB Serial : 0 - GS0 is connected* Mode : 0 - Idle 1 - Data...
Page 104 5.0 AT Command Line Interface Serial USB - AT Commands AT Command Description Syntax Effect AT+MUSBTC Get/Set Serial USB port tcp client configuration AT+MUSBTC[=<USB Serial>[,<Remote Server IP>,<Remote Server Port>,<Outgoing timeout> AT&W when IP protocol mode is TCP Client [,<Fast Recovery>]]] Parameters: USB Serial : 0 - GS0...
Page 105 5.0 AT Command Line Interface Wireless (Radio) AT Commands AT Command Description Syntax Effect AT+MWRADIO Get/Set radio status, On or Off AT+MWRADIO[=<Radio>] AT&W <Radio> 0 - Off 1 - On AT+MWDISTANCE Get/Set radio Wireless Distance AT+MWDISTANCE[=<Distance>] AT&W <Distance> 1 - 200000 in meter AT+MWTXPOWER Get/Set radio Tx power AT+MWTXPOWER[=<Tx Power>]...
Page 106 5.0 AT Command Line Interface Wireless (Radio) AT Commands (Continued) AT Command Description Syntax Effect AT+MWVMODE Get/Set radio mode AT+MWVMODE[=<Virtual Interface Mode>] AT&W <Virtual Interface Mode> : 0 - Master 1 - Slave 2 - Repeater 3 - Mesh AT+MWVRATE Get/Set radio TX Rate AT+MWVRATE[=<Virtual Interface TX Rate>] AT&W...
Page 107: Installation
Throughput removal, or maintenance of any The pMDDL5824 is capable of up to 25 Mbps throughput. The network topology has an effect antenna system on how this available throughput is ‘shared’ between all nodes on the network. components must be...
Page 108 Interference The channel selection of the pMDDL5824 often allows it to work well in an environment within which there may be sources of in-band interference. Cavity filters are also available if required: contact Microhard Systems Inc.
Page 109: Path Calculation
6.0 Installation 6.1 Path Calculation Assuming adequate antenna heights, a basic formula to determine if an adequate radio signal path exists (i.e. there is a reasonable fade margin to ensure reliability) is: Fade Margin = System Gain - Path Loss FCC regulations where all values are expressed in dB.
Page 110: Installation Of Antenna System Components
6.0 Installation Distance (km) Master Height (m) Remote Height (m) Path Loss (dB) 116.5 110.9 124.1 117.7 135.3 128.9 116.2 109.6 122.4 128.8 Table 6-1: Path Loss satisfy radio frequency (RF) exposure 6.2 Installation of Antenna System Components requirements mobile transmitting devices, separation distance of 23cm...
Page 111: Antenna Selection, Placement & Orientation
A multipath environment is where the signal from origin to destination may not have a direct path as seen in the illustration below: In a multipath rich conditions is it recommended that each pMDDL5824 end have a pair (2) of omni directional antennas that have at least half-wavelength distance between them. A set of (4) Omni-directional antennas is good for a pair of pMDDL5824 radios.
Page 112: Coaxial Cable
Paging towers and cellular base stations in close prox- To comply with FCC imity to the pMDDL5824’s antenna can desensitize the receiver. Microhard Systems Inc.’s exter- regulations, the maximum nal cavity filter eliminates this problem. The filter has two N-female connectors and should be EIRP must not exceed connected inline at the interface to the RF equipment.
Page 113: Appendices
7. Now use TFTP to push firmware file into the corrupted unit: For example, on Windows 7 using following command line: tftp -i 192.168.1.39 put pMDDL5824-v1_3_0-r1005.bin (use the filename saved). 8. Wait until above command to successfully transferred the image, similar message should show...
Page 115: Appendix C: Serial Port Extension
Appendix C: Serial Port Extension The pMDDL5824 can support a second serial port by utilizing a FT234XD USB to serial UART interfaced to the USB lines of the pMDDL5824. The sample circuit below shows how this is done. Drawing App-D: FTDI USB to Basic UART...
Page 116: Appendix D: Troubleshooting/Faq
Question: How do I reset my modem to factory default settings? Answer: If you are logged into the pMDDL5824 navigate to the System > Maintenance Tab. If you cannot log in, power on the pMDDL5824 and wait until the modem complete the boot up process. Press and hold the Config button for 8 seconds to reset to a factory default Master.
Page 117 150 Country Hills Landing NW Calgary, Alberta Canada T3K 5P3 Phone: (403) 248-0028 Toll Free: 1-855-353-0028 www.microhardcorp.com © Microhard...
