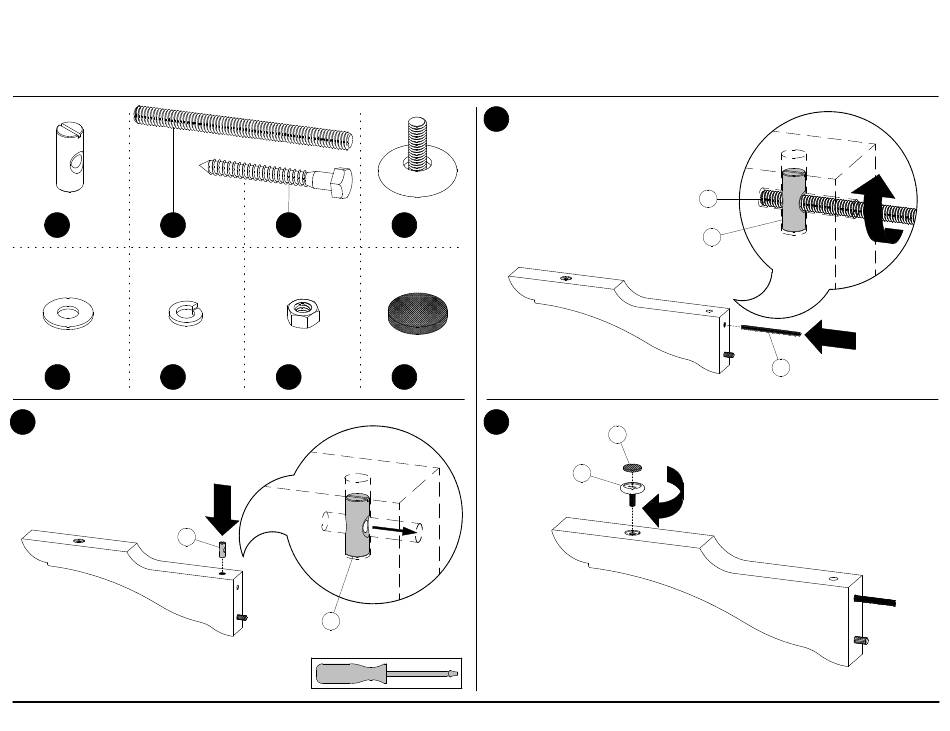

Assembly method for a single pedestal table
Principe d'assemblage d'une table à base simple
Instrucciones de ensamblaje de una mesa con base simple
a
b
4 x
e
f
12 x
1
a
4 x
QUI2SACZ029 | RÉVISION P02 | 2020-06
c
4 x
8 x
g
4 x
4 x
a
2
d
4 x
4 x
h
4 x
3
4 x
b
a
h
d
b
1/4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Canadel Single pedestal table
Summary of Contents for Canadel Single pedestal table
- Page 1 Assembly method for a single pedestal table Principe d'assemblage d'une table à base simple Instrucciones de ensamblaje de una mesa con base simple 12 x QUI2SACZ029 | RÉVISION P02 | 2020-06...
- Page 2 Do not climb on the table. Assembly method for a single pedestal table Risk of serious injury. Ne pas monter sur la table. Principe d'assemblage d'une table à base simple Risque de blessures graves. Instrucciones de ensamblaje de una mesa con base simple No se trepe sobre la mesa.
- Page 3 How to use and adjust the table latch Utilisation et ajustement du loquet de table Utilización y ajuste del pestillo de mesa · Unlock all the latches: · Close the table and lock all the latches: a) Push down the lever so it is vertical. b) Release the triangular bolt from the latch plate. a) Rotate the triangular bolt towards the latch plate.
- Page 4 CHAMPLAIN Maximum charge that leaf can support: Assembly for extension table Charge maximale supportée sur l'extension: Carga máxima soportada por la extensión: Principe d'installation des extensions 50 lb / 22 kg Procedimiento para la instalación de extensiones Repeat step 1 to install the second leaf . Pull the 2 ends of the glides.
