User manual & repair guide
Acknowledgement...................................................P.2
Safety Warnings.........................................................P.2
Related accessories ..............................................P.2
Equipment description..........................................P.2
Technical characteristics........................................P.3
Electrical characteristics.........................................P.3
Description of the markings used.....................P.4
Installation instructions..........................................P.5
Connection...................................................................P.6
Indicators and buttons............................................P.6
Use..................................................................................P.7
Software........................................................................P.7
Terms and conditions.............................................P.10
Warranty terms.........................................................P.10
SCHEIBER
Bellevue, 85120 Saint-Pierre du Chemin
Phone: +33 (0)2 51 51 73 21
L'innovation française depuis 1965

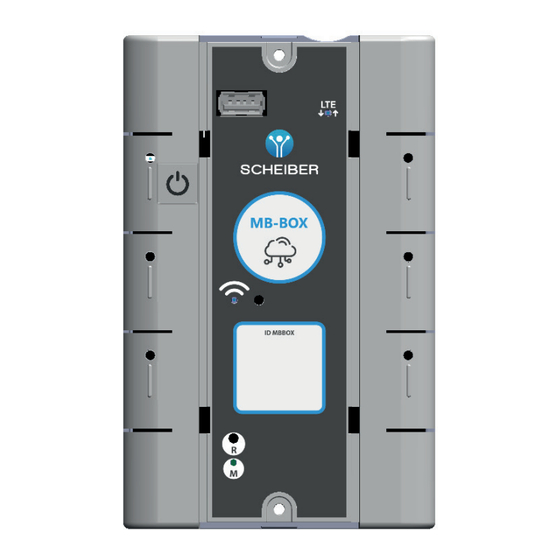

MB-BOX
Ref : 36.159xx.00
•
France
•
clients@scheiber.fr
•
sav@scheiber.fr
•
www.scheiber.fr
Advertisement
Table of Contents
Related Manuals for Scheiber MB-BOX
Summary of Contents for Scheiber MB-BOX
-
Page 1: Table Of Contents
L’innovation française depuis 1965 MB-BOX Ref : 36.159xx.00 User manual & repair guide Acknowledgement...........P.2 Safety Warnings............P.2 Related accessories ..........P.2 Equipment description..........P.2 Technical characteristics........P.3 Electrical characteristics.........P.3 Description of the markings used.....P.4 Installation instructions..........P.5 Connection..............P.6 Indicators and buttons..........P.6 Use..................P.7 Software................P.7 Terms and conditions..........P.10 Warranty terms............P.10... -
Page 2: Acknowledgement
Equipment description The MB-BOX is a complete and scalable solution similar to a home automation box consisting of the physical MB-BOX box and, optionally, dedicated applications. It can be integrated into land vehicles as well as boats, it centralizes all installation data, controls equipment and carries out maintenance operations, all remotely and worldwide thanks to the 'application. -
Page 3: Electrical Characteristics
Characteristics L’innovation française depuis 1965 MB - BOX REFERENCE 36.159xx.00 POWER SUPPLY 9-32 V DC 1 Ethernet port 3 USB ports PERIPHERAL DEVICES 2 independent CAN networks (4 connectors) 1 connector for 2 inputs and 1 output 1 SIM card holder 1.2GHz processor, 8GB eMMC storage, MOTHERBOARD 1GB of RAM (Option 16GB and 32GB of storage) -
Page 4: Description Of The Markings Used
INPUT/OUTPUT CONNECTOR POWER CONNECTOR Antenne Carte SIM Antenne LTE-M USB1 USB3 USB2 CAN 2 CAN 1 SCHEIBER CONTROLEUR 1 Entrée numérique (-) 1 Entrée analogique Antenne 0,5A max WIFI MB BOX 12/24VDC Ecran de navigation Alimentation VDC L’innovation française depuis 1965... -
Page 5: Installation Instructions
Installation instructions • This device must be placed in a place protecting it from any risk of water splashing. Install in a ventilated location • Do not install on supports that are sensitive to heat, such as carpet or PVC flooring, etc. •... -
Page 6: Connection
MB-Box or performs a soft reset if The "Power off" button, one press turns off the MB- the MB-Box is already on. A long press on Power ON Box, it restarts if a Wake-Up entry is active in the exports logs to a USB key. -
Page 7: Use
L’innovation française depuis 1965 Le produit MB-BOX est disponible avec plusieurs services : Embedded services: Remote Services: - Customer app - Client application, dashboard, remote control - Configurations, settings - Configurations, settings - Software update - Software update - Maintenance... - Page 8 L’innovation française depuis 1965 Example of a remote application compatible with the MB BOX Login screen Dashboard 9:31 9:31 Access to settings Scheiber Menu access Remote control Batteries Batteries 9:31 25,8 V 25,8 V Favorites Side Motor -5,5 A -5,5 A...
- Page 9 L’innovation française depuis 1965 Examples of feature pages 9:31 9:31 Tanks Batteries 25,8 V On-board Front fuel -5,5 A Back fuel 28,2 V Motor 12 A 22,7 V Pure water -4 A Data updated in real time Data updated in real time 9:31 9:31 9:31...
-
Page 10: Terms And Conditions
RESPONSIBILITY LIMITS: In any case, the company SCHEIBER will not be held responsible for direct damages or damages not due to the normal use of the equipment. In case of a dispute arising between the parties, the case shall be submitted to the French Right to the court specified by the company SCHEIBER. - Page 11 L’innovation française depuis 1965 Question ? contact@scheiber.fr Problem ? sav@scheiber.fr 2 Bellevue, Phone : +33 (0)2 51 51 73 21 85120 • Saint-Pierre du Chemin sav@scheiber.fr www.scheiber.fr France...
