Quoizel QR3701 Installation Manual

Please go to www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses,
drill bit and drill.
Light Source: Integrated LED 24W
Estimated Assembly Time:
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Missing Parts? Contact your original place of
purchase.
Note: This mirror can be mounted over an electrical outlet box or on the wall and plugged into an outlet.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.

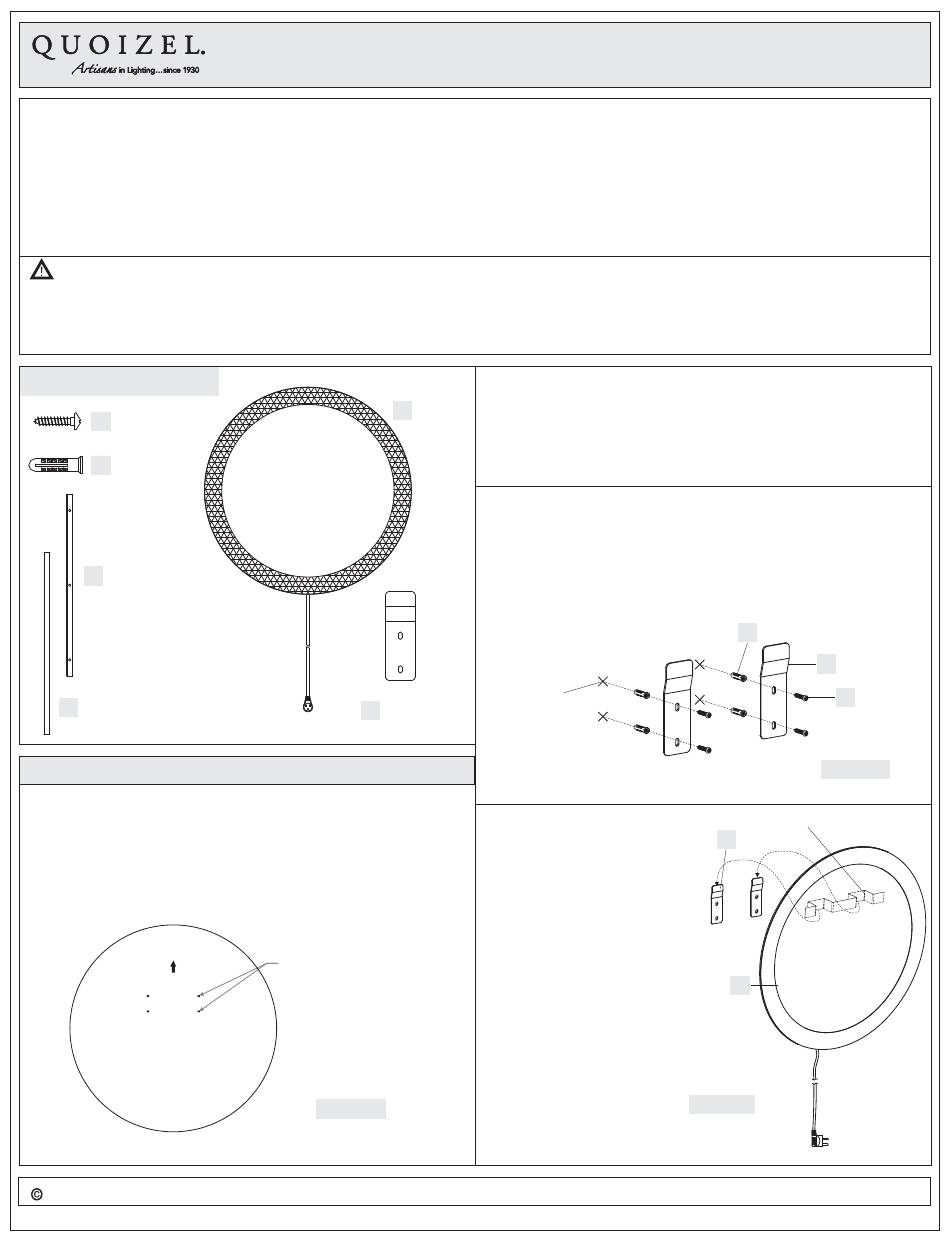

Package Contents
Screw
A
x 7
Wall Anchor
B
x 7
Cord Cover
C Backplate
x 1
Cord Cover
D
x 2
DIRECT MOUNTING MIRROR TO THE WALL
Step 1A - Identify Locations for Wall Anchors
A. The template is provided to assist you in mounting the mirror. The
template is a full size drawing of your mirror and includes the wall
anchor mounting locations that can easily be transferred to the wall,
or use the mirror.
TEMPLATE
2018 QuoizelInc.
for product cleaning tips. Go to the
30-45 minutes
F
Mark Wall Anchor
Locations On The Wall
At Arrow Locations
Figure 1A
visit us on-line at www.quoizel.com
Installation Guide #IS-QR3701
For Style QR3701
Care + Maintenance selection.
(Step 1A Continued)
Mirror
Place the template or the mirror on the wall in the location selected
E
x 1
for the mirror. Make sure the template or mirror is level and in the
correct position. Secure the template to the wall then mark the
locations of the 4 wall anchors as indicated on the template. Remove
the template from the wall.
Step 2A - Installing 4 Wall Anchors and Screws
A. Using a 1/8" drill bit, drill holes at each (4) locations marked on the
wall surface.
B. Insert Wall Anchors (B) into drilled holes completely.
C. Attach Mounting Plates (F) to the Wall Anchors (B) and secure by
threading Screws (A) into Wall Anchors (B). Hand tighten until snug
with screwdrivers.
Mark
Mounting
Plate
x 2
-
STEP 3A Hang Mirror
A. With the help of another
person place the hanging bar
on the back of the Mirror (E)
onto Mounting Plates (F).
Making sure hanging bar is
securely hung onto Mounting
Plates (A) before letting go of
the Mirror (E).
1of2
marking pen, 1/ "
B
F
A
Figure 2A
Hanging Bar
F
E
Figure 3A
ReleasedDate:2018-04-16
8
