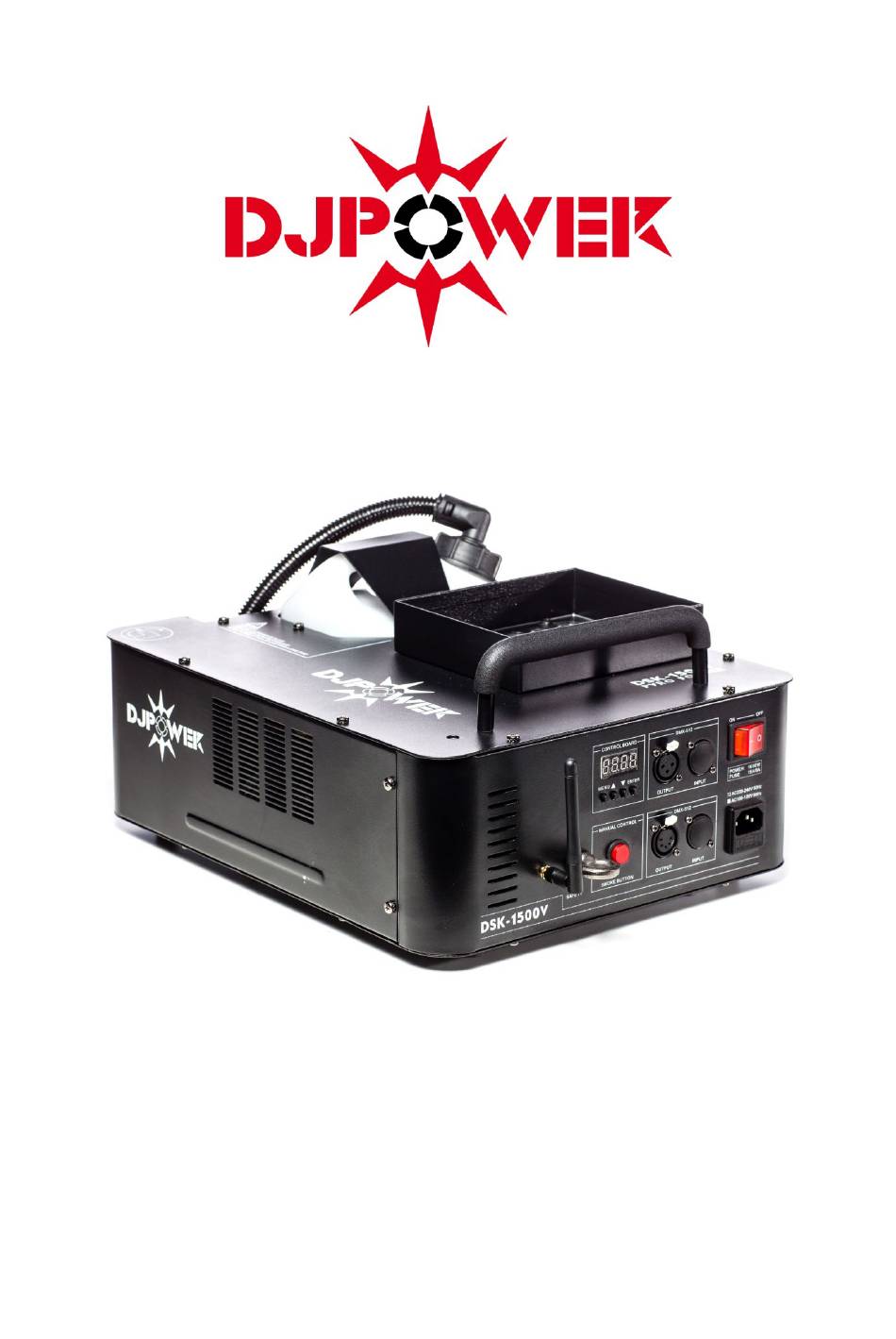

  • Page 1 Fog machine DSK-1500V Users Manual...

  • Page 2: Table Of Contents

    Fog machine DSK-1500V Art.No.: 102630 Table of contents Safety instructions ....................3 1.1. For safe and efficient operation..............3 Intended use of the device ................4 2.1. Overhead installation ..................5 2.2. Connections ....................6 2.2.1. Electrical connections ................6 2.2.2.

  • Page 3: Safety Instructions

    Fog machine DSK-1500V Art.No.: 102630 1. Safety instructions • This device is suitable for indoor use (not outdoors) only. • Unauthorized modifications will invalidate the warranty. • Repairs are to carry out by skilled workers only. • Use only fuses of the same type and original parts as spare parts.

  • Page 4: Intended Use Of The Device

    Fog machine DSK-1500V Art.No.: 102630 2. Intended use of the device This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230 V 50/60 Hz alternating current and only for indoor use.

  • Page 5: Overhead Installation

    Fog machine DSK-1500V Art.No.: 102630 Never use solvents or aggressive detergents for cleaning. Use instead of this a damped cleaning rag. To prevent damages during transport use for transport the original packing or provided accessories. For reasons of safety unauthorized changes are forbidden! A usage of the device which differs from usages which are described in this manual can cause damages of the device.

  • Page 6: Connections

    Fog machine DSK-1500V Art.No.: 102630 It is not allowed to install the device in the grip area of people. If the device may hang from the ceiling or from high beams, the use of truss systems is mandatory. The device may not be installed so it can swing freely in the room.

  • Page 7: Dmx Connections

    Fog machine DSK-1500V Art.No.: 102630 2.2.2. DMX connections Make sure that you use shielded cable. 3pol or 5pol XLR cables are suitable. 2.3. DMX connection with terminator Where the DMX cable has to run a long distance or the equipment is operated in an electrically noisy environment like a disco for installations, we recommend using a DMX terminator.

  • Page 8: Introduction

    Fog machine DSK-1500V Art.No.: 102630 3. Introduction Thank you for choosing a device from DJPower. Before usage please read this manual carefully. 3.1. Item delivered 1x Fog machine DSK-1500V 1x Power cord IEC 1x Remote W5 Manual (German / English) 3.2.

  • Page 9: Start-Up

    Fog machine DSK-1500V Art.No.: 102630 4. Start-up Attention! Remove before start-up every packing material. 1. Fill the tank with fluid (Please use fog fluid CO2). Make sure that there is always enough fluid in the tank. 2. Connect the device to the power supply.

  • Page 10: Structure Of The Menu

    Fog machine DSK-1500V Art.No.: 102630 4.1.1. Structure of the menu Menu Settings Function Addr 0 – 512 Setting the DMX address. Advising the color settings for the single channels. Every button on the remote represents a channel: A = CH-1, B = CH-2, C = CH3 und D = CH4.

  • Page 11: Dmx Chart

    Fog machine DSK-1500V Art.No.: 102630 4.1.2. DMX chart If the device is controlled by DMX the display shows the set DMX address. Channel Value from Value to Function No function Fog output No function Dimmer red 0 – 100%. No function...

  • Page 12: Remote

    Fog machine DSK-1500V Art.No.: 102630 4.1.3. Remote 1. Activate the remote. (Cf. chapter 4.1.1). 2. Power off the device. 3. Power on the device again. The display shows a bar diagram. Press, while the bar diagram is shown in the display, any key on the remote.

  • Page 13: Technical Data

    Fog machine DSK-1500V Art.No.: 102630 5. Technical data Voltage AC 220 V – 240 V; 50/60 Hz Power consumption max. 1500 W Fuse 8 A/250 V LM type LED single color (7x red, 7x green and 7x blue) Power 441 W...
  • Page 14 Fog machine DSK-1500V Art.No.: 102630 For your notes: 14 / 16...
  • Page 15 Fog machine DSK-1500V Art.No.: 102630 For your notes: 15 / 16...
  • Page 16 Fog machine DSK-1500V Art.No.: 102630 B&K LUMITEC 2 rue Alfred Kastler Zone Industrielle 67850 Herrlisheim - France +33 (0) 3.88.96.80.90 +33 (0) 3.88.96.48.46 hello@bklumitec.com www.bklumitec.com 16 / 16...
