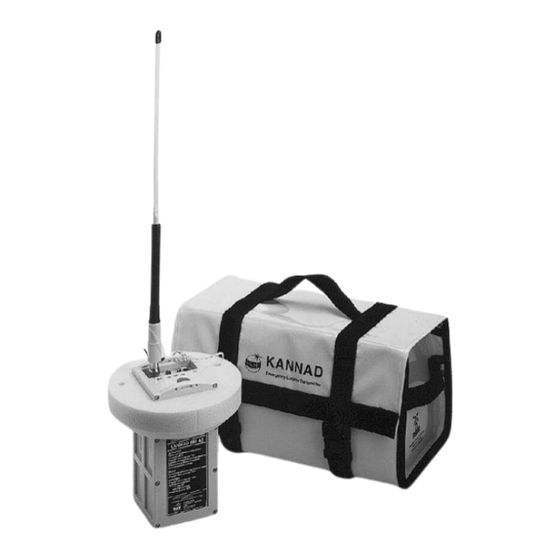

Orolia KANNAD 406 AS Installation Manual

Emergency locator transmitter

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Emergency Locator Transmitter

P/N: S1823502-02

P/N: S1823502-03

P/N: S1820514-14

P/N: S1820511-02

P/N: S1820511-05

P/N: S1820511-03

Revision 12

First issue: JUL /1999

Orolia S.A.S.

INSTALLATION MANUAL

OPERATION MANUAL

KANNAD 406 AS

ELT, KANNAD 406 AS (BNC)

ELT, KANNAD 406 AS (TNC)

WATER SWITCH SENSOR

MOUNTING BRACKET, AS

MOUNTING BRACKET, AS-PLUS

CARRY-OFF BAG, AS

CARRY-OFF BAG, Short

DMA176N

TP PAGE: 1

Date of rev. JUN 29/2022

Table of Contents

Need help?

Do you have a question about the KANNAD 406 AS and is the answer not in the manual?

Questions and answers

Summary of Contents for Orolia KANNAD 406 AS

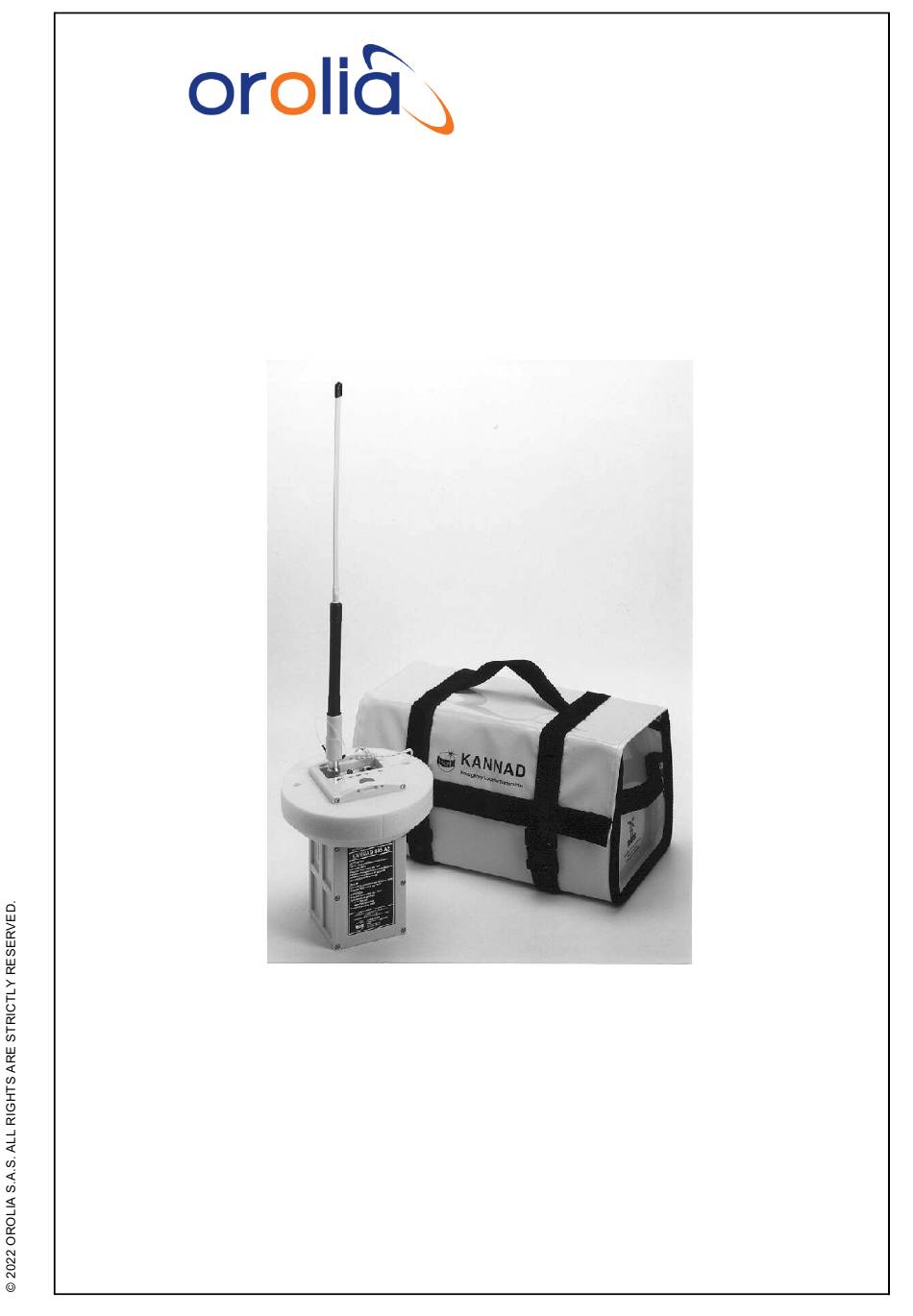

Page 1 DMA176N Emergency Locator Transmitter Orolia S.A.S. INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 AS P/N: S1823502-02 ELT, KANNAD 406 AS (BNC) P/N: S1823502-03 ELT, KANNAD 406 AS (TNC) P/N: S1820514-14 WATER SWITCH SENSOR P/N: S1820511-02 MOUNTING BRACKET, AS P/N: S1820511-05 MOUNTING BRACKET, AS-PLUS...
Page 2 ISSUE TO ANY THIRD PARTY IS NOT PERMITTED WITHOUT THE PRIOR WRITTEN CONSENT OF THE OROLIA GROUP. THIS DOCUMENT IS TO BE RETURNED TO THE OROLIA GROUP WHEN THE AGREED PURPOSE IS FULFILLED. © 2022 Orolia S.A.S. All rights are strictly reserved.
Page 3 RECORD OF REVISIONS REV. Nb REVISION DATE INSERTION DATE MAR 18/2004 JAN 17/2005 JUN 27/2005 NOV 08/2006 FEB 01/2008 JUN 23/2008 APR 28/2010 AUG 30/2012 JUN 29/2022 ROR PAGE: 1 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 5 INTRO JUN 29/2022 System Overview JUN 29/2022 JUN 29/2022 JUN 29/2022 JUN 29/2022 JUN 29/2022 JUN 29/2022 System Functional Description and Operation JUN 29/2022 JUN 29/2022 LEP PAGE: 1 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 6 JUN 29/2022 JUN 29/2022 JUN 29/2022 Check JUN 29/2022 JUN 29/2022 Troubleshooting JUN 29/2022 JUN 29/2022 Schematics and Diagrams JUN 29/2022 JUN 29/2022 JUN 29/2022 JUN 29/2022 LEP PAGE: 2 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 7 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 AS LIST OF EFFECTIVE PAGES SUBJECT PAGE DATE Servicing JUN 29/2022 JUN 29/2022 JUN 29/2022 JUN 29/2022 LEP PAGE: 3 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 9 KANNAD 406 AS INTRODUCTION The instructions in this manual provide the information necessary for the installation and the operation of the KANNAD 406 AS ELT. Servicing instructions are normally performed by shop personnel. For servicing and maintenance instructions, refer to CMM 25-63-01.
Page 11: Table Of Contents
Deployment from carry-off bag 208 Deployment from mounting bracket 209 CHECK 301 Self-test 301 Periodicity 301 Self-test procedure 301 TROUBLESHOOTING 401 General 401 Faults on Self-test 401 Visual Indicator 401 TOC PAGE: 1 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 12 Buzzer operates permanently when ELT in ARM mode 401 SCHEMATICS & DIAGRAMS 501 Outline Dimensions 501 Drilling Mask 503 SERVICING 601 Maintenance Schedule 601 Periodic inspection 601 Battery replacement 601 Battery replacement requirements 602 TOC PAGE: 2 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 13: System Overview
• EPIRB (Emergency Position Indicating Radio Beacon) for maritime applications. • ELT (Emergency Locator Transmitter) for aeronautical applications. • PLB (Personal Locator Beacon) for land expeditions. Figure 1: COSPAS-SARSAT System PAGE 1 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 14: World Coverage With The Cospas-Sarsat System
• resistance to flame; • impact and crush tests; • resistance to shocks; • watertightness; • antideflagration; • extreme temperatures (-20°C to 55°C for more than 48 hours). PAGE 2 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 15: Kannad 406 As Presentation
(option); a “Programming Dongle” for pin-programming function (option). Figure 2: KANNAD 406 AS Presentation with Mounting Bracket AS PAGE 3 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 16 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 AS Figure 3: KANNAD 406 AS Presentation with Mounting Bracket AS-PLUS NOTE: Mounting Bracket AS-PLUS cannot store a programming dongle. The Hook and Loop Fastener Strap used to retain the ELT is made of BMS8-285 Type IV Class2 material (BMS - BOEING MATERIAL SPECIFICATION), In addition it is fitted with snaps to secure the fixing method.
Page 17: Design Features
The housing is designed to be easily taken in one hand. A tether is supplied to tie the ELT to a liferaft. KANNAD 406 AS is fitted with a floating collar to enable the ELT to float upright if used in water. This floating collar can be removed if the ELT is attached to a life-raft or any buoyant part.
Page 19: System Functional Description And Operation 101
SYSTEM FUNCTIONAL DESCRIPTION AND OPERATION 1. Transmitter The KANNAD 406 AS is designed to transmit on three frequencies (121.5, 243 and 406 MHz).The two basic aeronautical emergency frequencies (121.5 and 243 MHz) are mainly used for homing in the final stages of the rescue operations.
Page 20 NOTE: The expiry date takes into account FAR 91-207 (i.e. batteries to be replaced when 50 percent of their useful life has expired). PAGE 102 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 21 ZWL[(A1)(A2)(A3)XX]XXA switch sensor option Note: Ch. 6, 9, 10 according to DO-160C. • Buzzer QUALIFICATIONS ETSO-2C91a & ETSO-2C126 (EUROCAE ED62) TSO-C91a & TSO-C126 (RTCA DO183 & DO204) PAGE 103 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 22 - 121.5 / 243 MHz transmission starts immediately after the self-test. - 406 MHz transmission starts after 50 seconds. - During transmission, buzzer operates and visual indicator flashes periodically. PAGE 104 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 23 Put the ELT in the water to float safely. Check that buzzer operates and visual indicator flashes periodically. The ELT should float with antenna in vertical position PAGE 105 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 24 IMPORTANT: As 406 MHz transmission is effective 50 seconds after the ELT activation, if it is reset within this delay, no further radio contact will be necessary. • Switch to “OFF”. Switch OFF PAGE 106 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 25 Any change of ownership shall also be declared and registered with the local registration authority and with the distributor. The KANNAD 406 AS is fully compatible with the four programming protocols defined by the COSPAS-SARSAT C/S G005 document: • Serialised Number.
Page 26 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 AS A. Pin programming option The KANNAD 406 AS offers pin-programming capabilities to facilitate maintenance operations especially in the case of removals and/or replacement. A special DIN 12 connector with a Serial Memory Module (called “Programming Dongle”) is connected to the ELT when installed on board (optional).
Page 27 The ELT shall not be installed less than 60 cm (2 ft) from a magnetic field sensor. The KANNAD 406 AS can be either packed in a carry off bag or installed on a mounting bracket. A. Installation with Carry-Off Bag The KANNAD 406 AS is packed in a carry off bag with 3 handles for easy handling.
Page 28 The hook and loop fastener strap is fitted with two snaps to secure the fastening of the strap. Figure 204: Mounting Bracket, AS-PLUS, P/N S1820511-05 PAGE 204 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 29 • If test result is OK, switch back to “OFF”. • Disconnect the Programming Dongle (if applicable) and stow it in the compartment designed to this effect inside the bracket. PAGE 205 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 30 • Slide the antenna through the hole provided in the floating collar. • Slide the locking pin as shown hereunder. • Install the ELT on the mounting bracket with “lower cover” facing the mounting bracket. PAGE 206 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 31 ELT shall be installed with locking pin so that switch cannot be put in the “ON” position (see Installation). • Install a seal using one of the two holes in the cover of the ELT and the mounting bracket. PAGE 207 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 32 • Press the buckles to open the bag top cover. • Turn the ELT sideways to release it from the wedging form. • Deploy the antenna and check that it is connected correctly. PAGE 208 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 33 • The locking pin will be extracted from the ELT while remaining attached to the mounting bracket. • If, unfortunately, the locking pin was not extracted, slide it to have free access to the switch. PAGE 209 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 35 NOTE: The number of flashes gives an indication of the faulty parameter detected during the self-test. LOW BATTERY VOLTAGE LOW RF POWER FAULTY VCO LOCKING (FAULTY FREQUENCY) NO IDENTIFICATION PROGRAMMED PAGE 301 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 37 Repair and battery replacement can only be carried out by PART 145 / FAR 145 avionics workshops (or equivalent agreement according to local regulations). Additional approval from Orolia is required. Refer to Service Letter SL S18XX50X-25-02 Maintenance Policy for KANNAD ELTs. 2. Faults on Self-test A.
Page 39 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 AS SCHEMATICS & DIAGRAMS 1. Outline Dimensions Note: all dimensions are in millimeters (inches in brackets) PAGE 501 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 40 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 AS Note: all dimensions are in millimeters (inches in brackets) 172 (6.77) 300 (11.97) 300 (11.97) PAGE 502 © 2022 Orolia S.A.S. All rights are strictly reserved. JUN 29/2022...
Page 43 Some Civil Aviation Authorities may require the ELT be tested periodically. In this case, refer to Service Letter SL S18XX502-25-12 “Guidelines for periodic inspection” available on the Support section of Orolia website. B. Battery replacement Testing of the various elements of the ELT is mandatory when the battery is replaced: •...
Page 44 Service Center. For more information, refer to Kannad ELT Maintenance Policy available on Orolia website. Orolia S.A.S. refuses all responsibility and invalidates all warranty should unapproved maintenance be carried out. List of KANNAD Battery Replacement Center is available on our Website: https://www.orolia.com/support/...
Page 48 Distributed by Manufactured by Orolia S.A.S Z.I. des Cinq Chemins CS10028 56520 GUIDEL - FRANCE Phone: +33 (0) 2 97 02 49 49 Web: https://www.orolia.com DMA176N © 2022 Orolia S.A.S. All rights are strictly reserved.
