Operation modes

1. Stereo operation
For stereo (dual channel ) operation, leave the Link
and Phase reverse switches in the undepressed
position. In this mode, both channels operate
independently of each other, with their level
attenuators controlling their respective levels.
Never connect either output terminal to ground
or in parallel. The recommended minimum
nominal impedance, for stereo or tandem operation,
is 2 ohms per channel.
2.
Tandem mono
For tandem ( dual channel-single input) operation ,
depress the Link switch. Both channels can now be
driven by a signal, at either input connector. The
output connection is the same as in stereo mode.
You can use either TRS connectors for linking out
etc. Do not use the remaining XLR and TRS
connectors for mixing or other purposes. Both
level attenuators are active, allowing you to set
different levels for each channel.
Never connect either output terminal to ground
or in parallel.
3.
Bridged mono
To bridge the amplifier, depress the Link switch (7)
and Phase reverse switch (6). Both channels are then
driven by a single signal at either input. You can
use any remaining input connectors for linking etc.
Do not use the remaining XLR and TRS as input
jacks simultaneously for mixing or other purposes.
To obtain an output, connect the speaker leads to
pin +1 on channel A Speakon to speaker
positive terminal and pin +1 on channel B
Speakon to speaker negative terminal .
connect either of the -1 (negative) pins of the
Speakons. Do not connect speakers to channel
A or B in the normal manner in bridge mode, as
this can cause serious damage.
The recommended minimum nominal impedance
for bridged mono is 4 ohms (equivalent to driving
both channels at 2 ohms).
Driving bridged loads of less than 4 ohms may cause
a thermal overload.
Operation
1. Operation precautions
Make sure that the power switch is off before
•
making any input or output connections or
operating the switches on rear panel. See pages
4-7 about installation.
Make sure that the AC mains is correct and the
•
same as that is printed on the rear panel of the
amplifier. See pages 5-6 , about operating
voltage and power consumption.

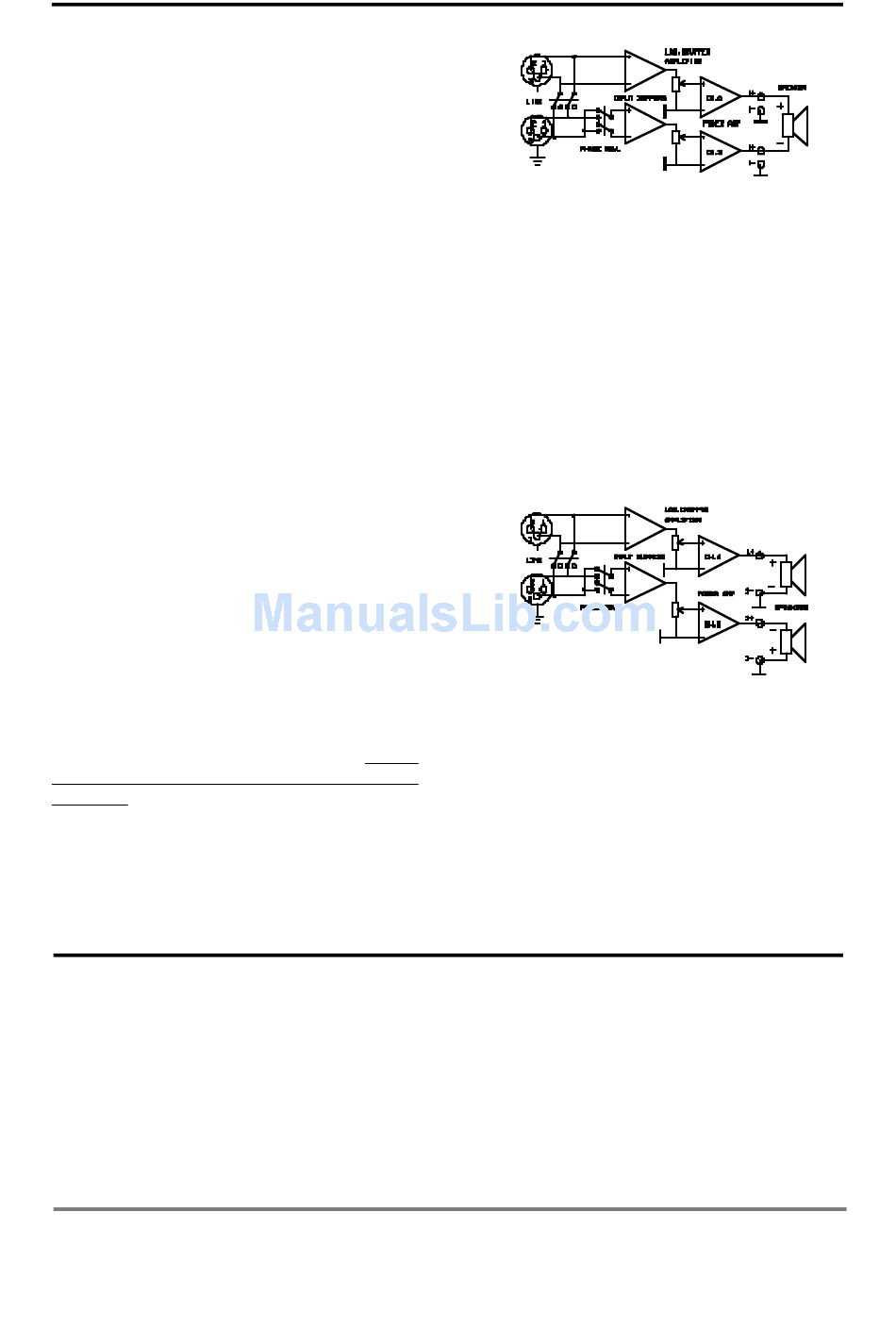

Figure 11. Bridge mono connection
Both level attenuators must be at the same
position. We recommend you to put them in the 0
dB (full) position.
4. Stereo reverse
This mode is similar to the Tandem mono mode.
Apart from depressing the Link switch , you also
depress the Phase reverse switch, like in the Bridge
mono. Channel B is now phase reversed. To
compensate for that, connect pin +1 on channel B
Speakon to speaker negative terminal and pin -1
on channel B to speaker positive terminal.
Figure 12. Stereo reverse mode
Do not Channel A output is connected as in the normal
stereo mode. By having channel A and B operating
in opposite polarity, the energy storage in the
power supply is more efficient. This means that the
amplifier can deliver up to 10% more power than in
tandem mono mode. This is significant for signals
below 100 Hz (sub bass etc.).
Make sure that the switches on the rear panel
•
for operation modes ,clip limiters, and the
MLS™ switches are in the correct position.
See this page, about operation modes, page 9
about clip limiters and page 7 for the MLS
switches.
It is always a good idea to turn down the gain
•
controls during power up, to prevent speaker
damage, if there is a high signal level at the
input.
8
