HORIZONTAL SIDEWALL SPRINKLERS
MODEL F916
STANDARD RESPONSE, SOLDER TYPE, 2.8 & 5.6 K-FACTOR, 1/2" NPT**
GENERAL DESCRIPTION
The 2.8 K-Factor (3/8 inch orifice) &
5.6 K-Factor (1/2 inch orifice), Model
F916 Horizontal Sidewall Sprinklers
(Ref. Figure A) are automatic sprin-
klers of the "standard response" fus-
ible solder type. They are "standard
spray sidewall sprinklers" intended for
use in fire sprinkler systems designed
in accordance with the standard instal-
lation rules recognized by the applica-
ble Listing or Approval agency (e.g.,
UL Listing is based on NFPA 13 re-
quirements).
Horizontal sidewall sprinklers are gen-
erally used in lieu of pendent and up-
right sprinklers because of building
construction or installation economy
considerations. They are designed for
installation along a wall or the side of
a beam and just beneath a smooth
ceiling. Installed with their centerline of
waterway parallel to the ceiling, these
sprinklers produce a quarter-spherical
water discharge pattern that is pre-
dominately directed downward and
outward from the deflector; however, a
portion of the spray is also directed
towards the backwall.
APPROVALS AND STANDARDS
Laboratory listings and approvals for
the 2.8 & 5.6 K-Factor Model F916
Horizontal Sidewall Sprinklers are
given in Table A.
WARNING
The 2.8 & 5.6 K-Factor Model F916
Horizontal Sidewall Sprinklers de-
scribed herein must be installed and
maintained in compliance with this
document, as well as applicable
standards of the National Fire Protec-
tion Association, in addition to the
standards of any other authorities
having jurisdiction. Failure to do so
may impair the integrity of these de-
vices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
Printed in U.S.A. 3-01
Customer Service/Sales: Tel: (877) 436-8926 / Fax: (877) 866-9250
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
1 - Frame
2 - Gasketed
Button
3 - Ejection
Spring
4 - Fusible
Element
5 - Strut
6 - Hook
7 - Deflector
8 - Bushing
1 - Frame
2 - Gasketed
Button
3 - Ejection
Spring
4 - Fusible
Element
5 - Strut
6 - Hook
7 - Deflector
*
Temperature rating is indicated on the Deflector.
**
Pipe thread connections per ISO 7/1 can be provided on special request.

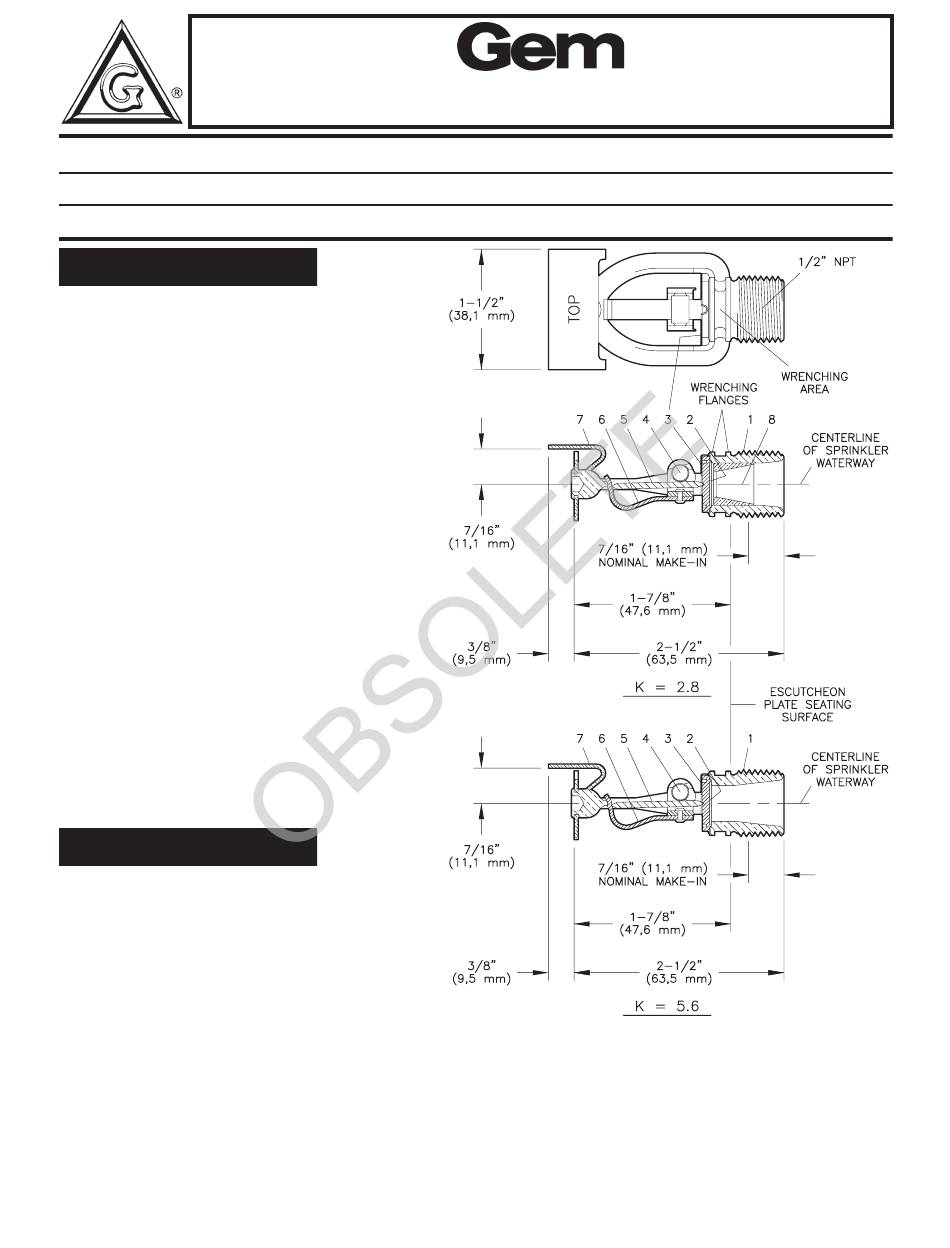

2.8 K-FACTOR (SIN G3123) AND 5.6 K-FACTOR (SIN G3113)
MODEL F916 HORIZONTAL SIDEWALL SPRINKLERS
FIGURE A
TD535H
