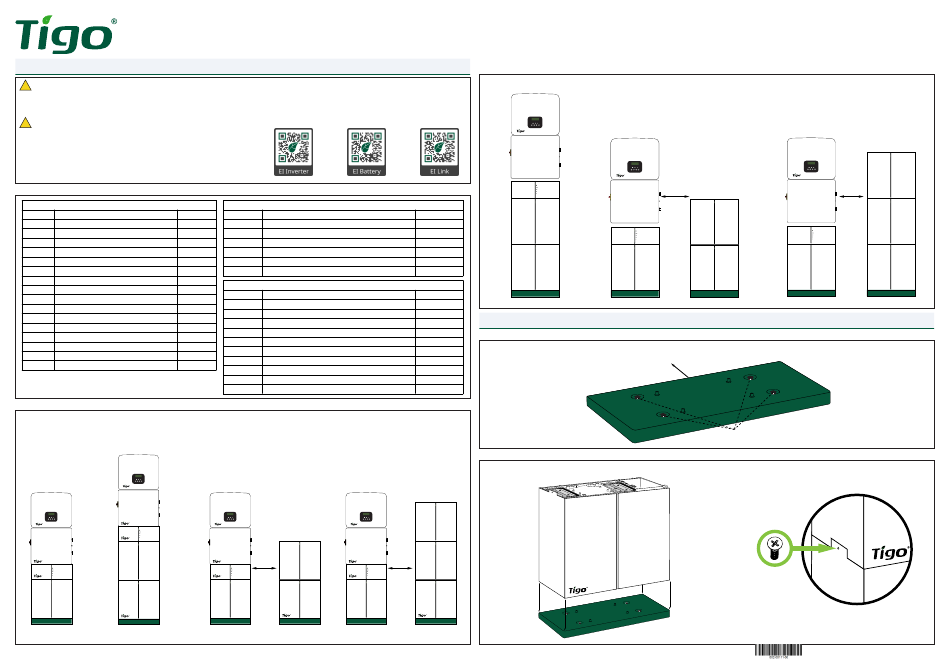

Tigo EI Quick Start Manual

1. General Information - Specifications

ATTENTION - READ FIRST
!
1. This document is for general guidance only. Refer to the Energy Intelligence (EI) Inverter Installation & Operations Manual for more detail.
2. Before installing the system, verify that the package contents are intact and complete as per the packing list. Contact your dealer if there is equipment
damage or missing components.
ATTENTION - Use the appropriate QSG's to perform the
!
physical installation of the EI system in the following order:
1. EI Battery
2. EI Inverter
3. EI Link
4. EI BMS

1.1 Package Contents

BMS:
Index Item Quantity
1 BMS 1
2 BMS to Inverter Charging Cable (+) (2.0 m) 1
3 BMS to Inverter Charging Cable (-) (2.0 m) 1
4 BMS to Battery Module Power Cable (120 mm) 1
5 BMS Communication Cable (2.2 m) 1
6 COMM Communication Cable (200 mm) 1
7 Tightening Wrench 1
8 Wall Mounting Bracket 1
9 M5 Screw 4
10 Flat Washer 2
11 Grounding Wire (150 mm) 1
12 Lag Bolt 2
13 Wall anchor 2
14 Wire protector 2
15 Mounting Base 1
16 Safety manual 1

1.2 System Configuration

The EI Solution is ground mounted. All components stack together to form a complete unit. Extension batteries are installed to the right side of the main cabinet
as shown below.
1.2.1 Single Phase energy storage configuration examples:
Battery Module:
Index Item
1 Battery Module
2 Battery Module Power Cable (690 mm)
3 COMM Communication Cable (600 mm)
4 M4 Screw
5 Grounding Wire (450 mm)
6 Quick Start Guide
Accessories:
Index Item
1 Battery Module Power Cable (1200 mm)
2 Battery Module COMM Communication Cable (1200 mm)
3 Grounding Wire (1200 mm)
4 Battery Base
5 Cover Plate
6 Wall Mounting Bracket
7 Wire Protector Ring
8 M4 Screw
9 Wall Bracket Accessories
10 Battery Module to BMS Power Cable (2500 mm) [optional]
200-250 mm 200-250 mm
1.2.2 Three phase energy storage system configuration examples:
Quantity
1
1
1
2
1
1
Quantity
1
1

2. Installation

1
1

2.1 Battery Base

1
1. Place the battery base 20 mm away from the wall.
2 2. Adjust the battery base levelers if needed. Verify using spirit level.
4
8
1
1

2.2 Battery Module(s)

1. Load the battery modules on the base as per Section 1.2.
EI Battery (Including EI BMS)
Quick Start Guide - EI BMS/TSB-3/EI Battery Accessories
200-250 mm
20 mm
levelers
2. Secure the batteries on the left and right sides using the provided M4
Screws as shown.
Pg 1 of 3
200-250 mm
PN: 002-00111-00 | REV 3.0 | Oct. 21, 2022
