Read and understand all instructions before beginning installation. Disconnect power to motor and test upon completion.
Photo optics should be installed by qualified personnel to ensure the requirements herein have been met. Keep these
Instructions with the installation. Always abide by local and national electrical code specifications when wiring accessories
to motor controls.

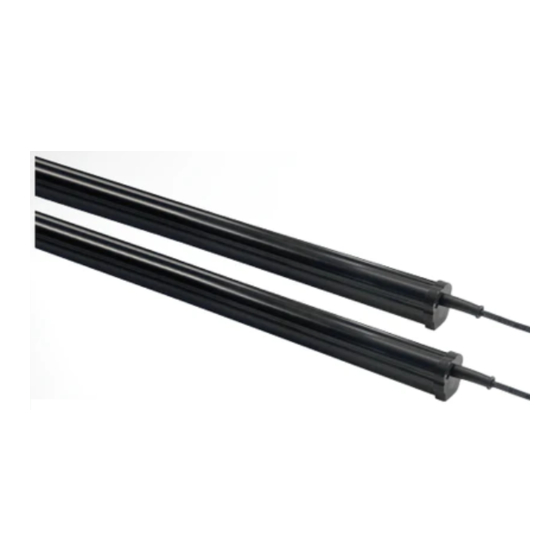

The Relay Light Curtain (RLC-K36, RLC-K72) is a non-monitored, fail-safe photo optic solution that has a normally
open and a normally closed dry contact output. It provides additional protection for the area above the floor,
protecting people and vehicles more effectively than a single-beam photo eye. Consult the manufacturer manual
for detailed instructions about connecting RLC to the door operator.
CONTENTS
RLC-K36: 3 ft., 8 elements
o (1) Emitter
o (1) Receiver
o (4) Universal mounting
brackets
o (8) #4 ½ inch zinc plated oval
head self-tapping screws

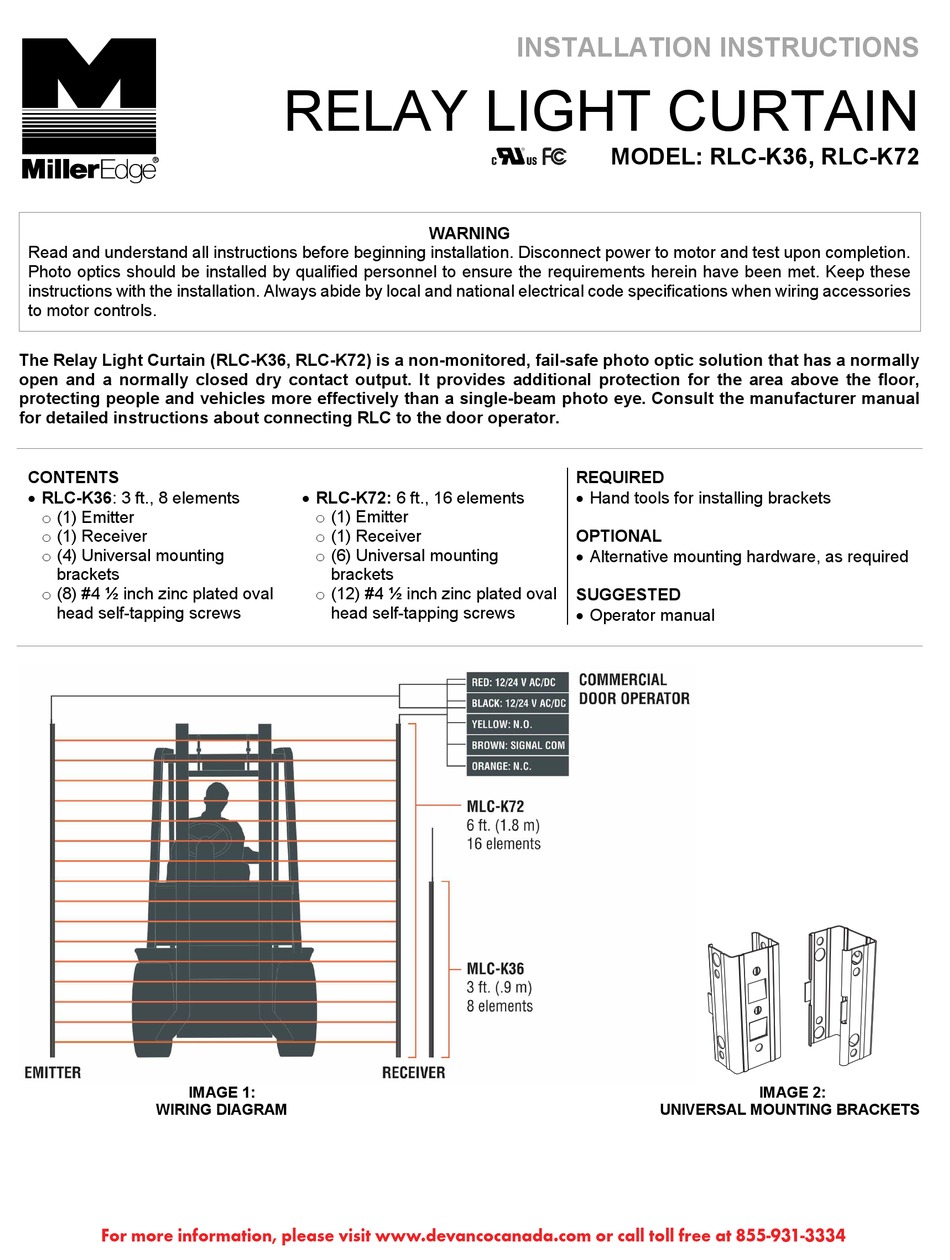

IMAGE 1:
WIRING DIAGRAM
www.milleredge.com
For more information, please visit www.devancocanada.com or call toll free at 855-931-3334
RELAY LIGHT CURTAIN
WARNING
RLC-K72: 6 ft., 16 elements
o (1) Emitter
o (1) Receiver
o (6) Universal mounting
brackets
o (12) #4 ½ inch zinc plated oval
head self-tapping screws
info@milleredge.com
INSTALLATION INSTRUCTIONS
MODEL: RLC-K36, RLC-K72
REQUIRED
Hand tools for installing brackets
OPTIONAL
Alternative mounting hardware, as required
SUGGESTED
Operator manual
UNIVERSAL MOUNTING BRACKETS
800-220-3343
IMAGE 2:
RLC_INST_20210202
1/4
