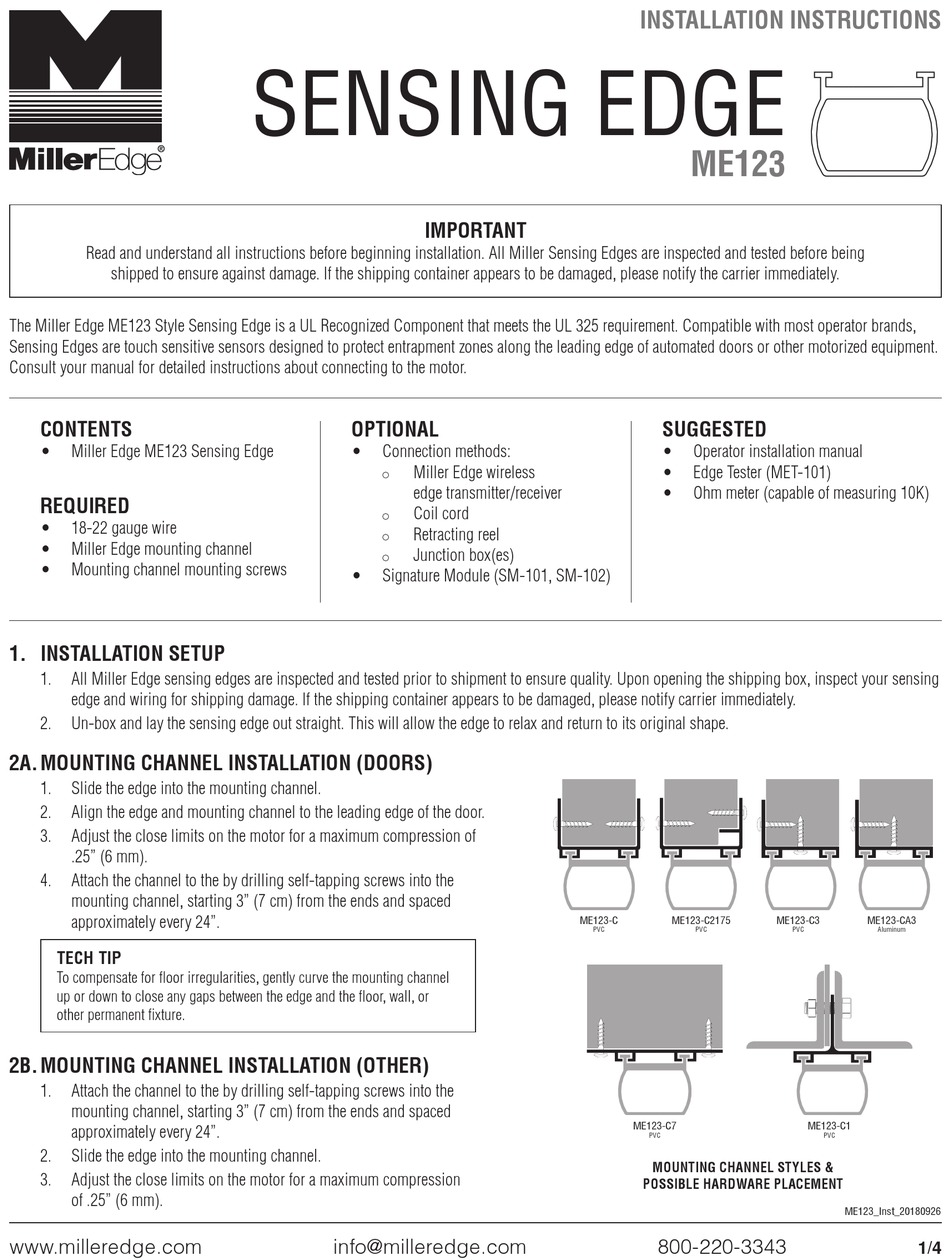

Miller Edge ME123 Installation Instructions

Read and understand all instructions before beginning installation. All Miller Sensing Edges are inspected and tested before being
shipped to ensure against damage. If the shipping container appears to be damaged, please notify the carrier immediately.

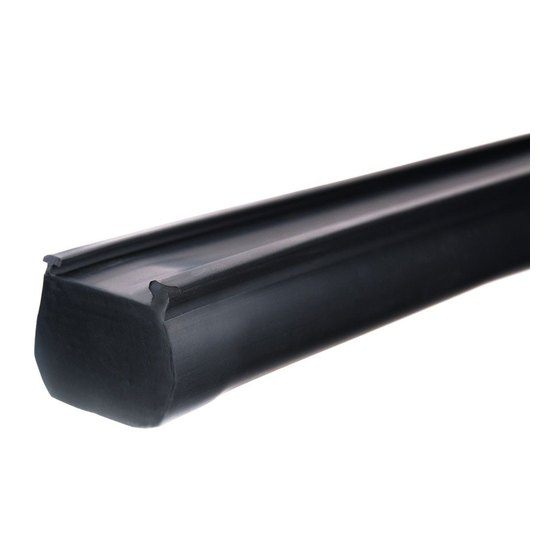

The Miller Edge ME123 Style Sensing Edge is a UL Recognized Component that meets the UL 325 requirement. Compatible with most operator brands,
Sensing Edges are touch sensitive sensors designed to protect entrapment zones along the leading edge of automated doors or other motorized equipment.
Consult your manual for detailed instructions about connecting to the motor.
CONTENTS
• Miller Edge ME123 Sensing Edge
REQUIRED
• 18-22 gauge wire
• Miller Edge mounting channel
• Mounting channel mounting screws
1. INSTALLATION SETUP
1. All Miller Edge sensing edges are inspected and tested prior to shipment to ensure quality. Upon opening the shipping box, inspect your sensing
edge and wiring for shipping damage. If the shipping container appears to be damaged, please notify carrier immediately.
2. Un-box and lay the sensing edge out straight. This will allow the edge to relax and return to its original shape.
2A. MOUNTING CHANNEL INSTALLATION (DOORS)
1. Slide the edge into the mounting channel.
2. Align the edge and mounting channel to the leading edge of the door.
3. Adjust the close limits on the motor for a maximum compression of
.25" (6 mm).
4. Attach the channel to the by drilling self-tapping screws into the
mounting channel, starting 3" (7 cm) from the ends and spaced
approximately every 24".
TECH TIP
To compensate for floor irregularities, gently curve the mounting channel
up or down to close any gaps between the edge and the floor, wall, or
other permanent fixture.
2B. MOUNTING CHANNEL INSTALLATION (OTHER)
1. Attach the channel to the by drilling self-tapping screws into the
mounting channel, starting 3" (7 cm) from the ends and spaced
approximately every 24".
2. Slide the edge into the mounting channel.
3. Adjust the close limits on the motor for a maximum compression
of .25" (6 mm).
www.milleredge.com
SENSING EDGE
IMPORTANT
OPTIONAL
• Connection methods:
Miller Edge wireless
edge transmitter/receiver
Coil cord
Retracting reel
Junction box(es)
• Signature Module (SM-101, SM-102)
info@milleredge.com

INSTALLATION INSTRUCTIONS

ME123
SUGGESTED
• Operator installation manual
• Edge Tester (MET-101)
• Ohm meter (capable of measuring 10K)
1.5"H x 2"W
W 2 " x H 5 " 1 .
ME123-C ME123-C2175
PVC PVC
ME123-C7
PVC
MOUNTING CHANNEL STYLES &
POSSIBLE HARDWARE PLACEMENT
800-220-3343
ME123-C3 ME123-CA3
PVC Aluminum
ME123-C1
PVC
ME123_Inst_20180926
1/4
