Summary of Contents for Major Science MD-01N-110

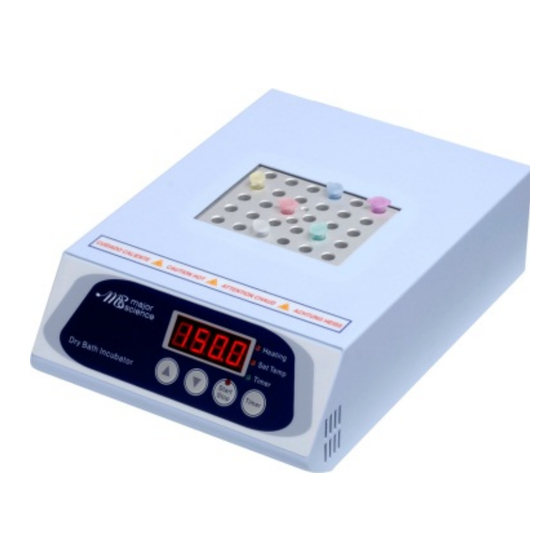

- Page 1 Genius Dry Bath Incubator Instruction Manual Catalog No. MD-01N-110 / 220 MD-02N-110 / 220 MD-01N-T-110 / 220 MD-02N-T-110 / 220 www.majorsci.com service@majorsci.com Version 02D Revision on:2015.08.12...
-
Page 2: Packing List
- 1 × Genius Dry Bath Incubator Instruction Manual Signed by: Date: Major Science is liable for all missing or damaged parts / accessories within 7 days after customer received this instrument package. Please contact Major Science immediately regarding this issue. If no response within such time period from consignee party, that will be consignee party’s whole responsibility. -
Page 3: Table Of Contents
Table of Contents Packing list ......................1 Warning ....................... 3 Section 1 Introduction..................7 1.1 Overview ..................... 7 1.2 Control and Features ................... 7 Section 2 Product Description ..............9 Section 3 Product Specifications ..............10 Section 4 Installation Instructions .............. 11 Section 5 Operation Instructions .............. -
Page 4: Warning
Warning Major Science Genius Dry Bath Incubator has been tested and found to comply with safety limits for the CE regulation. Also, Genius Dry Bath Incubator is RoHS compliant to deliver confident product which meets the environmental directive. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 Major Science will not provide customers any notice or certification concerning its products being compliant as a medical device.
- Page 6 To avoid electrical shock: 1. In the event of solution accidentally spilled into the instrument, it must be dried out for a period of time, at least 2 hours, and restored to NORMAL CONDITION before each operation. 2. NEVER connect or disconnect wire leads from the power jacks when the power is on.
- Page 7 Symbols The symbols used on Genius Dry Bath Incubator are explained below. Indicates an area where a potential shock hazard may exist. Consult the manual to avoid possible personal injury or instrument damage. ATTENTION: Hot surface! Indicates disposal instruction. DO NOT throw this unit into a municipal trash bin when this unit has reached the end of its lifetime.
-
Page 8: Introduction
Section 1 Introduction 1.1 Overview Major Science’s single and dual block Genius Dry Bath Incubators provides comprehensive designs for a wide variety of applications. Excellent temperature control figures can deliver accurate and reliable experimental results from one experiment to another. Genius Dry Bath Incubators are also space compact instruments with competitive pricing offerings. - Page 9 Rear View (10) Key – to increase temperature or time value Key – to decrease eithertemperature or time value Key – activate or stop the unit. Key – set or select timer mode (5) TIMER – This LED light indicates running Timer Mode (6) Set Temp - This LED light indicates temperature is on setting value (7) Heating –This LED light indicates temperature is increasing.
-
Page 10: Product Description
Section 2 Product Description Both single and dual block Genius Dry Bath Incubators use interchangeable heating block modules for a variety of applications, including restriction enzyme digestion, denaturing DNA, BUN, melting agar, coagulation studies, hybridization, and Hot Start thermo-cycled reaction. Due to its molded aluminum alloy chamber, it can be applied as a mini water bath. -
Page 11: Product Specifications
Section 3 Product Specifications Controller Digital microprocessor controller Display LED display Heating Power 125W for MD-01N 200W for MD-02N Power Rating 1.0A for MD-01N 1.6A for MD-02N Temperature Control Range 5°C above ambient to 150°C Temperature Increment 0.1°C Temperature Calibration Temperature Uniformity ±... -
Page 12: Installation Instructions
Section 4 Installation Instructions Genius Dry Bath Incubator is actually a pre-installed instrument. As long as it is placed on a sturdy and level surface in a safe, dry place, and is inserted with one or two heating aluminum block(s) or simply water as a water bath, it is ready for operation. -
Page 13: Operation Instructions
10. If the optional external temperature probe is used, plug it into the connector located on the rear panel. Note: If you’d like to have an additional external temperature probe, please contact with Major Science and send the instrument back to our factory. -
Page 14: Temperature Calibration
11. Press Key again to stop the unit. Temperature Calibration Genius Dry Bath Incubator with the optional block(s) has been calibrated as a set. However, different block types or different water source may have different influences and may cause different results. For optimum accurate temperature control or while changing with different kinds of block or water, Genius Dry Bath Incubator should be calibrated in accordance with the procedure outlined below. - Page 15 6. The calibrated procedure is finished. Please wait for a few more minutes for the microprocessor to automatically adjust displayed temperature value to the same value with thermometer measured.
-
Page 16: Function Control Software Instructions
Section 6 Function Control Software Instructions NOTE: All rights reserved by Major Science co., ltd. 6.1 Installation Instruction 1. Insert the CD into CD ROM and press the setup.exe in the Installer Folder for installation. 2. Follow up the instructions shown on the computer display screen to complete the installation. - Page 17 Temp. PV The real temperature value being measured Timer SV (Min) To set operation time To indicate how many minutes Genius Dry Bath Incubator is being Time RUN (Min) operated Temp. SV ON / OFF To show the temp set value on the table or not Temp.
- Page 18 operated To show the temp set value on the table or not Temp. SV ON / OFF Temp. PV ON / OFF To show the real time temp value on the table or not CLEAR CHART OFF To clear up the curves in the table ON: to view historic record data Open File OFF: No historic record data is shown...
-
Page 19: Troubleshooting & Maintenance
START Key to start Please contact the service department of Err2 heating after powering on the unit, “Err2” Major Science or your local distributor for will be displayed with alarm. This problem is service. due to SSR failure. -
Page 20: Maintenance
Maintenance Genius Dry Bath Incubator may be cleaned with a moist cloth containing a mild soap solution. The chamber and blocks are constructed of aluminum alloy and may be cleaned with any of the commercial aluminum cleaners on the market. The heating surface contains a PTFE coating. -
Page 21: Ordering Information
Section 8 Ordering Information Cat. No. Description MD-01N-110/220 GENIUS Dry Bath Incubator (one block unit); without block MD-02N-110/220 GENIUS Dry Bath Incubator (dual block unit); without block MD-01N-T-110/220 GENIUS Dry Bath Incubator (one block unit) with an External Temp Probe... -
Page 22: Warranty
All claims made under this warranty must be presented to Major Science within one year following the date of delivery of the product to the customer. - Page 23 MEMO...
- Page 24 MEMO...
