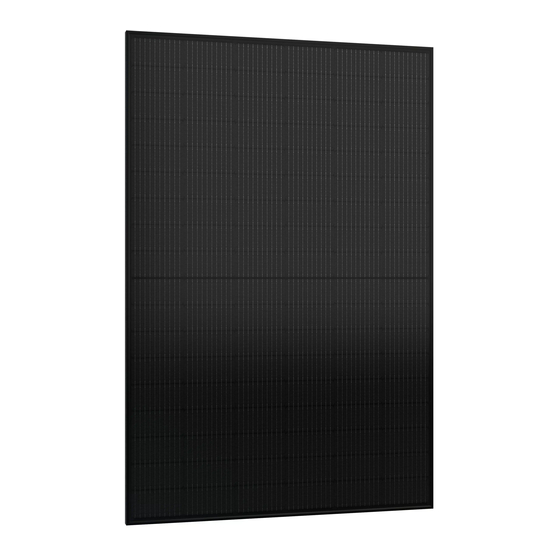

- Page 1 Installation Manual Crystalline modules WINAICO is a trademark of Win Win Precision Technology Co., Ltd. SIM2205-01(EN) www.winaico.com...
-
Page 2: Table Of Contents
WINAICO USA ..............................16 WINAICO Japan KK .............................. 16 This document applies to the WINAICO WSP and WST series and takes the place of all previous versions of the installation and mounting instructions for these modules. No responsibility is accepted for the correctness of this information. We reserve the right to technical changes. The documentation in place at the time the module was manufactured applies when undertaking installation, mounting and maintenance work. -
Page 3: Introduction
This manual is intended for qualified solar designers and installers to assist in the correct installation, operation and maintenance of WINAICO’s WSP and WST series solar panels. WINAICO solar panels should only be installed by qualified professionals authorised to carry out such work by their relevant local jurisdiction. Unqualified people should be kept a safe distance away. -
Page 4: Product Dimensions
Max. test load (push)/(pull)* 2,400 Pa 2,400 Pa 2,400 Pa Test and design load in accordance with IEC 61215:2016, depending on mounting options (please refer to section 6.1). WINAICO is a trademark of Win Win Precision Technology Co., Ltd. SIM2205-01(EN) www.winaico.com... - Page 5 WST-MGX-P3 6X18 WST-MGX-P1 6X18 WST-MGX-E1 6X18 WINAICO is a trademark of Win Win Precision Technology Co., Ltd. SIM2205-01(EN) www.winaico.com...
- Page 6 WST-MGL 6X20 WST-MG 6X20 WST-MG 6X18 WINAICO is a trademark of Win Win Precision Technology Co., Ltd. SIM2205-01(EN) www.winaico.com...
-
Page 7: Warning Notices And Handling Instructions
Be sure to carefully follow the inverter manufacturer’s installation instructions! WINAICO modules are designed to meet the requirements for the IEC 61215, IEC 61730 and UL 1703 standards for operation in a temperate climate (the module operating temperatures are between -40 °C and +85 °C). Hazardous voltages (IEC 61730: higher than 50V DC;... -
Page 8: Module Handling
WINAICO Pallets can be stacked once on top for storage. Do not stack more than two pallets high Leave modules in packaging until they are ready for install WINAICO is a trademark of Win Win Precision Technology Co., Ltd. SIM2205-01(EN) www.winaico.com... -
Page 9: Unpacking
Orientation The performance of WINAICO Panels is dependent on the available solar resource, as well as their positioning in relation to the movement of the sun. Optimal panel tilting will be determined by the installation location, local siting restriction, and the load profile or desired generation profile. Your local WINAICO office can assist with optimum system design. -
Page 10: Mounting And Installation
The solar installation should be mounted such that as little snow as possible can remain on the modules. Solar modules from WINAICO are certified for snow loads up to 5400 Pa. -
Page 11: 6.1 Mechanical Module Mounting
6.1 Mechanical module mounting WINAICO modules are suitable for both vertical and horizontal installation methods due to their high degree of stability. The modules must be clamped in place at a minimum of 4 points. Examples of correct mounting methods: clamps and mounting with screws. - Page 12 Design Load (=Test load/1.5) (=Test load/1.5) Rear(pull) 1600 Pa Rear(pull) 1600 Pa Examples of correct mounting methods: clamps can be used only at the specified clamping area ( WINAICO is a trademark of Win Win Precision Technology Co., Ltd. SIM2205-01(EN) www.winaico.com...
- Page 13 1600 Pa (=Test load/1.5) Rear(pull) 1600 Pa (=Test load/1.5) Rear(pull) 1600 Pa Examples of correct mounting methods: clamps can be used only at the specified clamping area ( WINAICO is a trademark of Win Win Precision Technology Co., Ltd. SIM2205-01(EN) www.winaico.com...
-
Page 14: Maximum Mechanical Load
(including the electronic components contained within them) being damaged. WINAICO recommends the DC fuse should be used in each module string, in order to protect the solar modules in the WINAICO is a trademark of Win Win Precision Technology Co., Ltd. -
Page 15: Cables And Connectors
Connectors of different brands and models cannot be mated. ATTENTION: WINAICO connectors’ protection level is IP68. They cannot be under water for a long time. Sunlight exposure and immersion in water of the connectors should be avoided. Do not allow installed PV connectors and cables to be in contact with the roof surface or the ground. -
Page 16: Safety Precautions
The grounding hole is marked on the module frame. For grounding purposes, an M4 stainless screw, nut and washer are used. PV modules have an anodized coating on WINAICO is a trademark of Win Win Precision Technology Co., Ltd. SIM2205-01(EN) www.winaico.com... -
Page 17: Cleaning And Maintenance
Please observe the national standards when grounding. If national standards do not require grounding, WINAICO still recommends all PV module frames to be grounded to ensure the voltage between the exposed metal parts (ex. frame) and earth ground is zero in all circumstances. -
Page 18: Liability Disclaimer
As compliance with this user information and the conditions and methods for the installation, operation, use and maintenance of the modules from WINAICO cannot be checked or monitored, WINAICO shall assume no liability for damages resulting from improper use, faulty installation, operation, use or maintenance.
