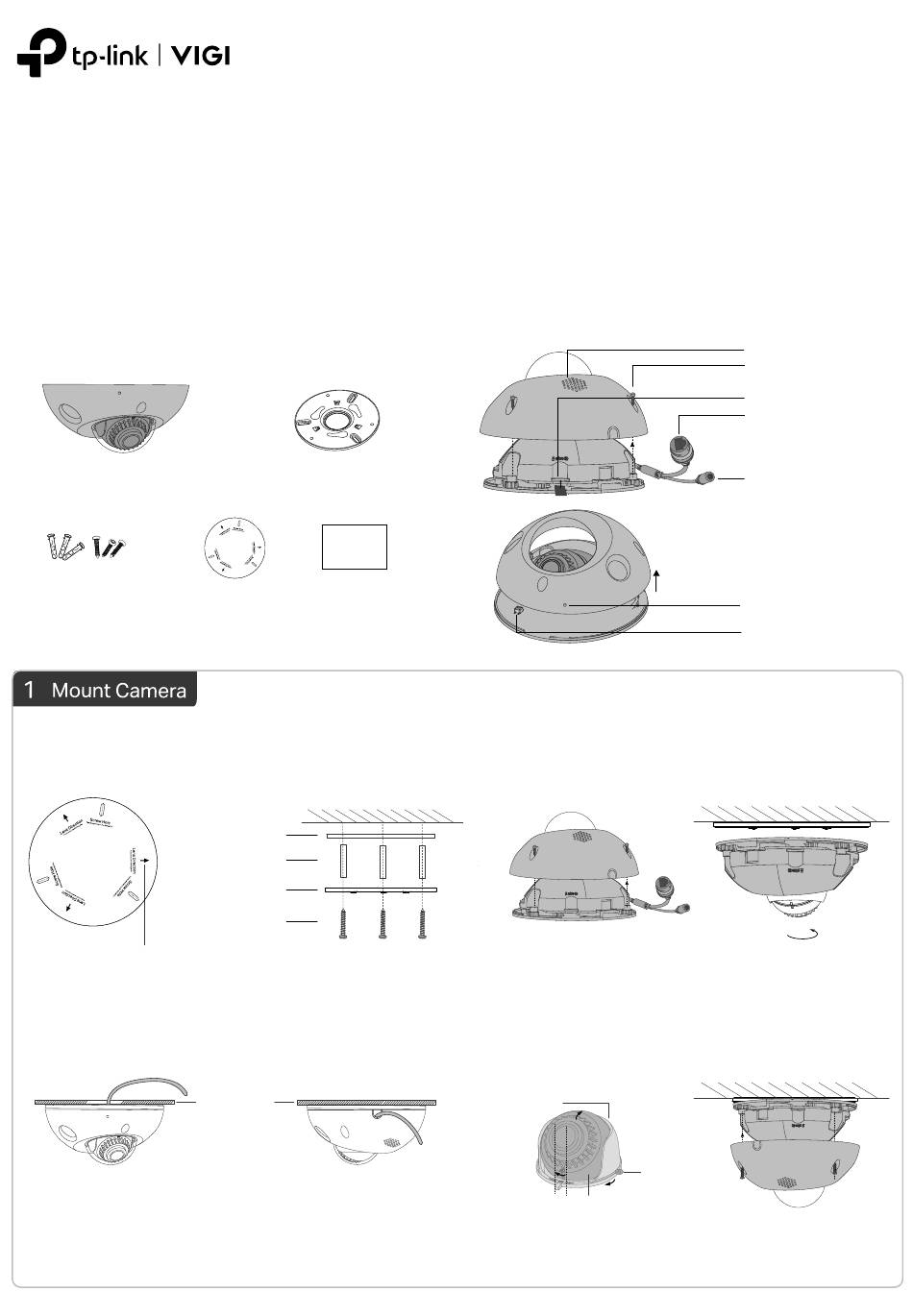

TP-Link VIGI C230I Mini Quick Start Manual

Quick Start Guide
3MP Mini Dome Network Camera
*Images may differ from actual products.
Package Contents
Network Camera
Anchors and Screws
Mounting Template
1. Stick the mounting template to the desired mounting place.
Drill 3 screw holes according to the template, then install the
mounting bracket.
Point one of the arrows on the
mounting template in the direction
of the lens and stick it to the
ceiling/wall.
2. Decide how to route the cable through the ceiling/wall.
Route the cable through the
round hole in the middle of
the upper mounting bracket
Mounting Bracket
Quick
Start
Guide
Quick Start Guide
Mounting Template
Anchor
Mounting Bracket
Self-tapping Screw
Install mounting bracket
Ceiling or Wall
Knock out the cable hole on the
side and route the cable from
the side
Safety First:
• Make sure your power supply matches your camera.
The camera's standard power supply is 12V DC or
PoE (802.3af/at). The power source should meet LPS,
PS2, and other requirements according to IEC
62368-1.
• Make sure that the wall is strong enough to
withstand 4 times the weight of the camera and
mounting bracket.
• If you are uncertain or uncomfortable performing the
installation, consult a qualified electrician.
Appearance
3. Loosen the three screws on the side of the camera to
remove the cover. Push the camera upwards and rotate
the camera clockwise to snap it into the mounting bracket.
Remove the cover
4. Loosen the lens screw, rotate the lens base to adjust the
angle of the lens as desired, and then tighten the lens screw.
Tighten the side screws to secure the cover.
Lens Base
Lens Screw
Dome
Adjust lens angle
Note: You can also slightly adjust the direction of the dome, but make sure that the
arrow symbol on the dome does not exceed the notch on the lens base.
Speaker
Side Screws
Loosen to remove the cover.
Micro SD Slot
RJ45 Ethernet Port
(supports PoE)
Power Supply Interface
(12V DC)
Microphone
Reset Button
Press for 5 seconds to reset the
camera to factory settings.
Snap the camera into
the bracket
Reinstall the cover
