JVD ZEPHYR 115V Installation And User Manual

Automatic hand dryer

Réf. 2 40 2016

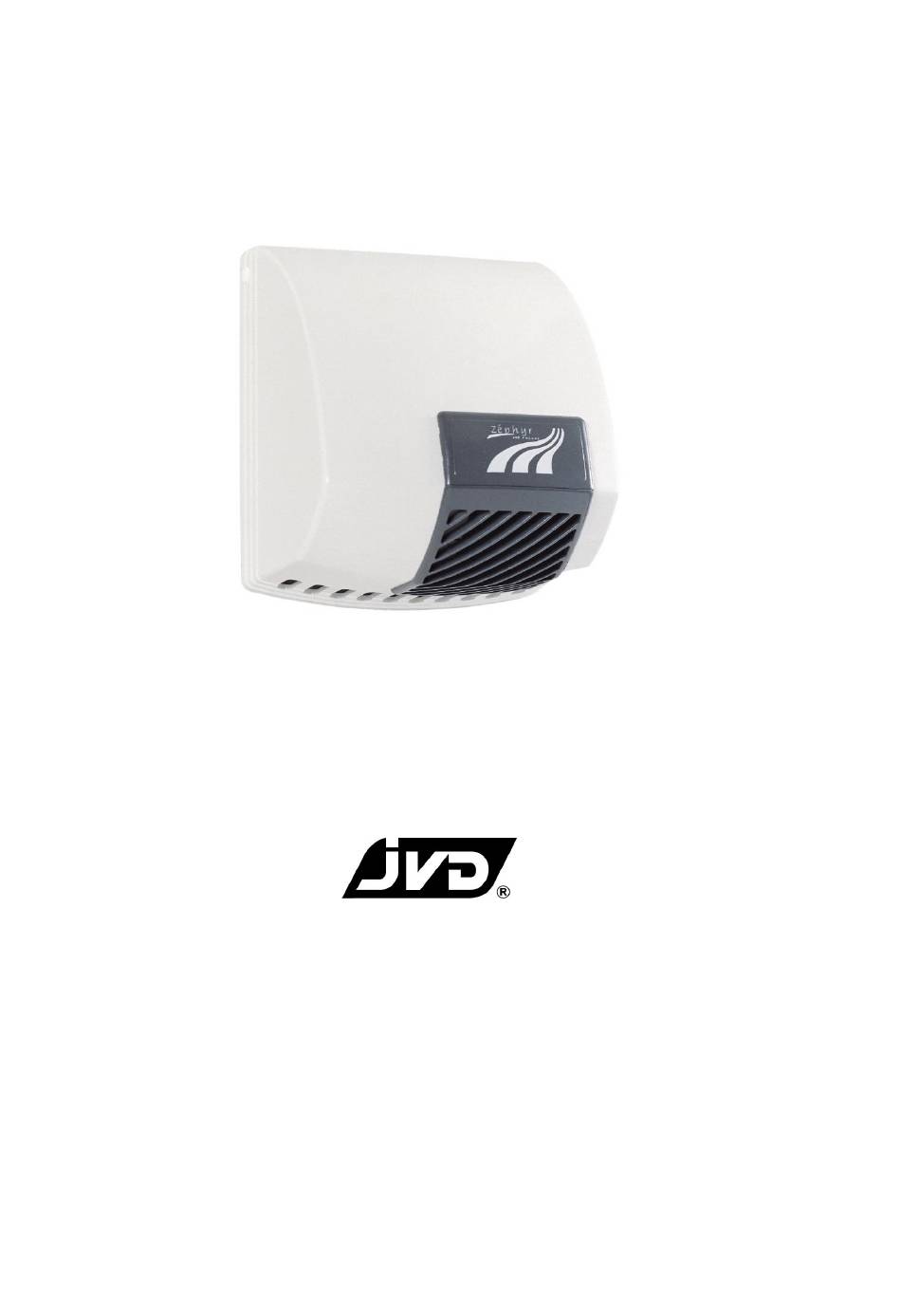

AUTOMATIC HAND DRYER

ZEPHYR 115V

Model

Installation and user guide

Read and save these instructions

Last update : 01/08/2016

3 RUE DES BRECHES – 44400 REZE - FRANCE

Tél. +33 (0)2 40 75 98 20

www.jvd.fr

Read this manual carefully before using the appliance to make sure that it is

Used properly and in complete safety.

Keep this manual in a safe place for future reference

Table of Contents

Need help?

Do you have a question about the ZEPHYR 115V and is the answer not in the manual?

Page 1 Réf. 2 40 2016 AUTOMATIC HAND DRYER ZEPHYR 115V Model Installation and user guide Read and save these instructions Last update : 01/08/2016 3 RUE DES BRECHES – 44400 REZE - FRANCE Tél. +33 (0)2 40 75 98 20 www.jvd.fr Read this manual carefully before using the appliance to make sure that it is used properly and in complete safety.
Page 2 IMPORTANT SAFETY PRECAUTIONS - Never attempt to install the appliance yourself, unless you are a suitably qualified technician. Doing so may affect its operation and safety. - This appliance must be installed by a qualified technician. Incorrect electrical connection can result in electrocution or short circuits. - Never take off the cover when the appliance is connected.
Page 3 - Places where corrosive or neutral gases are present. - At less than 20m or more than 2000m above sea level. INFORMATION FOR INSTALLATION - Use a monophasic AC current of 110V-120V / 60 Hz. - Use a power supply cable with conductors with a cross-section of 2x18 AWG. - Phase and neutral are connected without any polarity on the internal connector.
Page 4 146 mm 184 mm 4 fixing points The appliance automatically starts when you put your hands under the unit. ADJUSTMENT OF THE SENSITIVITY The sensitivity of the appliance can be adjust with the potentiometer. Use a little screwdriver. When you turn clockwise the hair dryer will be more sensitive. If you turn anticlockwise the hair dryer will be less sensitive.
