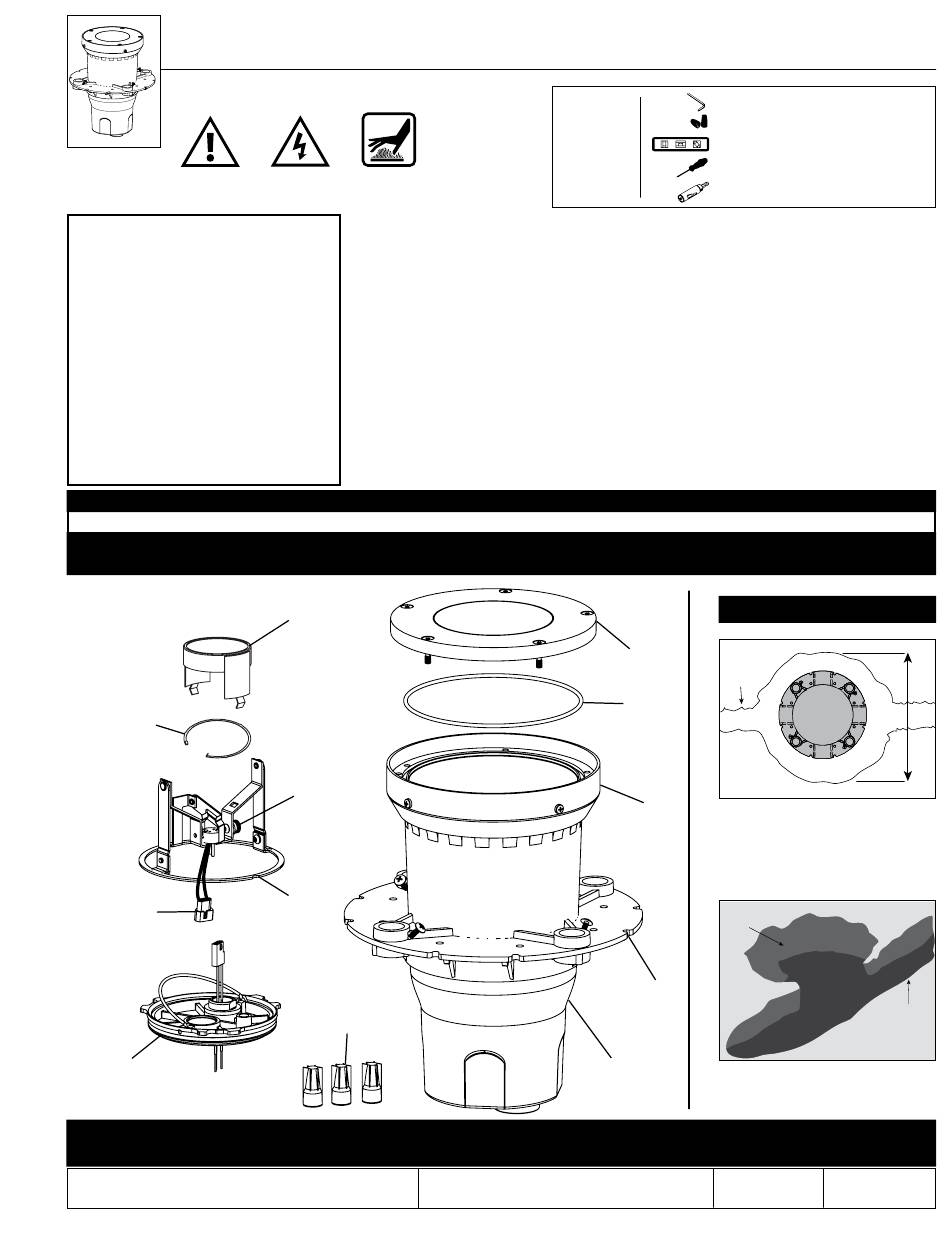

B-K lighting HP2 Installation Instructions Manual

Remote Transformer Installation Instructions
Warning
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT
SAFETY INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
Proper soil preparation is recommended before installation. See the DIG-IT guide at
Optional Accessory
Retaining Clip
Quick
Disconnect
HydroLock Plate
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
High Voltage Hot Surface
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT LISTINGS AND CERTIFICATIONS
· Suitable for wet locations · Suitable for recessed in ground locations
www.bklighting.com/collaterals/install/digit.pdf for more information.
Holder
Thumbscrew
Opti Lock
Assembly
Waterproof
Wire Connectors
INSTRUCTIONS
40429 Brickyard Drive • Madera, CA 93636 • USA
Deep Housing - Standard MR16
NEEDED
FOR
INSTALLATION:
SAFETY AND INSTALLATION INSTRUCTIONS
Faceplate
O-Ring
Concrete Pour
Collar (CPC)
Stability Flange
HP2 Housing
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
1/8" Allen Wrench
Waterproof Wire Connectors
Level
Phillips Screwdriver
7/8" Hole Saw
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type
of power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause
an unsafe condition and void product warranty.
Soil Prep
Conduit
trench
A. Determine Soil Type by referencing
DIG-IT Guide.
B. Dig hole 18" wide and 20" deep.
Excavated
for Housing
C. Prep soil according to DIG-IT Guide.
RELEASE DATE REFERENCE NUMBER
10/06/2021 INS-1344-00
HP2
18"
Dia.
Conduit
Trench
