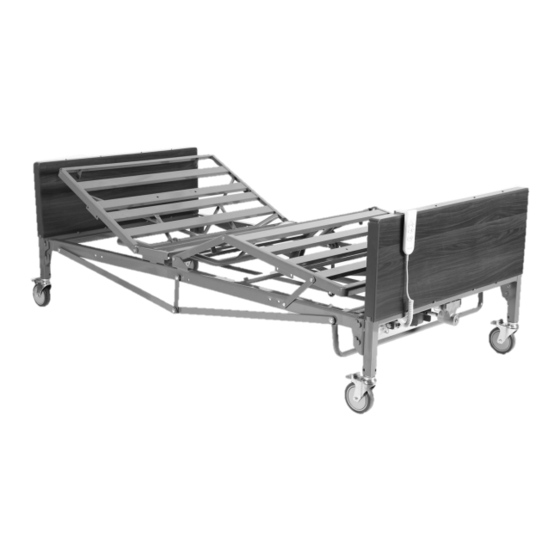

Costcare Bariatric B142C User Manual

Full electric home care bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

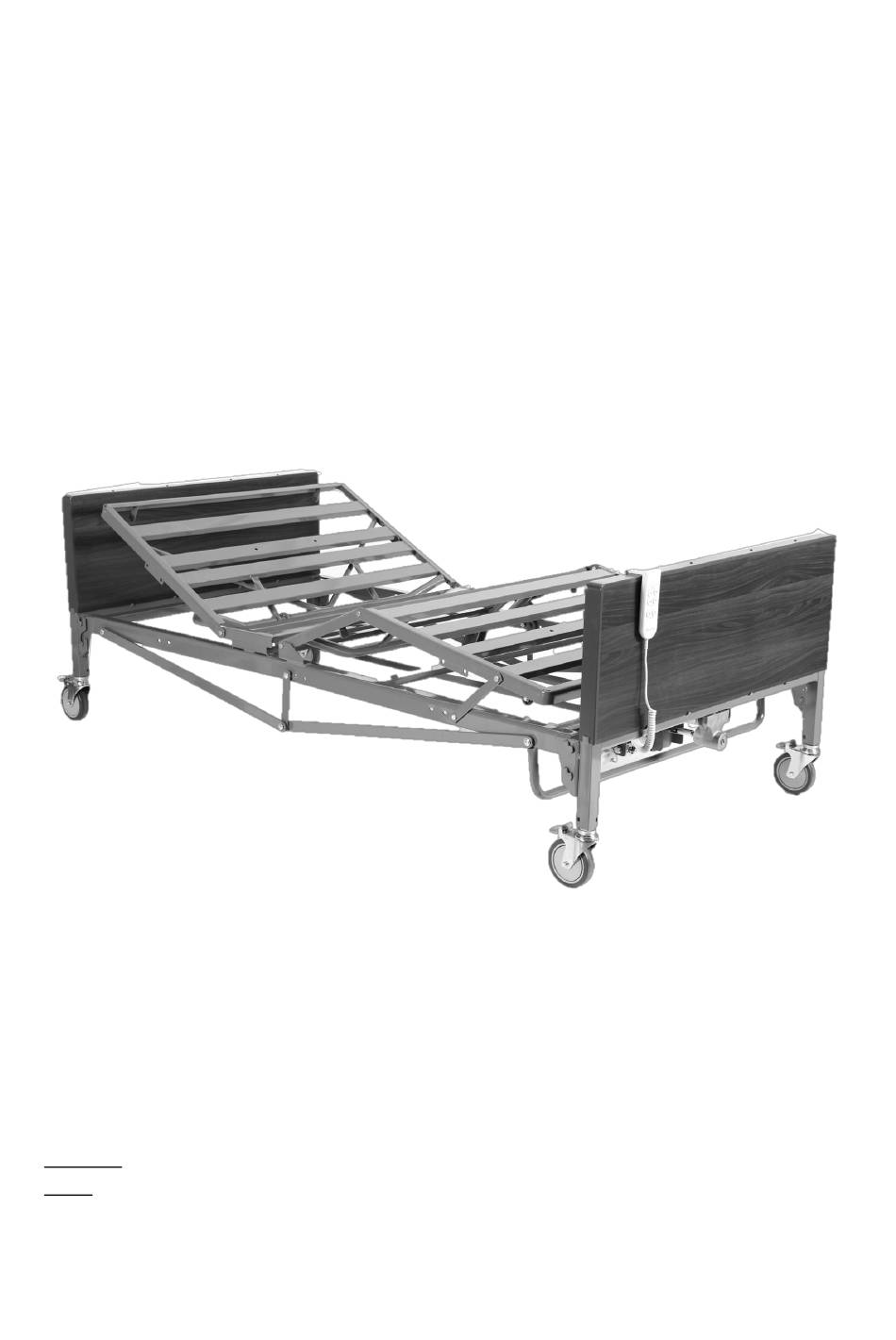

B142C
Full Electric Home Care Bed
Bariatric
User Manual
DEALERS: This manual MUST be given to the user of the bed.
USER: Before using this bed, read this manual and save for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bariatric B142C and is the answer not in the manual?

Questions and answers

Related Manuals for Costcare Bariatric B142C

Summary of Contents for Costcare Bariatric B142C

  • Page 1 B142C Full Electric Home Care Bed Bariatric User Manual DEALERS: This manual MUST be given to the user of the bed. USER: Before using this bed, read this manual and save for future reference.

  • Page 2: Table Of Contents

    Table of Contents GENERAL WARNINGS .........................2 ............................ 2 SSEMBLING THE ............................2 PERATING THE .......................... 2 ERFORMING AINTENANCE ..........................3 LECTRICAL AND ARTHING ..............................3 ISPOSAL ........................3 ADIO REQUENCY NTERFERENCE EQUIPMENT ASSEMBLY ........................4 ............................. 4 NPACKING THE ............................ 5 SSEMBLING THE EQUIPMENT OPERATION ........................9 .......................

  • Page 3: General Warnings

    1.0 GENERAL WARNINGS Assembling the Bed DO NOT overtighten the mounting hardware as this will damage the mounting brackets. DO NOT modify this equipment without authorization of the manufacturer. Doing so will void the warranty. DO NOT use accessories that are not designed or approved for use with the bed. Operating the Bed DO NOT operate your bed until it is fully assembled and checked.

  • Page 4: Electrical And Earthing

    Regular maintenance of bed and accessories is necessary to ensure proper operation. DO NOT overtighten mounting hardware. This will damage mounting brackets. Electrical and Earthing EARTHING DO NOT, under any circumstances, cut or remove the earthing prong from any plug. Some devices are equipped with three-prong (earthing) plugs for protection against possible shock hazards.

  • Page 5: Equipment Assembly

    2.0 EQUIPMENT ASSEMBLY 2.1 Unpacking the Bed 1. Unpack the components from the shipping cartons. 2. Upon unpacking your bed, the package should contain all of the following components: 1 Instruction Manual 1 Foot board 1 Head board 1 Foot frame section 1 Head frame section 1 Hi-Lo motor (Pre-assembled) 1 Length adjustable drive shaft...

  • Page 6: Assembling The Bed

    2.2 Assembling the Bed 2.2.1 Connecting the Two Frames 1. Place both frames on its sides at approximately 90° to one another. Foot Frame Head Frame 2. Hook the head frame mounting hooks to the foot frame mounting rivets. 3. Straighten the connected frames. 2.2.2 Installing the Head Drive Shaft 1.
  • Page 7 2.2.3 Installing the Casters to the Head and Foot Boards 1. Insert the shaft of the caster into the caster socket of each bed leg. Ensure the stem is fully inserted into the socket. 2. To prevent excess movement of the bed during assembly, lock the casters by pushing down on the caster lock.
  • Page 8 2.2.5 Installing the Frame Support 1. Remove the zip ties holding the frame support bracket assembly. 2. Attach the center vertical support bracket to the bed using the nut and bolt supplied. Place a washer between the support bracket and the bed. 3.
  • Page 9 2.2.6 Installing the Hi/Low Motor 1. The Hi-Low motor is pre-installed on the bed. Make sure the slot on the Hi/Low Motor engages the roll pin on the gearbox axle. 2.2.7 Installing the Center Drive Shaft 1. Extend the drive shaft until it locks on to the indicated hole on the outer tube. 2.

  • Page 10: Equipment Operation

    3.0 EQUIPMENT OPERATION 3.1 Using the Hand Control Pendant The UP arrow ( ) indicates raising the corresponding parts of the bed. The DOWN arrow ( ) indicates lowering the corresponding parts of the bed. 3.2 Using the Manual Hand Crank In the event of power outage or motor disfunction, use the hand crank to lower raise/lower the bed.

  • Page 11: Preventative Maintenance

    4.0 PREVENTATIVE MAINTENANCE A. Cleaning – It is recommended that the following cleaning procedures be conducted between uses and at least once a year. 1.1. Unplug the power code of electric beds before performing maintenance. 1.2. Wipe down with disinfectant. Allow to dry completely. CAUTION: Avoid spraying water directly into the electric components to avoid damage.

  • Page 12: Troubleshooting Guide

    5.0 TROUBLESHOOTING GUIDE SYMPTOMS POSSIBLE FAULTS POSSIBLE SOLUTIONS Bed idle when hand pendant Adjustment may be at the Check if other buttons are buttons are pressed. maximum or minimum working. position Power cord not connected or Ensure the power cord is damaged properly connected to the electrical socket and the bed.

  • Page 13: Limited Warranty

    In the event of a defect covered by this warranty, Costcare will, at Costcare's option, repair or replace the device. The warranty provides only for replacement of defective parts and does not cover shipping and labor charges.

  • Page 14: Appendix - Service Record

    APPENDIX – SERVICE RECORD DATE PERFORMED BY CONDITION REPORT...
