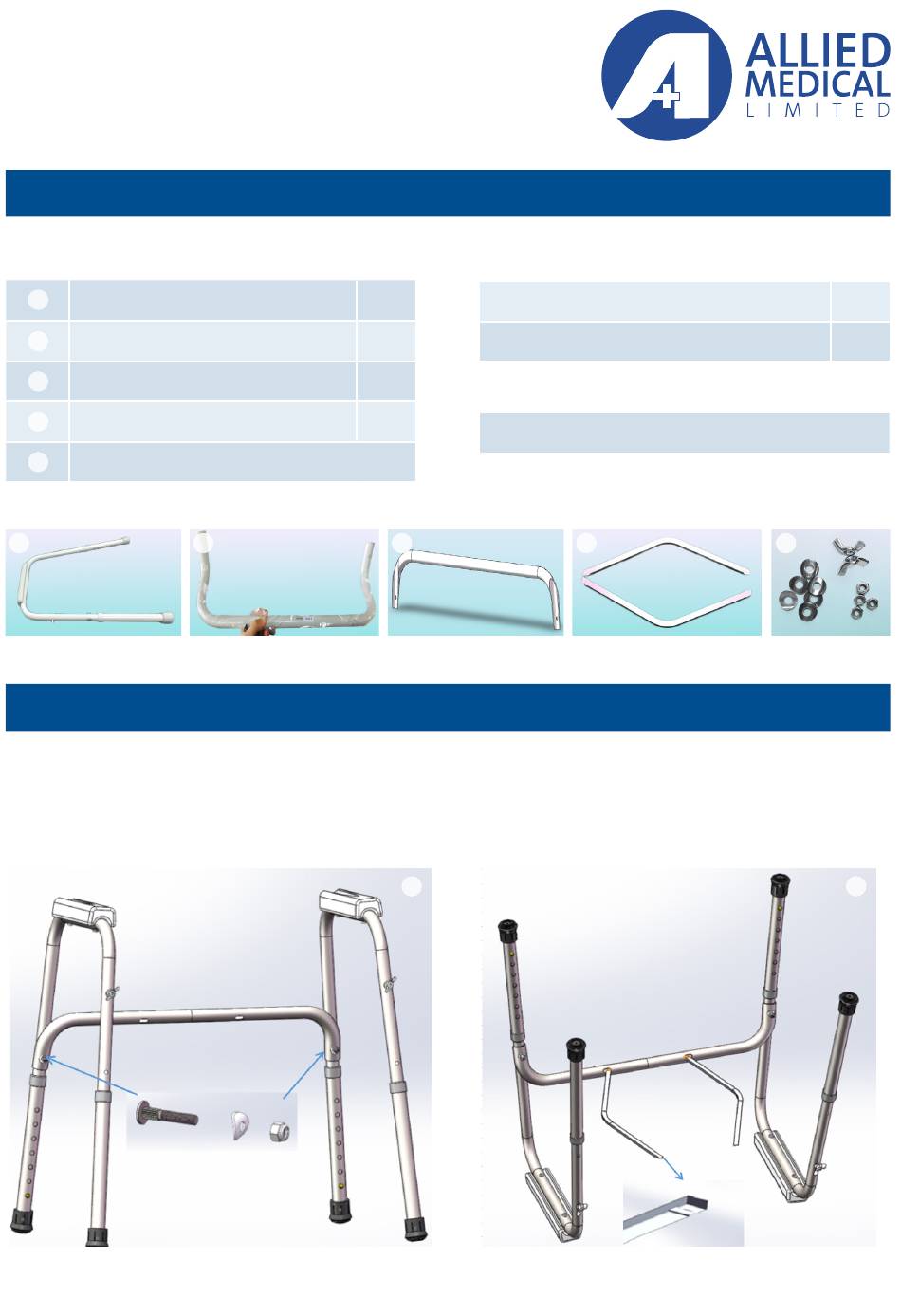

Assembly Instructions
AML20505 - 3 in 1 Commode Chair
Parts included:
a
Armrest tube
Backrest tube
b
c
Seat support tube
d
Bucket support plate
e
Bag of hex nuts, wing nuts & washers
a
Instructions
1.
Assemble one of the seat support tubes to the
armrest tubes using screws (already inserted,
remove plastic sleeves), hex nuts and washers.
Tighten with a spanner.
b
x2
Seat and lid
x1
Bucket and splash guard
x2
Tools required:
x2
Spanner to tighten screws
c
2.
Put both bucket support plates into the oval
holes on the seat support tube with the grooved
sides facing up towards the toilet seat.
1
(not pictured)
(not pictured)
d
x1
x1
e
2
