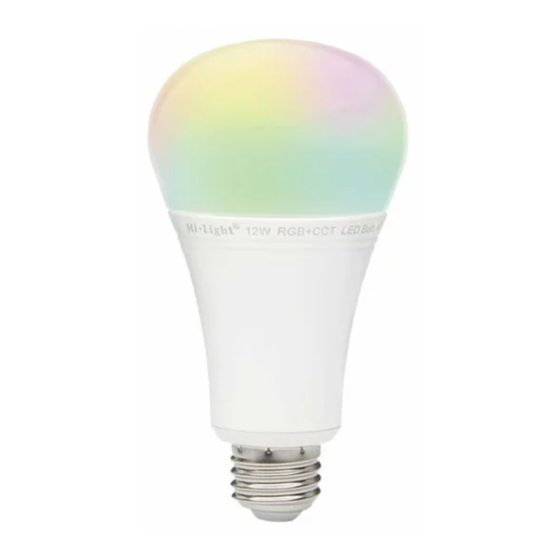

Mi-Light FUT105 12W RGB+CCT LED Bulb Manual

Product Introduction

12W RGB+CCT LED Bulb is a newest developed smart lighting system. This lamp is with 16million colors and 9 dynamic modes controlled by wireless remote, and with wireless control, auto-synchronization function. Also smartphone and 4G controllable with "Mi. Light" WiFi bridge. The lamp is made of aluminum alloy, and imported PC cover with high light transmitting rate, eye-protection function, and with fashionable appearance, durablility, energy saving and environment protection, etc features. Widely used on home, hotel, shopping mall and supermarket, etc.

Technical Parameters

Remote Control Button Introduction

FUT089 Button Introduction

1. Long press "Master OFF" or "Zone OFF" to night light mode.
2. Under white light mode, touch "Saturation / CCT" to change color temperature Under color light mode, touch "Saturation / CCT" to change color saturation.
3. Touch "Color Ring" to change the colors.
4. Press "Speed+" to accelerate the dynamic mode speed continously until to fastest speed.
5. Press "Speed-" to lower the dynamic mode speed continously until to lowest speed.

FUT02 Button Introduction

1. Long press "Master OFF" or "Zone OFF" to night light mode.
2. Touch "Color temperature line" to white light mode and adjust color temperature.
3. Touch "Color Ring" to change the colors.
4. Press "Speed+" to accelerate the dynamic mode speed continously until to fastest speed.
5. Press "Speed-" to lower the dynamic mode speed continously until to lowest speed.

FUT089 / FUT092 Link/Unlink

Link: Switch off the power, then switch on again after 5 seconds, press "" 3 times within 3 seconds; the light will blink 3 times slowly when it is done.
Unlink: Switch off the power, then switch on again after 5 seconds, press corresonding "" or master ON button 5 times within 3 seconds; the light will blink 10 times quickly when it is done.

B8 Link/Unlink

Link: Click the zones button you want to link, the corresponding indicating lamp will shine. Turn off the power, then turn on again after 5 seconds, press " " 3 times within 3 seconds. The LED light blinks 3 times slowly when it is done.
Unlink: Click the zones button you want to link, the corresponding indicating lamp will shine. Turn off the power, then turn on again after 5 seconds, press " " 5 times within 3 seconds. The LED light blinks 10 times swiftly when it is done.

Dynamic Mode Sheet

1. When install the light, pls switch off the power to make sure the safty.
2. The working power is high voltage alternating current, so it must be far away from people and must with ground connection.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Mi-Light FUT105 12W RGB+CCT LED Bulb Manual
