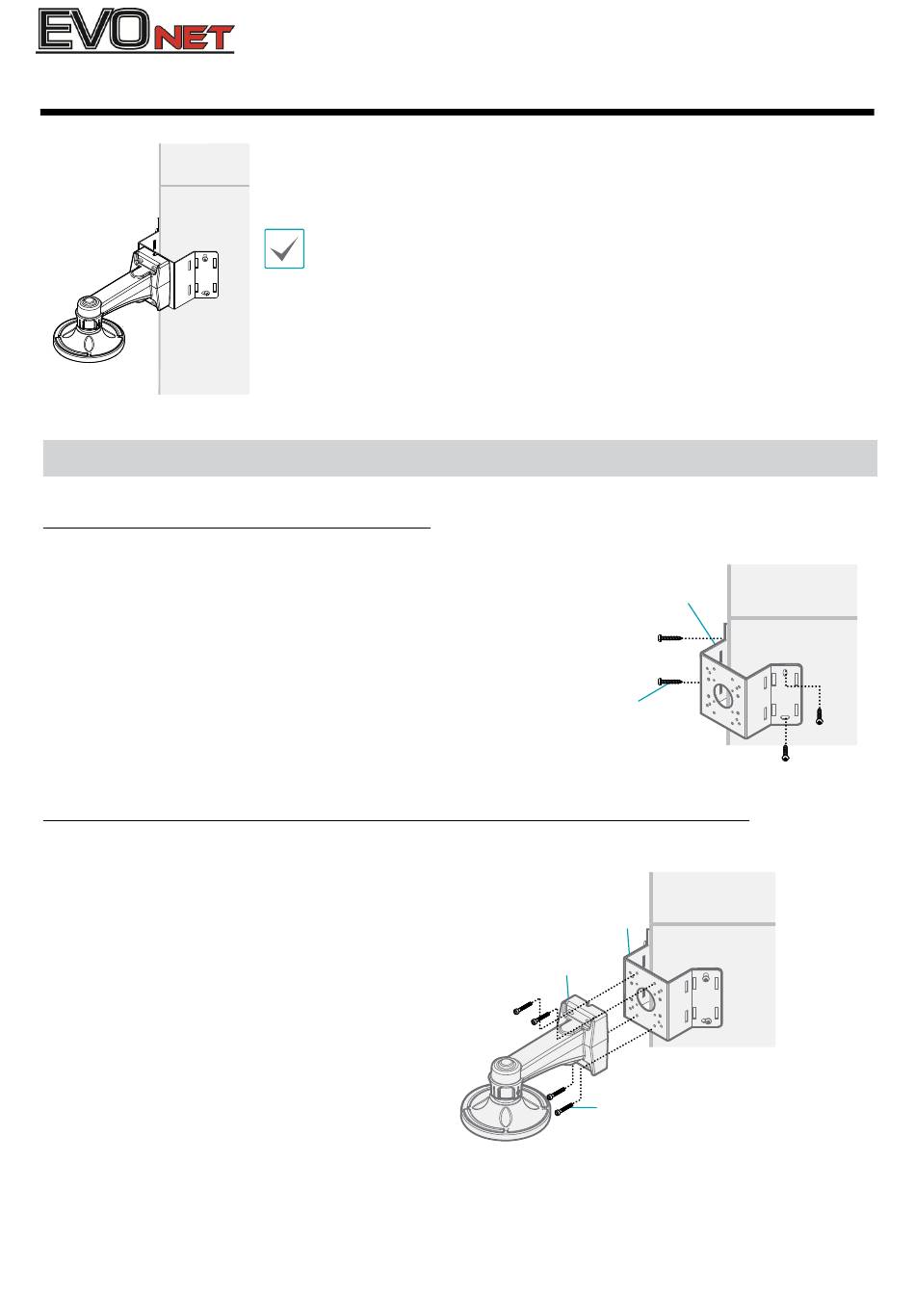

S47762 EVOnet-RM2000 INSTALLATION MANUAL
Mounting
Mount the bracket to the corner as follows:
1
Mount bracket 1 to the corner by
using the anchors and screws.
Connect Your Camera (EVOnet series 4) to the bracket as follows:
2
Mount bracket 2 (EVOnet-WM2000 model)
to bracket 1 by using the screws. The
bracket 2 is sold separately.
This manual is intended for users of the EVOnet-RM2000 corner
mounting bracket. It includes instructions for mounting the EVOnet-
RM2000 corner mounting bracket to a corner.
• This bracket is intended to be used with the EVOnet-WM2000
Bracket and the EVOnet series cameras. Do not use it with other
models of cameras.
• This installation should be performed by a qualified service
personnel in conformance to all local codes.
• You may need to reinforce the corner. If the corner is not strong
enough to support the camera, the camera may fall.
• Do not use this product for other purposes.
Bracket 2 (EVOnet-WM2000)
Bracket 1
Tapping Screw #8x25 4EA
Bracket 1
Hexagon Socket Screw M5X30, 4EA
