EVOnet S47761 -LM2000 Installation Manual

S47761 EVOnet-LM2000 INSTALLATION MANUAL
Mounting
Mount the bracket to the pole as follows:
1
Mount bracket 1 to the pole. Fasten
bracket 1 to the pole by adjusting
the strap length. You can adjust
the strap length by tightening or
loosening the clamp screw.
Connect your camera (EVOnet series 4) to the bracket as follows:
2
Mount bracket 2 (EVOnet-WM2000
model) onto bracket 1 by using
the screws. The bracket 2 is sold
separately.
This manual is intended for users of the EVOnet-LM2000 pole
mounting bracket. It includes instructions for mounting the
EVOnet-LM2000 pole mounting bracket to a pole.
• This bracket is intended to be used with the EVOnet-WM2000
Bracket and the EVOnet series cameras. Do not use it with other
models of cameras.
• This installation should be performed by a qualified service
personnel in conformance to all local codes.
• You may need to reinforce the pole. If the pole is not strong
enough to support the camera, the camera may fall.
• Do not use this product for other purposes.

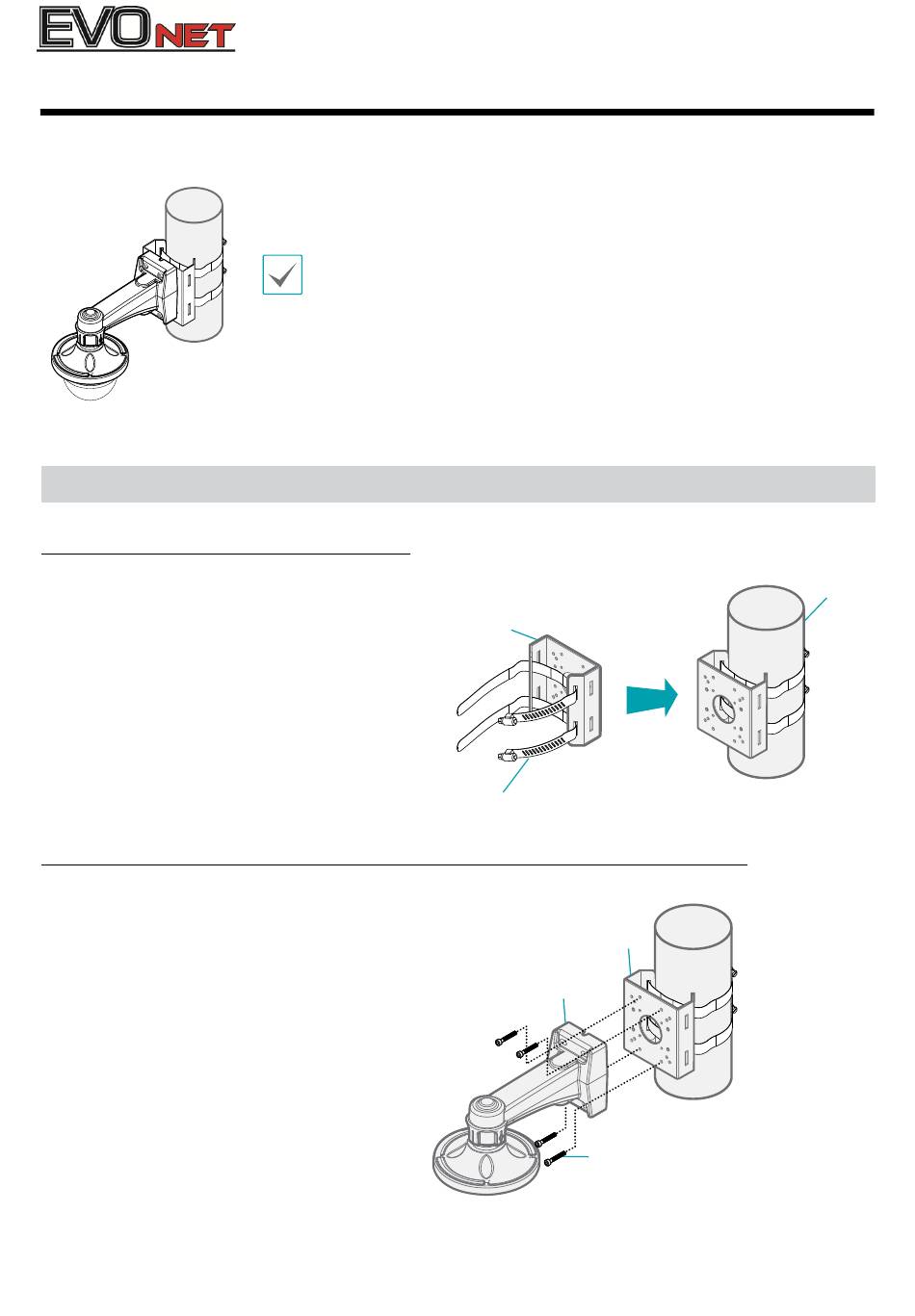

Bracket 2 (EVOnet-WM2000)
Bracket 1
Strap
Bracket 1
Hexagon Socket Screw M5X30, 4EA
Pole
