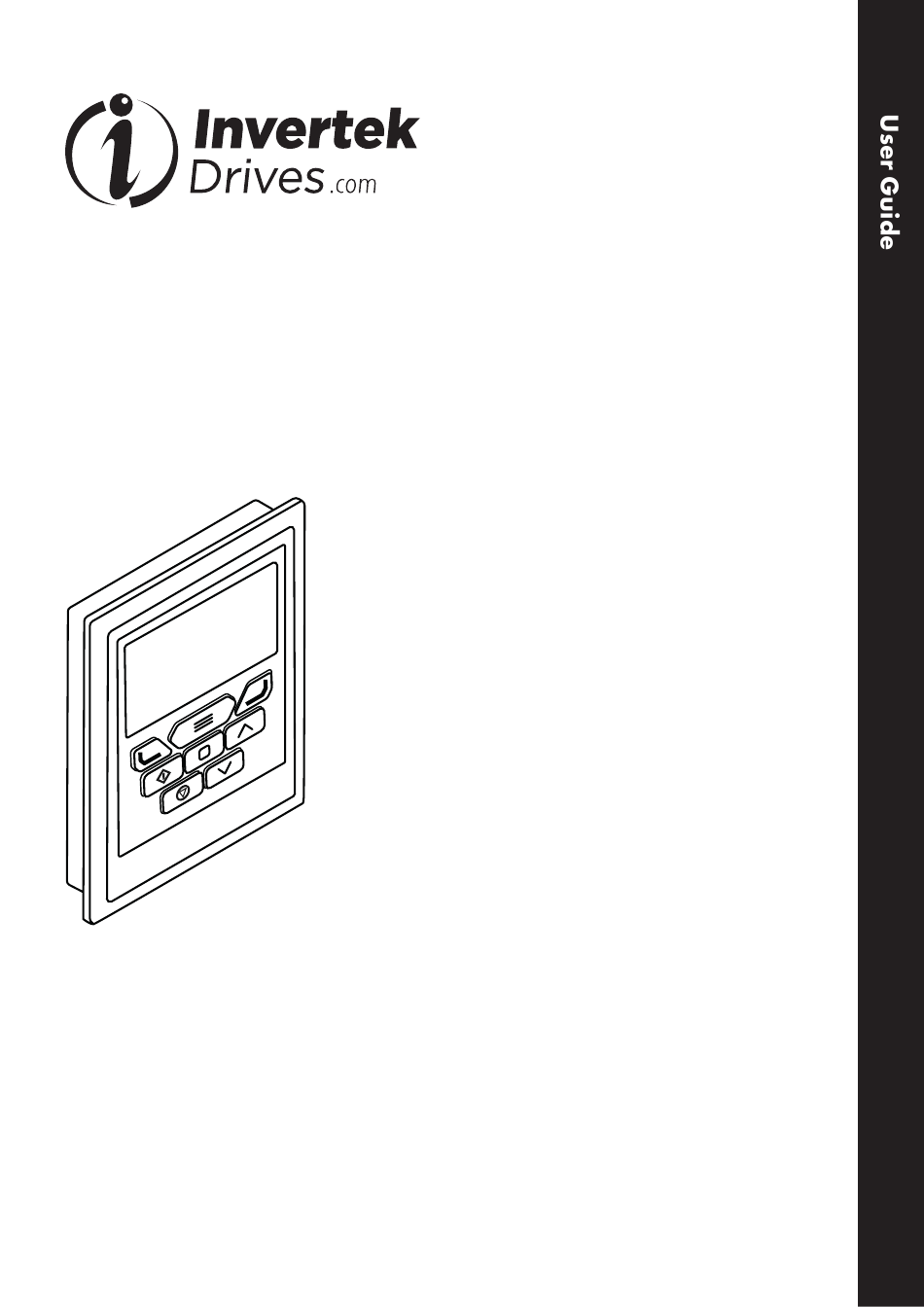

- Page 1 OPTIPAD TFT Remote Keypad IP55...
- Page 2 General Specification Compatible Drives: ODE-2, ODE-3, ODP-2, ODL-2, ODV-3, CV Signal Interface: Standard 8-way RJ45 connector Supply Input: 24V + / - 10%, DC, 30mA RS485 Signal: Industry standard 2-wire +5V differential Environmental: Operational: -10 … 50°C Storage: -40°C … 60°C Relative Humidity: <...
- Page 3 Allowed System Configurations Different drive models can be used on the same Optipad network provided a unique communications address is assigned to each. NOTE Cannot be used with Master – Slave or Cascade Control Keypad and Display Layout The illustration below explains the main features of the Optipad. Please note that some features and display messages are specific to certain variants of the Optidrive family.
- Page 4 Easy Startup To setup the Optidrive communication address By default, the Optipad will try to communicate with the drive that has Address 1 in the network after powering up for the first time. The Optipad will display “Scanning for Drive 01.” after power up, which indicates that the Optipad is searching for the drive with the correct drive address in the network.
- Page 5 Changing the Display Language Select Language Select Language Español Español STOP Deutsch Deutsch English English Hold down the Start and Use the Up and Down Press the Navigate button Up keys for >1s arrows to select a to select. language. Operating Displays Inhibit / Drive Stopped...
- Page 6 Switching Frequency Mains Loss Maintenance Reduction Time Elapsed Name 01 Name 01 Name 01 Name 23.7Hz 23.7Hz 23.7Hz 23.7Hz SF 15.3A 15.3A 6.9kW 15.3A 6.9kW 15.3A 6.9kW Switching frequency is The incoming mains The motor is in overload The user programmable reduced, due to high power supply has been drawing a current higher...
- Page 7 Drive Fault Messages and Trip Codes See Optidrive User Guide for further information. Further Status Messages and Troubleshooting Optipad uses various display messages to indicate different working status. See the following table for more information. Status Messages Message Explanation Scanning for Drive The Optipad is searching for the drive with address ‘xx’...
- Page 8 Ñ82-OPTFT-IN_V2.00[Ó 82-OPTFT-IN_V2.00 Invertek Drives Ltd. Offa's Dyke Business Park, Welshpool, Powys SY21 8JF United Kingdom Tel: +44 (0)1938 556868 Fax: +44 (0)1938 556869 www.invertekdrives.com...
