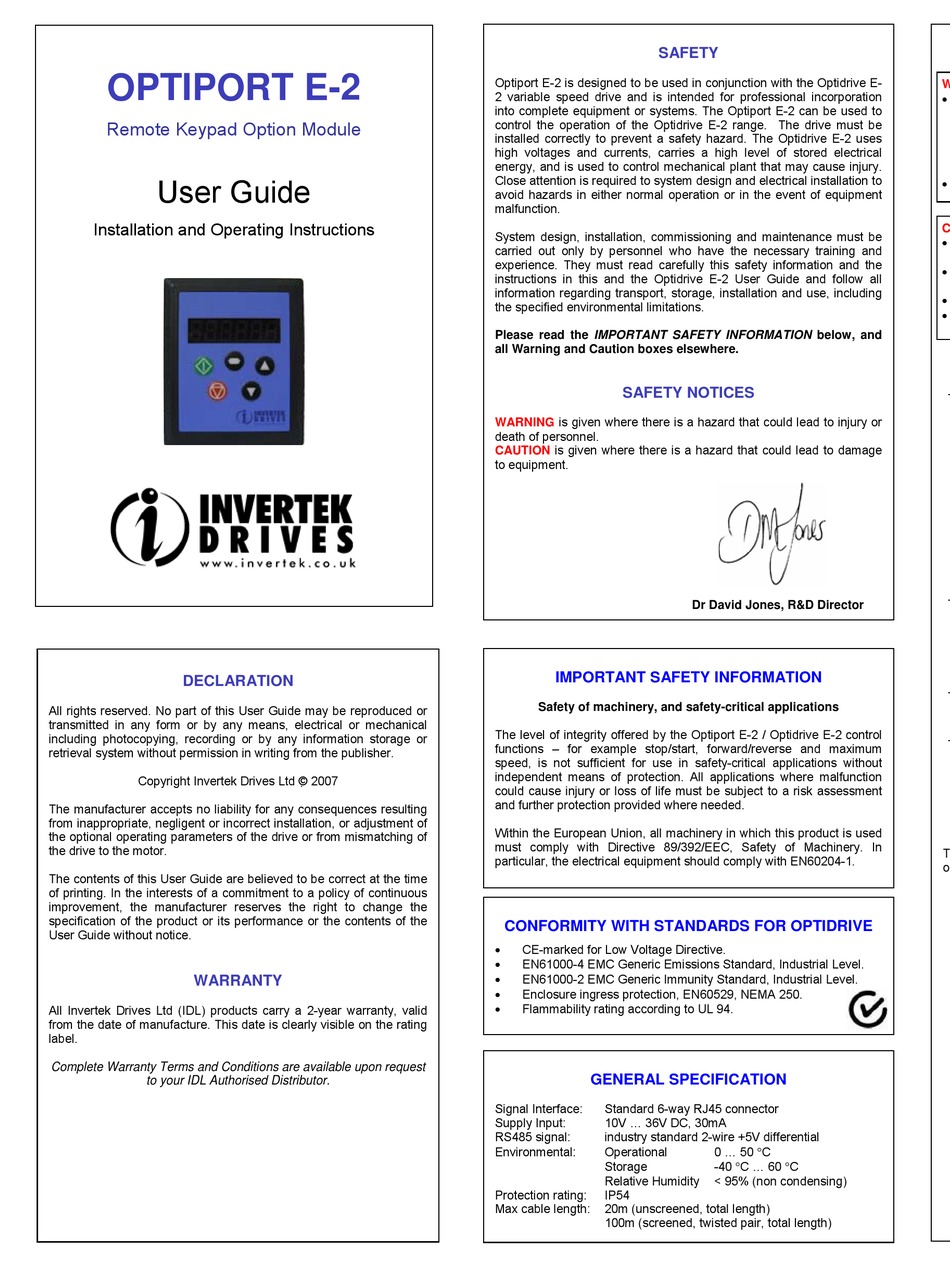

OPTIPORT E-2
Remote Keypad Option Module
User Guide
Installation and Operating Instructions
DECLARATION
All rights reserved. No part of this User Guide may be reproduced or
transmitted in any form or by any means, electrical or mechanical
including photocopying, recording or by any information storage or
retrieval system without permission in writing from the publisher.
Copyright Invertek Drives Ltd © 2007
The manufacturer accepts no liability for any consequences resulting
from inappropriate, negligent or incorrect installation, or adjustment of
the optional operating parameters of the drive or from mismatching of
the drive to the motor.
The contents of this User Guide are believed to be correct at the time
of printing. In the interests of a commitment to a policy of continuous
improvement, the manufacturer reserves the right to change the
specification of the product or its performance or the contents of the
User Guide without notice.
WARRANTY
All Invertek Drives Ltd (IDL) products carry a 2-year warranty, valid
from the date of manufacture. This date is clearly visible on the rating
label.
Complete Warranty Terms and Conditions are available upon request
to your IDL Authorised Distributor.
SAFETY
Optiport E-2 is designed to be used in conjunction with the Optidrive E-
2 variable speed drive and is intended for professional incorporation
into complete equipment or systems. The Optiport E-2 can be used to
control the operation of the Optidrive E-2 range. The drive must be
installed correctly to prevent a safety hazard. The Optidrive E-2 uses
high voltages and currents, carries a high level of stored electrical
energy, and is used to control mechanical plant that may cause injury.
Close attention is required to system design and electrical installation to
avoid hazards in either normal operation or in the event of equipment
malfunction.
System design, installation, commissioning and maintenance must be
carried out only by personnel who have the necessary training and
experience. They must read carefully this safety information and the
instructions in this and the Optidrive E-2 User Guide and follow all
information regarding transport, storage, installation and use, including
the specified environmental limitations.
Please read the IMPORTANT SAFETY INFORMATION below, and
all Warning and Caution boxes elsewhere.
SAFETY NOTICES
is given where there is a hazard that could lead to injury or
WARNING
death of personnel.
is given where there is a hazard that could lead to damage
CAUTION
to equipment.
IMPORTANT SAFETY INFORMATION
Safety of machinery, and safety-critical applications
The level of integrity offered by the Optiport E-2 / Optidrive E-2 control
functions – for example stop/start, forward/reverse and maximum
speed, is not sufficient for use in safety-critical applications without
independent means of protection. All applications where malfunction
could cause injury or loss of life must be subject to a risk assessment
and further protection provided where needed.
Within the European Union, all machinery in which this product is used
must comply with Directive 89/392/EEC, Safety of Machinery. In
particular, the electrical equipment should comply with EN60204-1.
CONFORMITY WITH STANDARDS FOR OPTIDRIVE
CE-marked for Low Voltage Directive.
EN61000-4 EMC Generic Emissions Standard, Industrial Level.
EN61000-2 EMC Generic Immunity Standard, Industrial Level.
Enclosure ingress protection, EN60529, NEMA 250.
Flammability rating according to UL 94.
GENERAL SPECIFICATION
Signal Interface:
Standard 6-way RJ45 connector
Supply Input:
10V ... 36V DC, 30mA
RS485 signal:
industry standard 2-wire +5V differential
Environmental:
Operational
Storage
Relative Humidity
Protection rating:
IP54
Max cable length:
20m (unscreened, total length)
100m (screened, twisted pair, total length)
Dr David Jones, R&D Director
0 ... 50 °C
-40 °C ... 60 °C
< 95% (non condensing)
