3-POINT PLUG AERATOR
safety
Assembly
Operating
Maintenance

Repair Parts

the fastest way to purchase parts www.speedepart.com
FORM NO. 49884 (4/26/07)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45-0381 and is the answer not in the manual?

Questions and answers

Related Manuals for Agri-Fab 45-0381

Summary of Contents for Agri-Fab 45-0381

  • Page 1: Repair Parts

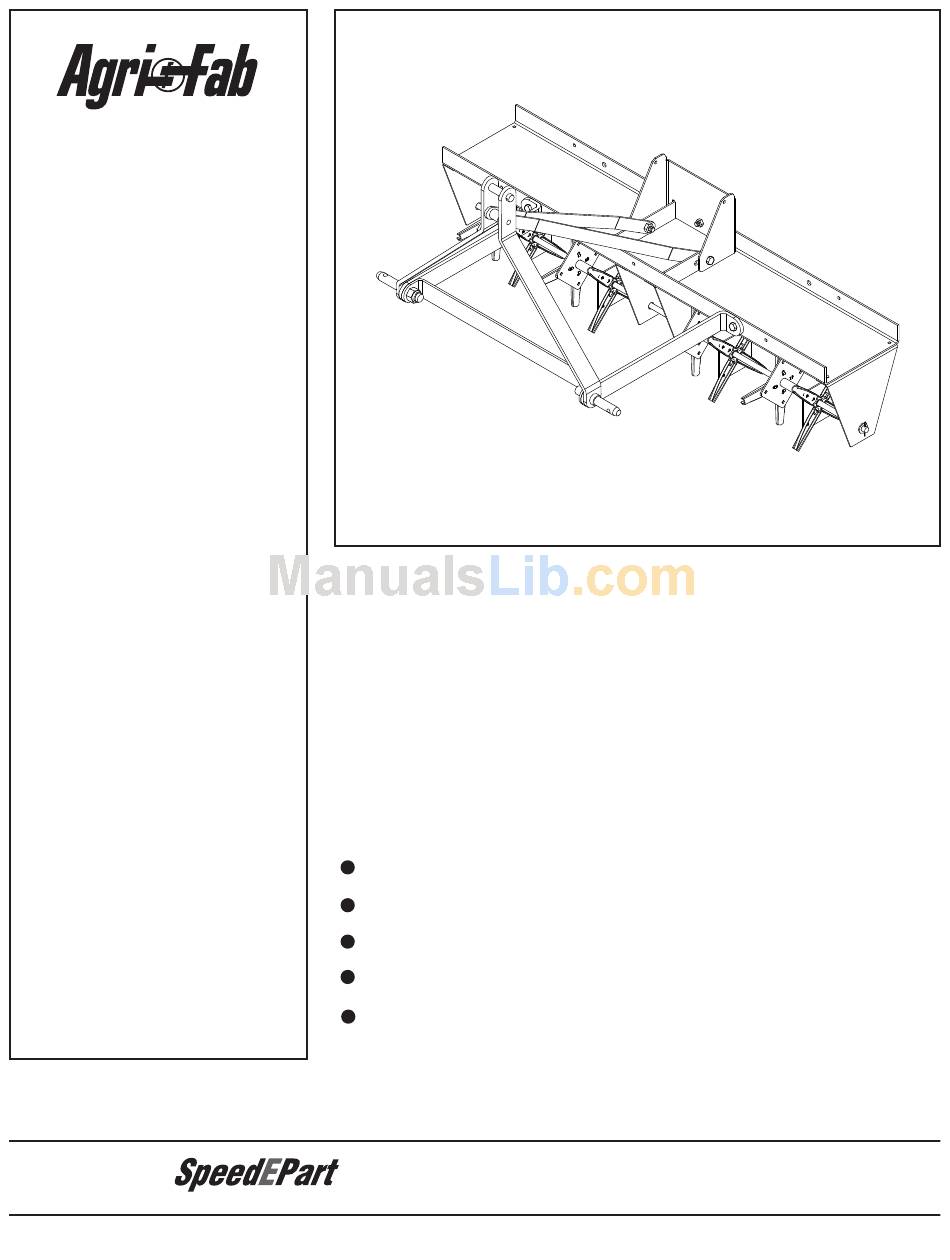

    ™ OwNERs MANUAL Model No. 45-0381 CAUTION: Read Rules for Safe Operation and Instructions Carefully PRINTED IN USA 3-POINT PLUG AERATOR safety Assembly Operating Maintenance Repair Parts the fastest way to purchase parts www.speedepart.com FORM NO. 49884 (4/26/07)

  • Page 2: Carton Contents

    Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. LOOK FOR THIs sYMBOL TO POINT OUT IMPORTANT sAFETY PRECAUTIONs. IT MEANs —...

  • Page 3: Hardware Pack

    HARDwARE PACK Ref. Qty. Description Hex Bolt, 1/2" x 3-1/2" Hex Bolt, 1/2" x 2-1/4" Hex Bolt, 1/2" x 1-1/4" Spacer, 2.38" Spacer, 1.65" Hitch Pin Spacer, 5.29" Hex Bolt, 3/8" x 1" Nylock Nut, 3/8" Nylock Nut, 1/2" Ref. Qty. Description Washer Cotter Pin, 1/8"...

  • Page 4: Tools Required For Assembly

    AssEMBLY INsTRUCTIONs TOOLs REQUIRED FOR AssEMBLY (2) Adjustable Wrench (2) 3/4" Open or Box End Wrench (2) 9/16" Open or Box End Wrench (2) 1/2" Open or Box End Wrench (1) Pliers 1. Push split bearings (M) into both ends of each double spool tube. See figure 1.
  • Page 5 4. Attach the weight bracket to the tray using a 3/8" x 1" bolt (H) and 3/8" nylock nut (I). Do not tighten yet. See figure 4. 5. Assemble the straps to the holes in the weight bracket and the tray that are aligned. Use two 1/2" x 2-1/4" bolts (B), .75"...

  • Page 6: Operation

    OPERATION BEFORE sTARTING • Mow the lawn and remove all loose clippings prior to use of the aerator. • If the soil is extremely hard and dry, it is recommended that it be sprinkled or watered down for one or two hours prior to aerating.
  • Page 7 NOTEs...
  • Page 8 REPAIR PARTs FOR 45-0381 3-POINT PLUG AERATOR...
  • Page 9 REPAIR PARTs LIsT FOR 45-0381 3-POINT PLUG AERATOR REF. PART QTY. DEsCRIPTION 64781 Tray Frame Assembly 25169 Mast Extension Strap 25158 Mast Side 25154 Cross Brace 25180 Mast Lift Strap 25751 Aerator Axle 65338 Spool Assembly (Double) 24924 Aerator Knife...
  • Page 10 NOTEs...

  • Page 11: Slope Guide

    sLOPE GUIDE (Keep this sheet in a safe place for future reference.) Use this guide to determine if a slope is safe for the operation of your vehicle and 3-point plug aerator. Refer also to the instructions in your vehicle owners manual.

  • Page 12: Repair Parts

    Agri-Fab, Inc. Unauthorized uses and/or reproductions of this manual will subject such unauthorized user to civil and criminal penalties as provided by the United States Copyright Laws.
