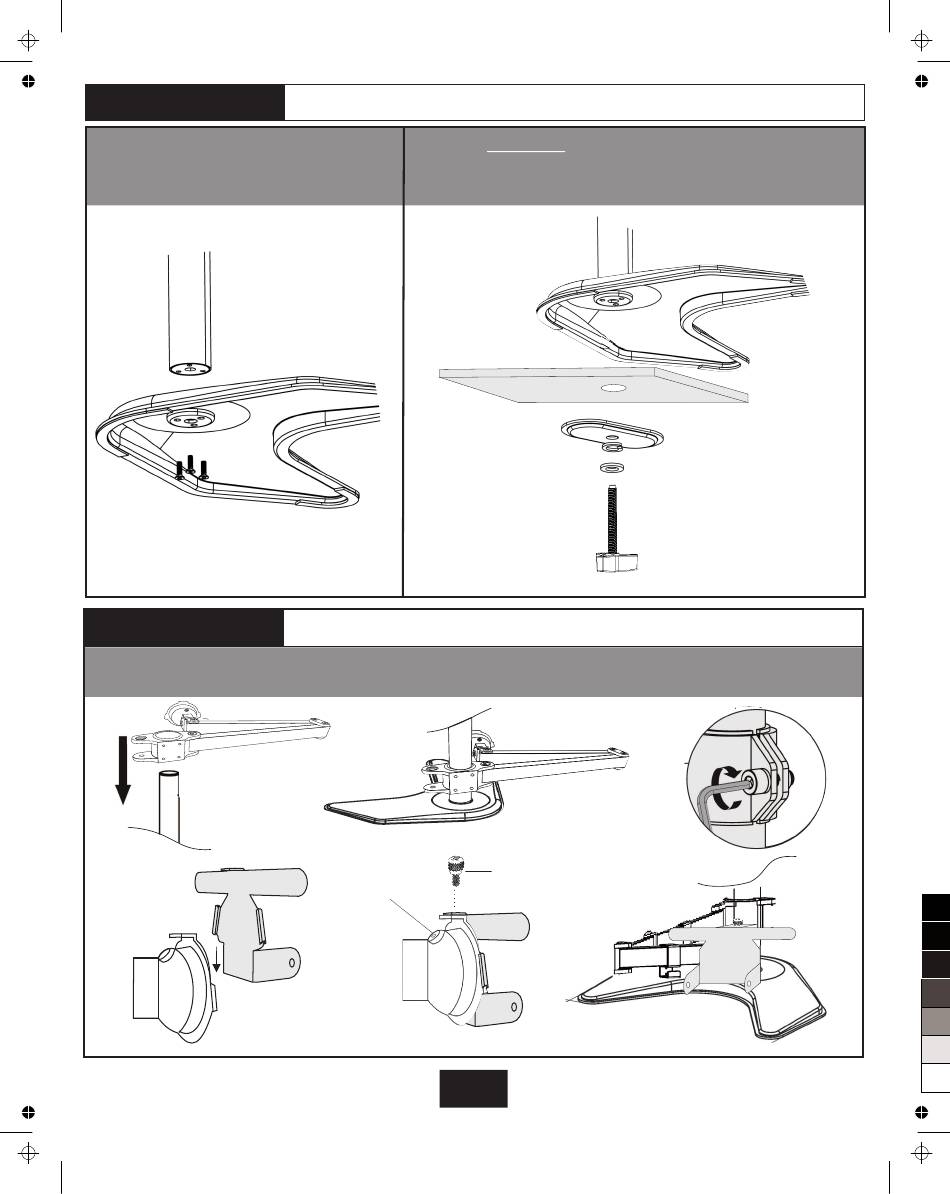

STEP 4
STEP 4a -Install WEIGHTED BASE to pole
with (3) M5x14 bolts. Use Allen Wrench
Key to tighten.
POLE
STEP 5
Carefully slide Integrated Microphone Extension Arm down pole until almost at the base. Leave 2-3 inches for clearance when adjusting extension arm. Secure pole clamp
with 6mm Allen Wrench Key. Once the arm is in position, attach the MICROPHONE CRADLE and secure by fastening with THUMB BOLT (hand tighten only). The pivoting
plate should move with some resistance and then stay in place, adjust the tension screw if necessary.
MICROPHONE EXTENSION ARM
POLE
PIVOTING
PLATE
MOUNT
ALLCAST MULTI STAND OWNERS MANUAL ver2.0
Saturday, February 20, 2021 3:05:50 PM
For Weighted Base
STEP 4b - OPTIONAL FOR PERMANENT MOUNT - once a
location is chosen, measure and drill 3/8" hole in tabletop.
Secure with THREADED KNOB (STEP 3b) and BOTTOM PLATE
WEIGHTED BASE
Integrated Microphone Extension Arm
TENSION
ADJUSTMENT
SCREW
MICROPHONE
CRADLE
THREADED KNOB
THUMB BOLT
5
POLE
WEIGHTED BASE
DESK/TABLETOP
BOTTOM PLATE
