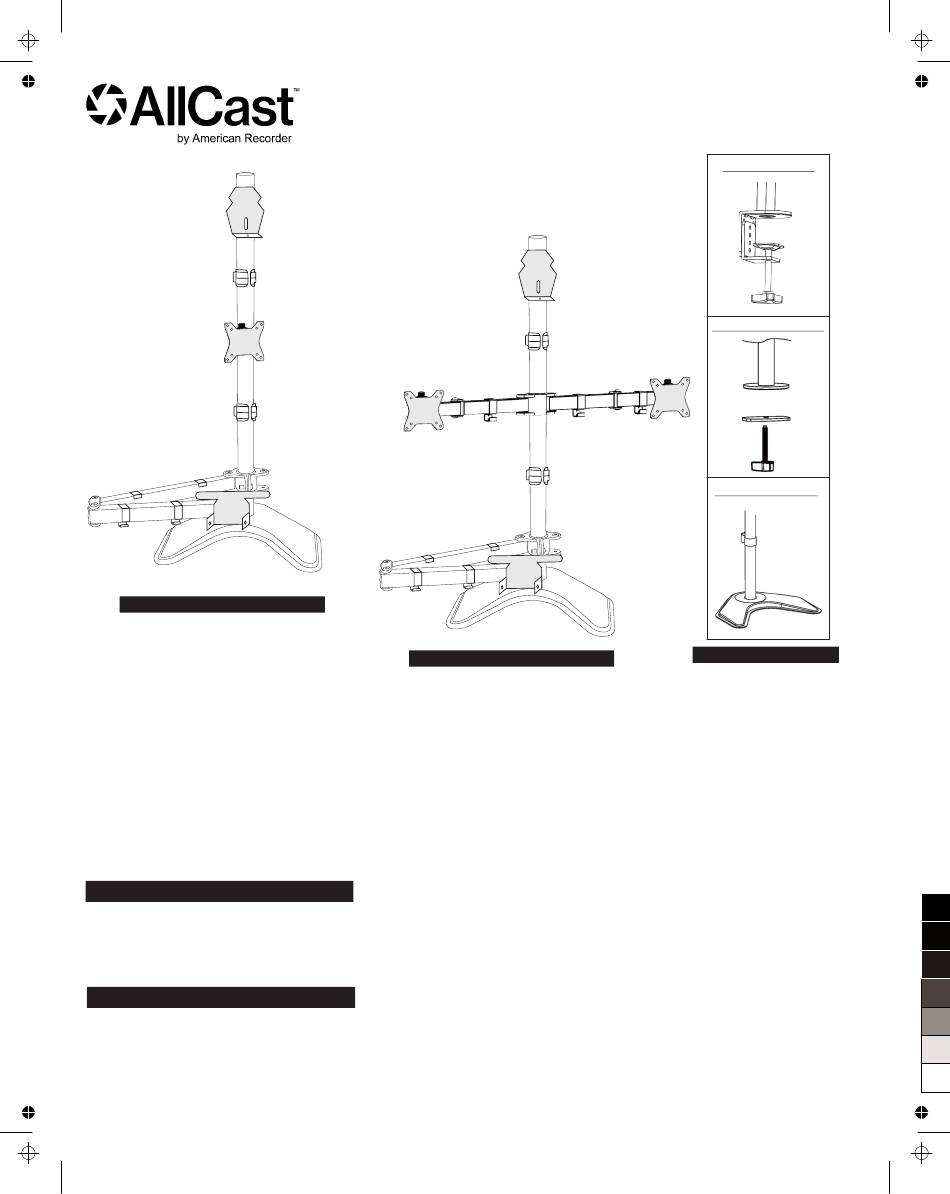

RING LIGHT/
WEB CAM
MOUNT
SINGLE
MONITOR
MOUNT
SINGLE MONITOR SET-UP
Thank you for choosing the ALLCAST Video Conference System with Multi-Function Monitor Stand by American
Recorder. This instruction manual is for stand installation only. Refer to the component set-up manual for attachment
and use of the microphone, camera, light and USB 3.0 Hub.
For more information and videos, please visit our website at www.AmericanRecorder.com. Under the products
heading, click VIDEO CONFERENCING tab and select ALLCAST VIDEO CONFERENCING SYSTEM 1.0. Scroll
down the page and select the HOW TO SET UP ALLCAST VIDEO.
Should you have any issues or questions regarding installation and set up, please do not hesitate to contact us at:
PHONE: 888-611-3790 or 805-527-9580 (MON-FRI, 8:30-4:30 PST); EMAIL: info@AmericanRecorder.com.
UNPACKING INSTRUCTIONS
Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.
Check package contents against the PARTS LIST to confirm all components were received undamaged. Do not use
any damage or defective parts. Carefully read all instructions before attempting installation and set-up.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction manual before installation and carefully follow all
the instructions contained herein. Use proper safety equipment during installation. Contact a qualified installation
contractor for help if you do not understand these directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified in these instructions. We hereby
disclaimed any and all liability for injury or damage arising from the incorrect assembly, incorrect mounting or incorrect
use of this product.
ALLCAST MULTI STAND OWNERS MANUAL ver2.0
Saturday, February 20, 2021 3:05:31 PM
MULTI-FUNCTION MONITOR STAND
MICROPHONE
MOUNT
DUAL MONITOR SET-UP
RING LIGHT/
WEB CAM
MOUNT
DUAL MONITOR MOUNT
MICROPHONE
MOUNT
CLAMP MOUNT
GROMMET MOUNT
WEIGHTED BASE
MOUNTING OPTIONS
100
95
75
25
5
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the AllCast MULTI-FUNCTION MONITOR STAND and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Recorder AllCast MULTI-FUNCTION MONITOR STAND

  • Page 1 MULTI-FUNCTION MONITOR STAND CLAMP MOUNT RING LIGHT/ WEB CAM MOUNT RING LIGHT/ WEB CAM MOUNT GROMMET MOUNT SINGLE MONITOR MOUNT DUAL MONITOR MOUNT WEIGHTED BASE MICROPHONE MOUNT MICROPHONE MOUNT SINGLE MONITOR SET-UP MOUNTING OPTIONS DUAL MONITOR SET-UP Thank you for choosing the ALLCAST Video Conference System with Multi-Function Monitor Stand by American Recorder.

  • Page 2: Parts List

    PARTS LIST SCREW CLAMP FOR USE WITH CLAMP UPPER WEIGHTED BASE FLAT SPRING PLATE AND GROMMET ONLY BOTTOM PLATE WASHER WASHER LOWER L BRACKET M8x10 (2) 28" POLE (UPPER/LOWER) TABLE CLAMP MOUNT WEIGHTED BASE GROMMET BASE PLATE 1 SET 1 SET 1 EACH 1 EACH 24"...
  • Page 3 STEP 1 Connect UPPER and LOWER poles STEP 1a - Loosen Allen Set Screw on lower pole using 2mm Allen Wrench Key STEP 1b - Thread upper and lower poles together and firmly tighten UPPER POLE LOWER POLE STEP 1c - Replace Allen Set Screw and tighten with 2mm Allen Wrench Key ALLCAST MULTI STAND OWNERS MANUAL ver2.0 Saturday, February 20, 2021 3:05:35 PM...
  • Page 4 IMPORTANT NOTE: The ALLCAST Multi-Functional Monitor Stand includes three mounting options that will accomodate most types of desk, tabletops and workstation. The mounting options are CLAMP MOUNT (STEP 2), GROMMET MOUNT (STEP 3) and WEIGHTED BASE (STEP 4). No matter which mounting method you choose, make certain that your desk, tabletop or workstation is in proper working order and will adequately support the stand with attached devises.
  • Page 5 For Weighted Base STEP 4 STEP 4b - OPTIONAL FOR PERMANENT MOUNT - once a STEP 4a -Install WEIGHTED BASE to pole location is chosen, measure and drill 3/8" hole in tabletop. with (3) M5x14 bolts. Use Allen Wrench Secure with THREADED KNOB (STEP 3b) and BOTTOM PLATE Key to tighten.
  • Page 6 IMPORTANT NOTE: The ALLCAST Multi-Functional Monitor Stand can be used with either a single or dual flat screen monitors. This stand will not support three monitors. Monitor Arm Assembly STEP 6 STEP 6a SINGLE MONITOR- Place monitor arm onto pole and STEP 6a DUAL MONITOR- Place DUAL MONITOR ARM onto pole secure by tightening arm support bolt with Allen Wrench Key.
  • Page 7 INSTALL SINGLE MONITOR MOUNT INSTALL DUAL MONITOR MOUNT STEP 7 Ring Light & HD Webcam Mount STEP 7b - Attach RING LIGHT/WEB CAM PLATE to STEP 7a - Assemble MONITOR ARM onto the pole as shown and monitor arm. Fasten with thumb knob. secure by tightening arm support bolt with 6mm Allen Wrench Key.
  • Page 8 INSTALL SINGLE MONITOR MOUNT INSTALL DUAL MONITOR MOUNT Mount USB and Connect System STEP 9 STEP 9a - Fasten HUB CLAMP to back of microphone arm with the STEP 9b - Connect MICROPHONE, RING LIGHT and HD WEBCAM M4X18mm threaded screw. Extend the CLAMPS spring-loaded arm USB Cables to USB 3.0 HUB.
