Summary of Contents for Furniture of America Winona CM-OS2580

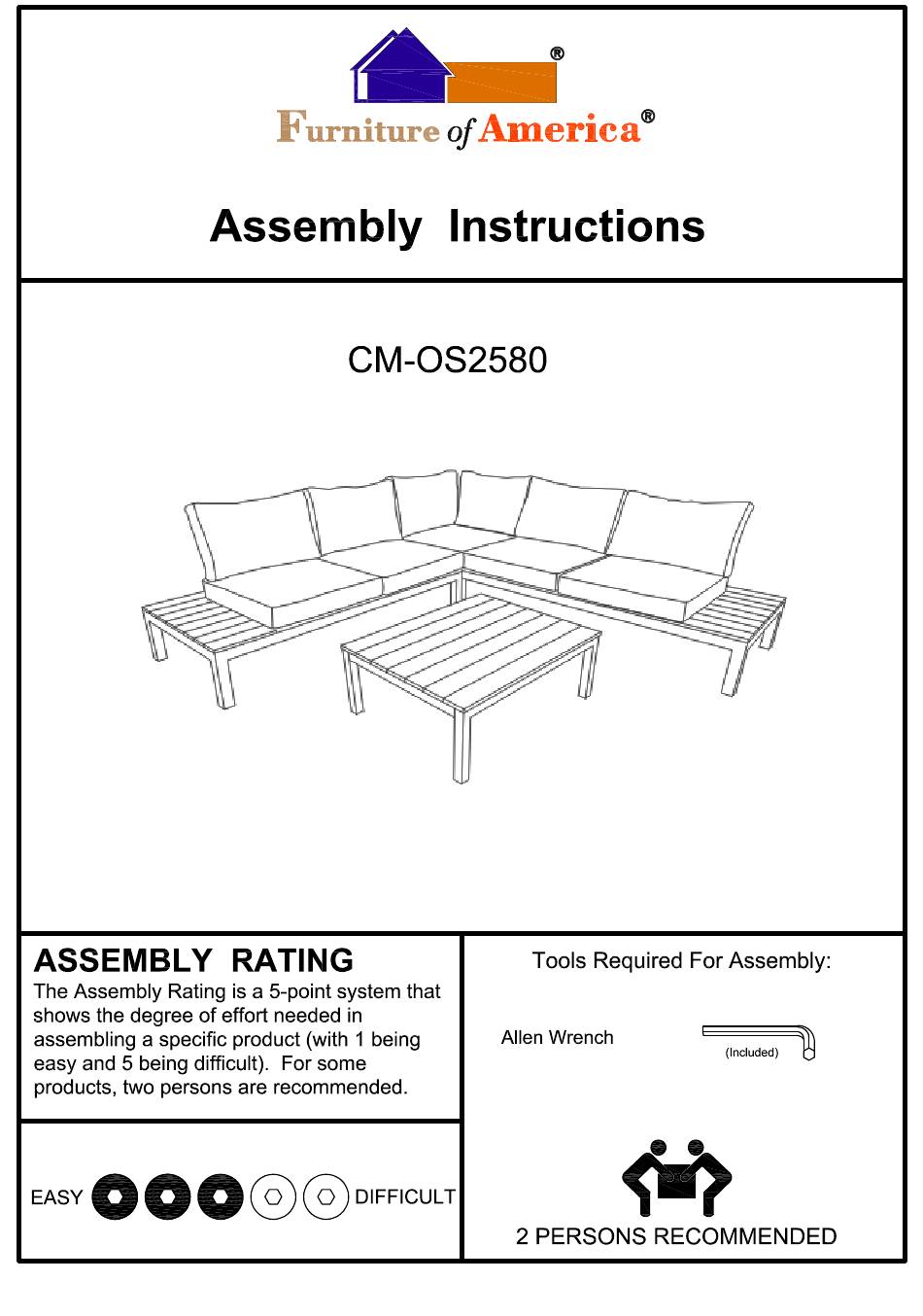

- Page 1 For more information contact our team: service.ec@foagroup.com Rev: 18-01-22 Page 1 of 10...
- Page 2 Page 2 of 10...
- Page 3 #A x 4pcs #1 x 1pc Seat Frame ( L & R ) #2 x 2pcs #B x 8pcs Backrest Bolt 1/4" x 1-3/8" #3 x 2pcs Seat Cushion #D x 1pc #4 x 2pcs Back Cushion Page 3 of 10...
- Page 4 Align backrests (#2) to the holes of the right seat frame (#1R). Secure by using bolts (#B) with washers (#C) and brackets (#A). #A x 4pcs #B x 8pcs #C x 8pcs Align seat cushions (#3,4) to the right seat frame (#1R). Page 4 of 10...
- Page 5 Align backrests (#2) to the holes of the left seat frame (#1L). Secure by using bolts (#B) with washers (#C) and brackets (#A). #A x 4pcs #B x 8pcs #C x 8pcs Align cushions (#3,4) to the left seat frame (#1L). Page 5 of 10...
- Page 6 #A x 4pcs #1 x 1pc Seat Frame #2 x 2pcs #B x 8pcs Backrest Bolt 1/4" x 1-3/8" #3 x 1pc Seat Cushion #D x 1pc #4 x 2pcs Back Cushion #E x 4pcs Connect Page 6 of 10...
- Page 7 Align backrests (#2) to the holes of the seat frame (#1). Secure by using bolts (#B) with washers (#C) and brackets (#A). #A x 4pcs #B x 8pcs #C x 8pcs Place cushions (#3,4) to the seat frame (#1). Page 7 of 10...
- Page 8 #E x 4pcs Align seat frames together, then connect by using connectors (#5) to the bottom of the frames. Page 8 of 10...
- Page 9 Bolt 1/4" x 1-3/8" #D x 1pc Page 9 of 10...
- Page 10 Align table legs (#2) to the table top (#1), then secure by using bolts (#A) with washers (#B,C). ASSEMBLY IS COMPLETED Page 10 of 10...
