Summary of Contents for SS Telecoms SS-68BB

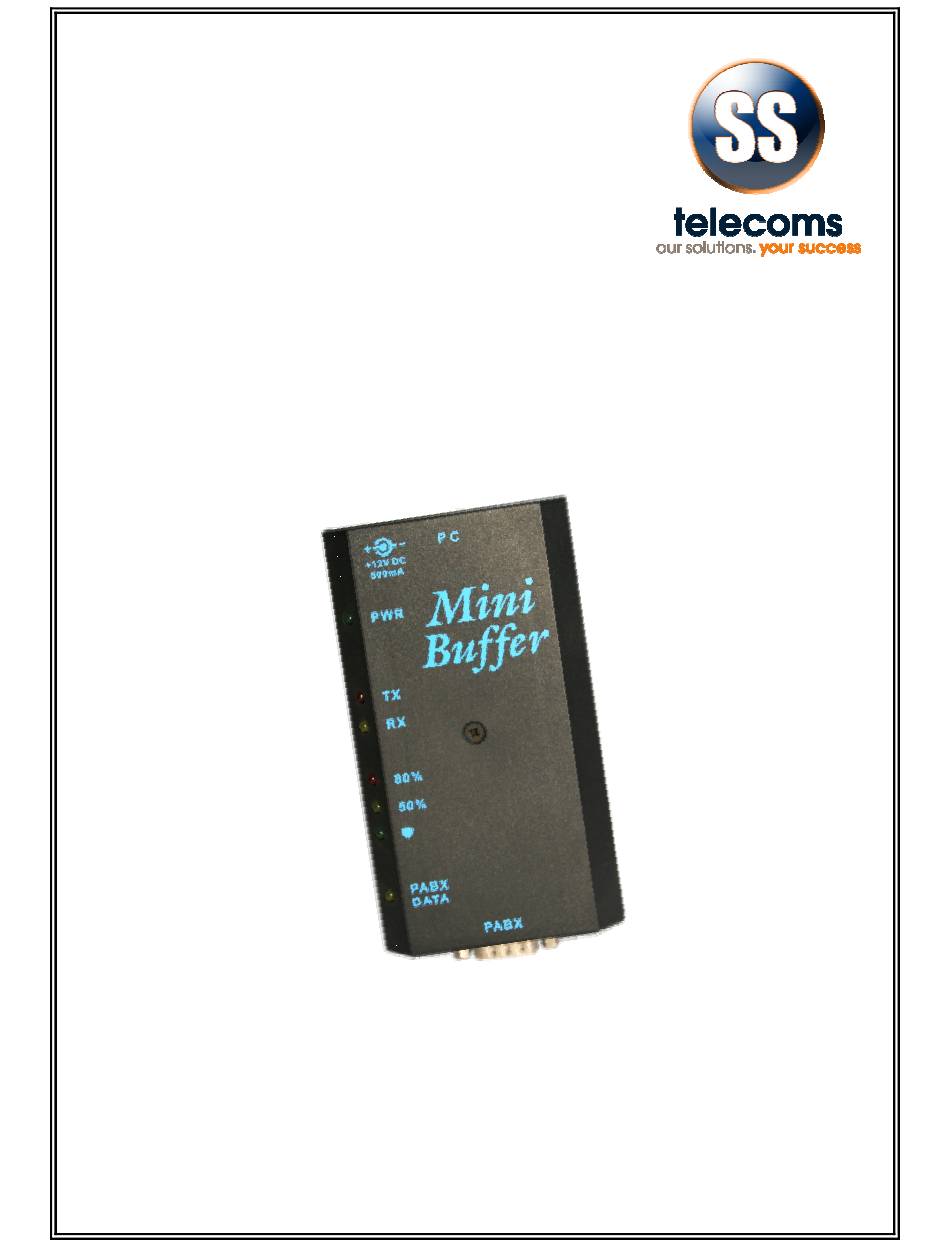

- Page 1 SS-68BB USB MINI BUFFER User Manual...
-
Page 2: Table Of Contents
INSTALLATION OF USB WINDOWS 7 DRIVERS ............. 4 CONNECTING TO SS-68 USING HYPERTERMINAL ............9 PROGRAMMING INSTRUCTIONS ................. 12 TECHNICAL SPECIFICATIONS ..................13 CONTACT DETAILS......................14 APPENDIX A: USING SS—68BB USB AS A SECURITY DONGLE .......... 15 DOC. NO: SS-68BB USB-14 (REV 04) Page 2 of 16... -
Page 3: Introduction
PABX Connection is by means of a Receive from PABX male 9 way ‘D’ type connector 4 & 7 Handshake to PABX Common ‘Ground’ signal 6 & 8 Handshake from PABX DOC. NO: SS-68BB USB-14 (REV 04) Page 3 of 16... -
Page 4: Installation Of Usb Windows 7 Drivers
“Computer (My Computer Win Xp)” and select “Manage”. Step 3 Select “Device Manager” under Computer Management. Step 4 Locate the SS-68 USB Databuffer under “Other devices” and right click and select “Update Driver Software” Step 5 DOC. NO: SS-68BB USB-14 (REV 04) Page 4 of 16... - Page 5 The following window appears. Select “Browse my computer for drives”. Step 6 Use the Browse button to locate drivers. Note: The drivers can be downloaded from SS Telecoms web site or given on a CD at special request. Step 7...
- Page 6 Step 9 Once the USB driver is installed the following window appears. Step 10 You will notice the SS Telecoms Data Buffer USB device under USB controllers. Step 11 DOC. NO: SS-68BB USB-14 (REV 04) Page 6 of 16...
- Page 7 Right click and select “Update Driver Software” Step 14 The following window appears. Select “Browse my computer for drives”. Step 15 Step 15 Use the Browse button to locate drivers. DOC. NO: SS-68BB USB-14 (REV 04) Page 7 of 16...
- Page 8 Select Next and the following window appears indicating that the installation is Step 16 in progress. When the Windows Security message pops up, choose “Install this driver Step 17 software anyway”. DOC. NO: SS-68BB USB-14 (REV 04) Page 8 of 16...
-
Page 9: Connecting To Ss-68 Using Hyperterminal
CONNECTING TO SS-68 USING HYPERTERMINAL Open Hyperterminal and select the Com Port of the SS-68 USB Buffer and click Step 1 OK. Refer to Section 4 “Installation if USB Drivers “ Step 18 DOC. NO: SS-68BB USB-14 (REV 04) Page 9 of 16... - Page 10 SS-68BB USB USER MANUAL Select “Restore Defaults” then click OK Step 2 STEP 3 When connected Hyperterminal will show “Connected” at the left bottom corner. DOC. NO: SS-68BB USB-14 (REV 04) Page 10 of 16...
- Page 11 Once connected , you can start sending commands to the unit. Please see STEP 4 Section 6 “Programming Instructions” for a list of commands. Note: Use Upper Case when typing commands. DOC. NO: SS-68BB USB-14 (REV 04) Page 11 of 16...
-
Page 12: Programming Instructions
AutoDump mode to be cleared when the handshaking has been off for more than the set time. AutoDump then has to be re-enabled using SA 1. V<enter> Display Software Version number TM<enter> Do a memory test DOC. NO: SS-68BB USB-14 (REV 04) Page 12 of 16... -
Page 13: Technical Specifications
Time stamping of call records and events Data compression, typical ratio 2.5:1 Warning beeper at 95% full Data storage DTR enabled dumping of records ASCII handshake protocol Fully error corrected proprietary protocol DOC. NO: SS-68BB USB-14 (REV 04) Page 13 of 16... -
Page 14: Contact Details
+27 86 614 5625 e-mail: info@sstelecoms.com Postal address: Postnet Suite 48 Private Bag x 1015 Lyttelton, 0140 Pretoria, Gauteng South Africa Sales Support: e-mail: sales@sstelecoms.com United Kingdom e-mail: uksales@sstelecoms.com Technical Support: e-mail: support@sstelecoms.com DOC. NO: SS-68BB USB-14 (REV 04) Page 14 of 16... -
Page 15: Using Ss-68Bb Usb As A Security Dongle
Telephone Management System is the application. SS Telecoms have developed a simple protocol that will allow software to verify that it is attached to a matching buffer. DISCUSSION ON SECURITY ISSUES There is a simple level of security provided by having a data buffer in the first place. - Page 16 //======== do the calculation on the UserKey ============= for (int i = 0; i < strlen(SecretKey); i++) CalcCrc(SecretKry[i]); //==== crc should be equal to retCrc if all is well ========== DOC. NO: SS-68BB USB-14 (REV 04) Page 16 of 16...
