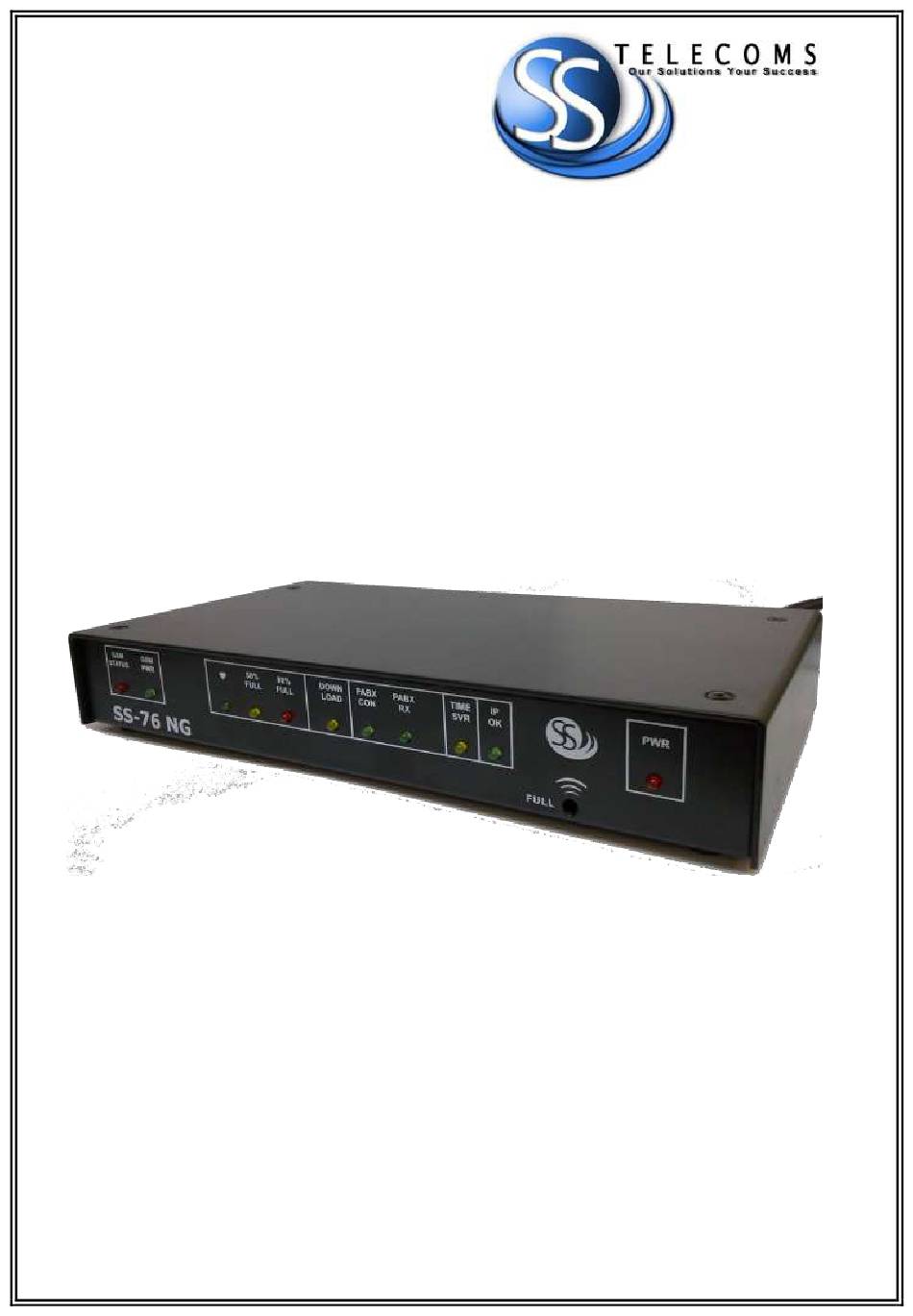

  • Page 1 SS-76 NG User Manual...

  • Page 2: Table Of Contents

    ASCII DATA COLLECTION VIA SERIAL PORT ........18 11.2 DATA COLLECTION ON ALCATEL 4400 / OMNI PCX ......18 11.3 DATA RETRIEVAL USING UDP LOGGER ..........18 CONTACT DETAILS ................19 DOC. NO: SS-76 NG (REVISION 05) Page 2 of 19...

  • Page 3: Purpose

     SNTP  ASCII  NBNS  STX-ETX   LG Opticon   ISDX   RoboDog  Syslog  Avaya  IPS 2000 CPU 3000 – 4000   DOC. NO: SS-76 NG (REVISION 05) Page 3 of 19...

  • Page 4: Description Of Front Panel

    This LED flashes with a 50% duty cycle when searching for the GSM network. GSM STATUS It flashes with a 10% duty cycle when logged onto the GSM network. Permanently on when contact has been established with the server. DOC. NO: SS-76 NG (REVISION 05) Page 4 of 19...

  • Page 5: Description Of Rear Panel

    Battery backup allows:  Orderly shutdown of Ethernet connections  Continued logging on Serial Port for up to 2 days  Date / Time (RTC) for extended period up to 2 weeks DOC. NO: SS-76 NG (REVISION 05) Page 5 of 19...

  • Page 6: Applications

    SS-76 NG USER MANUAL APPLICATIONS BASIC SETUP Telephone Telephone Connection via Private or Telephone Public APN SS-76NG GPRS Buffer Central TMS (with build in GPRS modem) Server GSM Tower DOC. NO: SS-76 NG (REVISION 05) Page 6 of 19...

  • Page 7: Factory Settings

    12345 – must be something other than 1122 which is Socket 2 (UdpLog Socket) Port the remote port Echo ECHO GPRS APN Internet Blank – Not Set GPRS Username Blank – Not Set GPRS Password Aggressive Download Disabled DOC. NO: SS-76 NG (REVISION 05) Page 7 of 19...

  • Page 8: Getting Started

    10 characters. It is only active for ASCII and STX ETX modes. The default value is 1 ensuring that empty lines (CR/LF only) are eliminated. DOC. NO: SS-76 NG (REVISION 05) Page 8 of 19...
  • Page 9 The SS-75NG wait for the PABX to log in Note: If an invalid or unauthorised option for XLT is selected an option list is displayed with the authorised options marked: DOC. NO: SS-76 NG (REVISION 05) Page 9 of 19...
  • Page 10 The various flags can be set or enable individually, so to turn on seconds use “SDI S”. This will set the seconds on. The result of the command is displayed. DOC. NO: SS-76 NG (REVISION 05) Page 10 of 19...
  • Page 11 Sets the delay from connection active until dumping starts to nnn.n SAT <nnn.n> seconds. This allows short glitches to be ignored. (Such as mouse probing when a PC starts up). DOC. NO: SS-76 NG (REVISION 05) Page 11 of 19...
  • Page 12 Enables GSM Aggressive download. When this option is enabled the SS-76 NG will attempt to send records immediately when they are received rather than wait for the normal 90 second cycle. The GAG <On/Off>...
  • Page 13 Locks or Unlocks the SIM PIN. <s> can be Y/N, T/F, E/D, 1/0, or ON/OFF. <simpin> is required and must match both the SIMPIN stored on the SS-76 NG and the PIN set on the SIM card. The SIMLOK <s>,<simpin>...
  • Page 14 This is followed by: TotalRecords x Where „x‟ is the actual number of records sent. If the buffer is empty it sends the message “NO DATA<enter>”. DOC. NO: SS-76 NG (REVISION 05) Page 14 of 19...

  • Page 15: Alcatel 4400 Related Commands

    This sets the timeout for receiving records in minutes. If a record has LGT <timeout> not been received for this number of minutes the IP link is closed and re-opened after 30 seconds. DOC. NO: SS-76 NG (REVISION 05) Page 15 of 19...

  • Page 16: Syslog Setup

    Sets the FTP Username. Maximum 12 characters. FTP <password> Sets the FTP password for Username. Maximum 12 characters. This selects the directory from which to extract the files. Maximum 29 FTF <filepath> characters. DOC. NO: SS-76 NG (REVISION 05) Page 16 of 19...

  • Page 17: Ftp Server

    CODE<abc…nmo> This is the challenge of the Challenge-Response dongle mode of operation. Note: There is no space between the command „CODE‟ and the random challenge code. The response will be: DOC. NO: SS-76 NG (REVISION 05) Page 17 of 19...

  • Page 18: Quick Setup Guides

    TMI sstelecoms.pointclark.net (IP address or FQDN of the UDP server)  TMP 1122 (The UDP Logger port)  BID SS0005A4 (Sets the buffer ID as used by UdpLog)  APN Internet  GAG Off DOC. NO: SS-76 NG (REVISION 05) Page 18 of 19...

  • Page 19: Contact Details

    Fax:+27 86 614 5625 E-mail: info@sstelecoms.com Postal address: Postnet Suite 48 Private Bag x 1015 Lyttelton, 0140 Pretoria, Gauteng South Africa Sales Support: E-mail: sales@sstelecoms.com United Kingdom E-mail: uksales@sstelecoms.com Technical Support: E-mail: support@sstelecoms.com DOC. NO: SS-76 NG (REVISION 05) Page 19 of 19...
