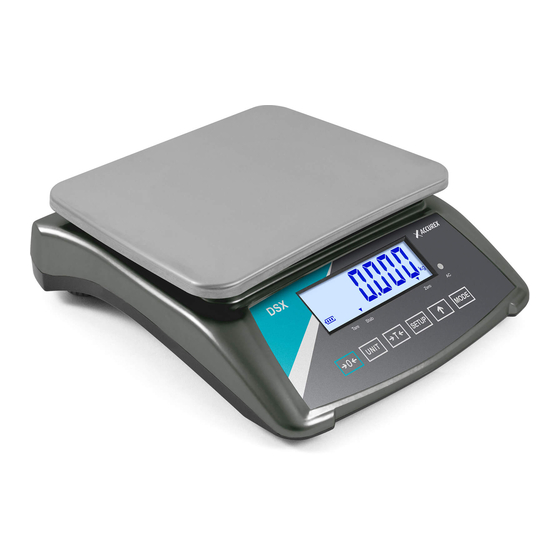

- Page 1 User Manual DSX series Scale...
-
Page 3: Safety Requirements
DSX series, is a high performance product developed and produced by our company, according to GB/ T7722- 2005 《 Electronic Digital Platform Scale 》 standards, It has the characteristics of rapid and accurate measurement, stable and reliable performance, simple and convenient to use. In order to effectively help you to use our company's products correctly, please install and use the scale according to the instructions, which will help your operation and extend the service life of the scale. -
Page 4: Specification
Specification Maximum capacity 3000 6000 15000 30000 （g） Minimum capacity （g） verification scale intervale（g） Division (g) Minimum sample weight（g） Minimum single weight 0.15 0.75 （g） Minimum sampling quantity（PCS） repeatability（g） ±0.2 ±0.4 ±1.0 ±2.0 linearity（g） ±0.2 ±0.4 ±1.0 ±2.0 Display LCD backlight display Keys 6 touch keys Accuracy... -
Page 5: Keyboard Functions
4. When used, the center of gravity of the weighing object must be located in the center of the scale plate, and the weighing object should not exceed the scope of the scale plate, to ensure its accuracy. 5. Before using the electronic balance, please heat up the engine for 15 ~ 20 minutes. Display and key panel description Keyboard Functions 1. -
Page 6: Operational Approach
Operational Approach 1. [Weighing Mode]： Under weighing mode, press 【 MODE 】 key to enter counting mode. UNIT SELECT： Press 【UNIT】 key to select the weighing unit of KG or LB, the corresponding indicator will appear on the display screen. TARE：Place the items on the scale plate which need to removed the tare weight, then press 【TARE】... - Page 7 Put enough samples on the scale, press【TARE】key to complete the sampling. (2) By pressing the 【UNIT】 key, the ‘WEIGHT’ window displays ‘000000’,press 【 ↑ 】 key to adjust the number of weights, press【TARE】 key to confirm. When the weight of the sample is less than 0.1% of the maximum capacity of the scale, the ‘WEIGHT’ window displays ‘-CSL-’, which means the sample is insufficient and needs to be sampled again.
-
Page 8: Points For Attention
The ‘WEIGHT’ window displays ‘DOT--3’, press 【 ↑ 】 key to adjust the number of decimal points within’0/1/2/3/4’, and press 【TARE】 key to confirm. The ‘WEIGHT’ window displays ‘ZERO0.5’, press 【 ↑ 】 key to adjust the range of zero within’0.5/1.0/1.5/2.0/2.5/3.0/3.5/4.0/4.5/5.0’, and press 【TARE】... - Page 9 (4) Electronic scale is a high-precision measuring instrument; Not suitable in high humidity, high temperature, strong magnetic field, dust or vibration serious situation to use. (5) Users can bring their own devices for comparison. It is better to compare with the electronic scale before use every day.
- Page 10 01/16062021...
