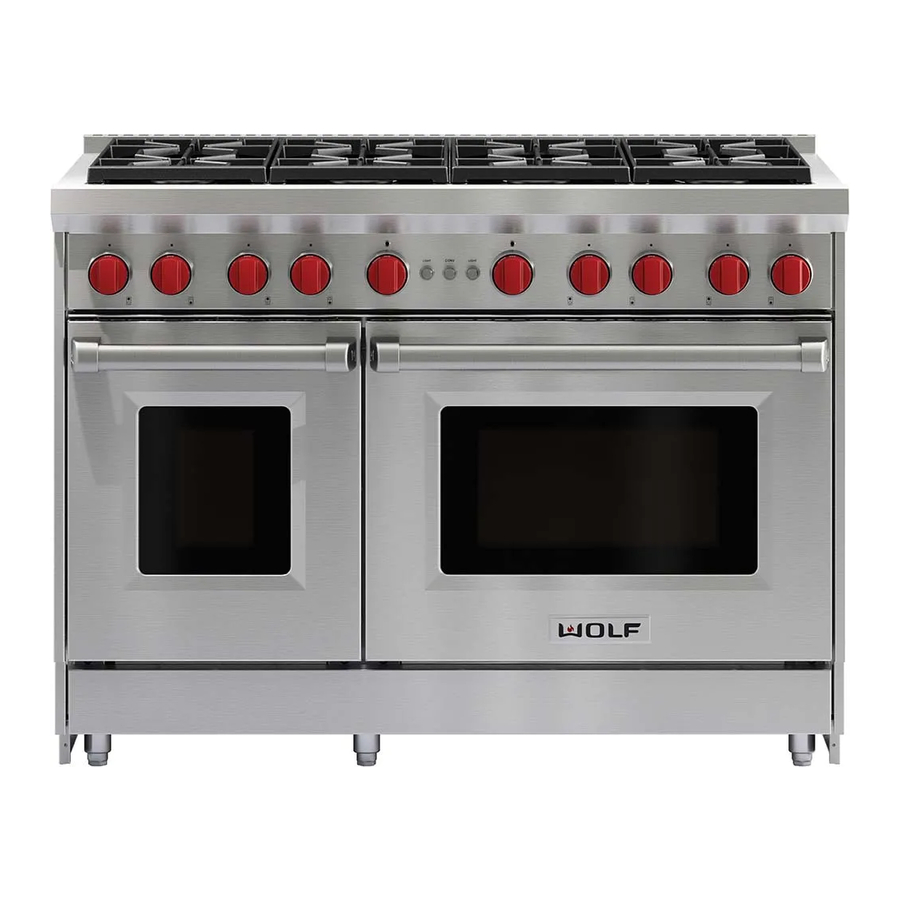

WOLF Gas Range Installation Guide

Features and specifications are subject to change at any time without notice. Visit wolfappliance.com/specs for the most up-to-date information.

Important Note

To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types of highlighted information throughout this guide:


highlights information that is especially important.


Indicates a situation where minor injury or product damage may occur if instructions are not followed.


States a hazard that may cause serious injury or death if precautions are not followed.


Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified.


Save these instructions for the local electrical inspector.

Product Information

Important product information, including the model and serial number, are listed on the product rating plate. The rating plate is located on the bottom of the control panel, at the far right, just above the oven door. Refer to the illustration below.
If service is necessary, contact Wolf Factory Certified Service with the model and serial number. For the name of the nearest Wolf Factory Certified Service or for questions regarding the installation, visit the Product Support section of our website, wolfappliance.com, or call Wolf Customer Care at 800-222-7820.

Rating plate location

Safety Precautions

IMPORTANT INSTRUCTIONS


A child or adult can tip this appliance and be killed.
Verify the anti-tip device has been properly installed and engaged. Ensure the anti-tip device is re-engaged when this appliance is moved. Refer to the illustrations below for how to verify correct installation.
Do not operate this appliance without the anti-tip device in place and engaged. Failure to do so can result in death or serious burns to children or adults.
To reduce the risk of burns, do not move this appliance while hot.
Anti-tip device location
Anti-tip device location

Anti-tip device engaged
Anti-tip device engaged

  • This appliance is equipped with casters on two or more legs and must be installed on 1/8" (3) thick commercial grade vinyl composition floor finishing materials or equivalent.
  • This appliance is not approved for downward airflow ventilation or air curtain equivalent.
  • A minimum 20" (508) riser is required when installing against a combustible surface.

Specifications

Electrical Requirements

Installation must comply with all applicable electrical codes.
Locate the electrical supply flush with the wall or floor and within the shaded area shown in the illustration. A separate circuit servicing only this appliance is required. A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

ELECTRICAL REQUIREMENTS
Electrical Supply grounded, 110/120 VAC, 60 Hz
Service 15 amp dedicated circuit
Receptacle 3-prong grounding-type
Power Cord 6' (1.8 m)

Gas Supply

Installation must comply with local codes, or in the absence of local codes, with the National Fuel Gas Code.
Locate the gas supply within the shaded area shown in the illustration.
The range is equipped for use with natural or liquid propane (LP) gas. The product rating plate has information on the type of gas that should be used. For rating plate location, refer to the illustration below. If this information does not agree with the type of gas available, check with the local gas supplier. The gas pressure regulator is built into the unit.

GAS REQUIREMENTS
NATURAL GAS WC
Supply Pressure 5" (12.5 mb)
Min Line Pressure 7" (17.5 mb)
Max Regulator Pressure 14" (34.9 mb), .5 psi (3.5 kPa)
LP GAS WC
Supply Pressure 10" (25 mb)
Min Line Pressure 11" (27.4 mb)
Max Regulator Pressure 14" (34.9 mb), .5 psi (3.5 kPa)

Rating plate location
Rating plate location

The range must be connected to a regulated gas supply. The supply line must be equipped with an approved external gas shut-off valve located near the range in an accessible location. Do not block access to the shut-off valve. Refer to the illustration below.
A gas supply of 3/4" (19) ID line must be provided to the range. If local codes permit, a certified, 3' (.9 m) long, 1/2" (13) or 3/4" (19) ID flexible metal appliance connector is recommended to connect the units 1/2" NPT female inlet to the gas supply line. Pipe joint compounds suitable for use with natural or LP gas should be used.
The appliance and its shut-off valve must be disconnected from the gas supply piping system during any pressure testing of the system at test pressures in excess of.5 psi (3.5 kPa). The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the system at test pressures equal to or less than.5 psi (3.5 kPa).
Wolf natural gas ranges will function up to 8,600' (2621 m) in altitude without adjustment. If the installation exceeds these elevations, contact an authorized Wolf dealer for a high altitude conversion kit. LP gas ranges do not require conversion.
Gas shut-off valve
Gas shut-off valve

Gas Range INSTALLATION

Side View
Gas Range INSTALLATION Side View

Front View
Gas Range INSTALLATION Front View

*Without ventilation hood, 42" (1067) minimum clearance countertop to combustible materials, charbroiler and GR488 require non-combustible materials.

NOTE:
Shaded area above countertop indicates minimum clearance to combustible surfaces, combustible materials cannot be located within this area.
For island installation, 12" (305) minimum clearance back of range to combustible rear wall above countertop.

OPENING WIDTH W
30" Model 30" (762)
36" Model 36" (914)
48" Model 48" (1219)
60" Model 60 1/4" (1530)

Preparation

Before moving the range, protect any finished flooring and secure oven door(s) closed to prevent damage.
To lighten the load or to fit through a door way, the oven door(s) can be removed. Remove only if necessary. Do not remove the griddle or any other component. Door removal should be done only by a certified installer or service technician.
For removal, a hinge pin will be inserted into the appropriate hinge shown in the illustrations below. The pin(s) are located inside the oven door. For single oven ranges, the hinge pin must be inserted in the right hinge. For double oven ranges, the pins must be placed in the outer two hinges.


Failure to insert the hinge pin in the appropriate hinge arm will cause damage to the range.

Single oven ranges
Single oven ranges

Double oven ranges
Double oven ranges

OVEN DOOR REMOVAL

  1. Insert the hinge pin into the appropriate hinge.
  2. Remove the lower kickplate assembly to access the lower hinge retainer mounting screws.
  3. Open the oven door and remove both upper and lower hinge retainer mounting screws. The oven gasket may have to be moved slightly to access the bottom screws.
  4. Move the hinge retainer plate forward slightly. The hinge retainer plate will remain on the door hinge after the mounting screws have been removed.
  5. Carefully close the oven door to approximately 60°, then lift the door up and out. A slight rocking motion may be required for removal.
    Oven door removal
    Oven door removal

Placement

Do not lift or carry the oven door by the door handle. The range has rear casters which allow for easy movement by lifting the front of the unit.
Use an appliance dolly to move the range near the opening. Remove and recycle packing materials. Do not discard the anti-tip bracket supplied with the range.
If a riser has been specified, refer to installation instructions packaged with the riser. The riser must be installed before the range is installed.

Leveling

Raise the range to its desired height by adjusting the front legs and rear casters. The front legs can be adjusted by rotating the hexa gonal leg clockwise to raise and counterclockwise to lower. The rear casters can be adjusted by rotating the wheel assembly.

Anti-Tip Bracket

To prevent the range from tipping forward, the anti-tip bracket must be installed. To ensure the anti-tip bolt engages the bracket, position the bracket 3" (76) from the left side of the opening. Refer to the illustration below.

INSTALL BRACKET

Drywall application: After properly positioning the anti-tip bracket, mark the holes, then use a Phillips screwdriver or a low rpm power drill to drive the wall anchor into the surface of the wallboard until flush. Pre-drill the holes if needed. For hard wallboard or double-board construction, use a 1⁄4" drill bit. For solid plaster, use a 7⁄16" drill bit. Refer to the illustration below. Use the #8 screws and flat washers to fasten the bracket to the wall.
Wood floor application: After properly positioning the anti-tip bracket, drill 3⁄16" (5) pilot holes through the floor. Use the #12 screws and flat washers to secure the bracket to the floor.
Concrete floor application: After properly positioning the anti-tip bracket, drill 3⁄8" (10) holes into the concrete a minimum of 1½" (38) deep. Use the 3⁄8" wedge anchors to secure the bracket to the floor.
Anti-tip bracket location
Anti-tip bracket location

Wall anchor installation
Wall anchor installation

ANTI-TIP BOLT ADJUSTMENT

Once the bracket is secure, adjust the anti-tip bolt so the top of the washer is 7⁄8" (22) maximum from the floor. Slide the range into the opening and verify the anti-tip bolt is engaged. Refer to the illustrations below.

Anti-tip bolt adjustment
Anti-tip bolt adjustment

Anti-tip bolt engaged
Anti-tip bolt engaged

Gas Supply Connection

All connections to the gas piping must be wrench-tightened. Do not overtighten or allow pipes to turn when tightening.
If a flexible metal connector is used, verify it is not kinked, then attach the gas supply line to the regulator on the range. Open the valve and check for leaks by placing a liquid detergent solution onto all gas connections. Bubbles around the connections indicate a gas leak. If a leak appears, close the shut-off valve and adjust the connections.

Troubleshooting


If the range does not operate properly, follow these troubleshooting steps:

  • Verify electrical power is supplied to the range.
  • Verify the gas supply shut-off valve is in the open position.
  • If the range does not operate properly, contact Wolf Factory Certified Service. Do not attempt to repair the range. Wolf is not responsible for service required to correct a faulty installation.
