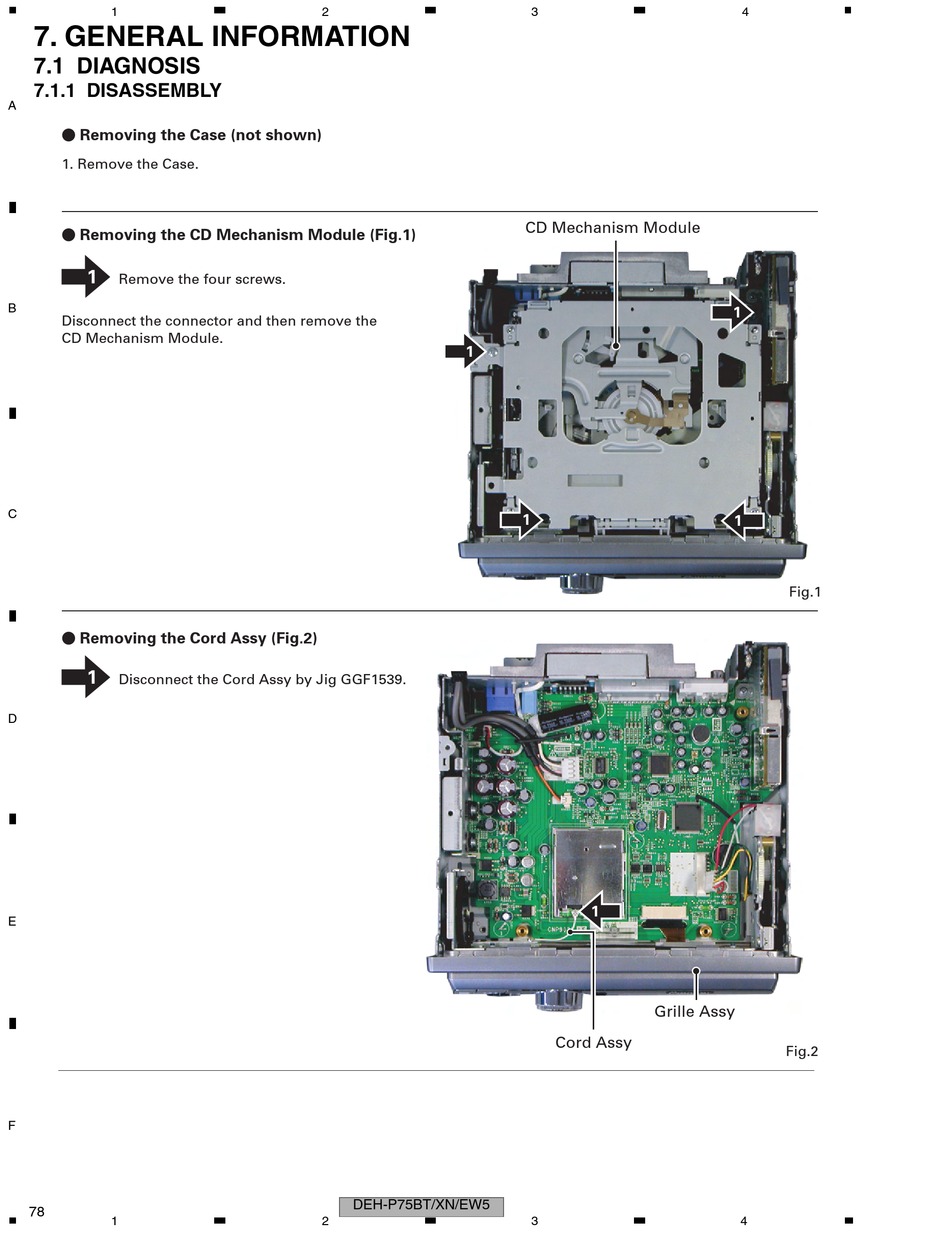

7. GENERAL INFORMATION

7.1 DIAGNOSIS

7.1.1 DISASSEMBLY

A
- Removing the Case (not shown)
1. Remove the Case.
- Removing the CD Mechanism Module (Fig.1)
1
Remove the four screws.
B
Disconnect the connector and then remove the
CD Mechanism Module.
C
- Removing the Cord Assy (Fig.2)
1
Disconnect the Cord Assy by Jig GGF1539.
D
3
E
F
78
1
2
1
DEH-P75BT/XN/EW5
2
3
CD Mechanism Module
1
1
Grille Assy
Cord Assy
3
4
1
1
Fig.1
Fig.2
