BASIC
OPERATION
GUIDE

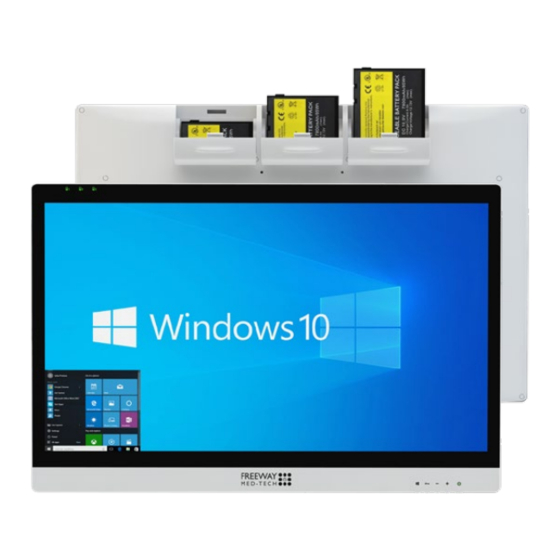

MT500-24T
Battery powered All-in-one Monitor/PC
INTRODUCTION
Thank you for purchasing Freeway Med-Tech's Battery Powered Medical Grade AIO Monitor/PC. With a 24-
inch display and optional integrated batteries, the AIO Monitor/PC offers optimal combinations of performance
and power savings. With fully-integrated point-of-care modules within an elegant, space-saving design, the AIO
Monitor/PC is the optimum solution to enhance workflow and service.
Please take a few moments to review the contents of this document to ensure that the setup and startup
proceed smoothly. The AIO Monitor/PC is ready for use, out of the box, in its default configuration when
powered by the power source provided. The following documentation offers guidance on the hardware
elements and features of the monitor. Please refer to your device provider for information pertaining to the
software operating system or software applications.
The MT500-24T supports VESA standard (100x100mm) mounting brackets and arms. Attach the bracket or
the arm to the back of MT500-24T, then use screws (4 x M8x12mm) to fix the VESA bracket or arm.
Package contents
1
MT500-24T Battery
Powered 24in Touch
Screen AIO Monitor/PC
1-3 MT202 Li-ion batteries
(qty dependant on
order spec)
1
Medical Grade AC-DC
power adapter with
orange curly power cord
1
Basic Operation Guide
Advertisement
Related Manuals for FREEWAY MT500-24T
Summary of Contents for FREEWAY MT500-24T
- Page 1 The MT500-24T supports VESA standard (100x100mm) mounting brackets and arms. Attach the bracket or the arm to the back of MT500-24T, then use screws (4 x M8x12mm) to fix the VESA bracket or arm.
- Page 2 1. The battery packs (optional) shipped with your 3. To conserve power, use (push and quick release) You can clean the MT500-24T as often as required. All health care institutions will have a recommended device may be low in power - please use the AC-DC the Power Button to put the device in “Standby”...
- Page 3 I/O PORTS The MT500-24T AIO Monitor/PC has a comprehensive set of I/O ports. The following ports are located along the lower rear edge of the unit. Battery packs (optional) FRONT REAR TOUCH SCREEN 100x100 VESA mounting DC-in G USB 3.0...
