BASIC
OPERATION
GUIDE

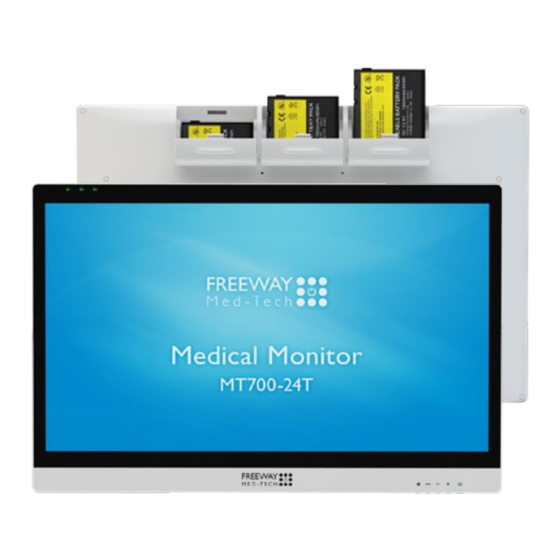

MT700-24T
Battery powered Monitor
INTRODUCTION
Thank you for purchasing Freeway Med-Tech's Medical Grade Monitor. With a 24-inch display and optional
integrated batteries, the Medical Grade Monitor offers optimal combinations of performance and power
savings. With fully-integrated point-of-care modules within an elegant, space-saving design, the Medical Grade
Monitor is the optimum solution to enhance workflow and service, while paired with NHS Hospital Standard
MFF PC, or thin clients.
Please take a few moments to review the contents of this document to ensure that the setup and startup
proceed smoothly. The Monitor is ready for use, out of the box, in its default configuration when powered
by the power source provided. The following documentation offers guidance on the hardware elements
and features of the monitor. Please refer to your device provider for information pertaining to the software
operating system or software applications.
The MT700-24T supports VESA standard (100x100mm) mounting brackets and arms. Attach the bracket or
the arm to the back of MT700-24T, then use screws (4 x M4x12mm) to fix the VESA bracket or arm.
Package contents
1
MT700-24T Battery
Powered 24in Touch
Screen Monitor
1-3 MT202 Li-ion batteries
(qty dependant on
order spec)
1
Medical Grade AC-DC
power adapter with
orange curly power cord
1
Basic Operation Guide
1
Cable Pack – including
HDMI, Dell DC out
(19V) USB Touch / USB
Hub / WiFi x 2
Advertisement
Table of Contents
Related Manuals for FREEWAY MT700-24T
Summary of Contents for FREEWAY MT700-24T
- Page 1 Please refer to your device provider for information pertaining to the software operating system or software applications. The MT700-24T supports VESA standard (100x100mm) mounting brackets and arms. Attach the bracket or the arm to the back of MT700-24T, then use screws (4 x M4x12mm) to fix the VESA bracket or arm.
- Page 2 1. The battery packs (optional) shipped with your 3. To conserve power, use (push and quick release) You can clean the MT700-24T as often as required. All health care institutions will have a recommended device may be low in power - please use the AC- the Power Button to put the device in “Standby”...
- Page 3 I/O PORTS The MT700-24T Monitor has a comprehensive set of I/O ports. The following ports are located along the lower rear edge of the unit. Battery packs (optional) FRONT REAR TOUCH SCREEN 100x100 VESA mounting DC-outputs H USB Type-B for touch screen connection...
