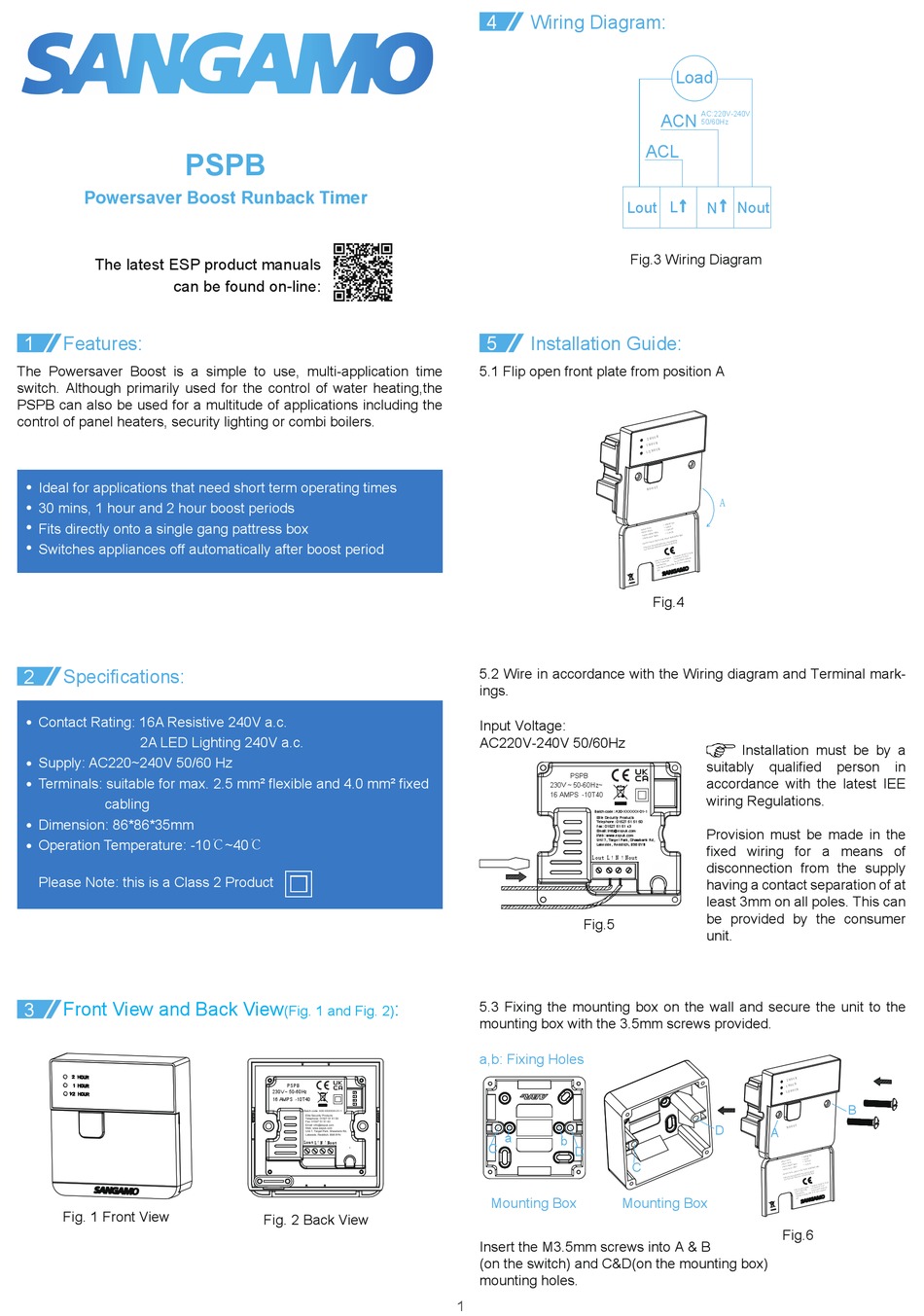

Sangamo PSPB Quick Start Manual

PSPB
Powersaver Boost Runback Timer
The latest ESP product manuals
can be found on-line:
1

Features:

The Powersaver Boost is a simple to use, multi-application time
switch. Although primarily used for the control of water heating,the
PSPB can also be used for a multitude of applications including the
control of panel heaters, security lighting or combi boilers.
Ideal for applications that need short term operating times
30 mins, 1 hour and 2 hour boost periods
Fits directly onto a single gang pattress box
Switches appliances off automatically after boost period

Specifications:

2
Contact Rating: 16A Resistive 240V a.c.
2A LED Lighting 240V a.c.
Supply: AC220~240V 50/60 Hz
Terminals: suitable for max. 2.5 mm² flexible and 4.0 mm² fixed
cabling
Dimension: 86*86*35mm
Operation Temperature: -10℃~40℃
Please Note: this is a Class 2 Product
Front View and Back View
3

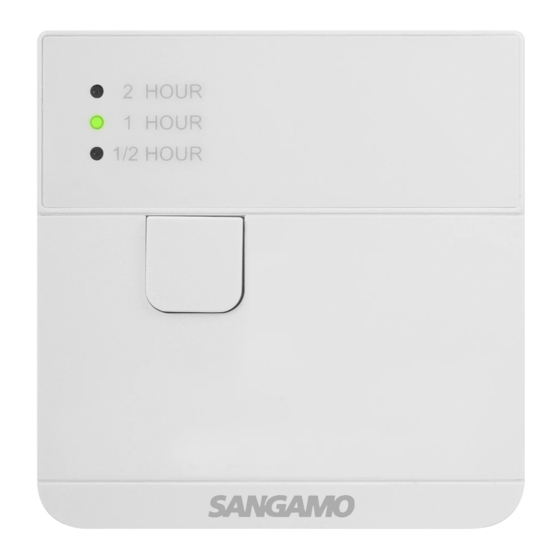

Fig. 1 Front View
:
(Fig. 1 and Fig. 2)
PSPB
230V ~ 50-60Hz
16 AMPS -10T40
Batch code: A30-XXXXXX-01-1
Elite Security Products
Telephone: 01527 51 51 50
Fax: 01527 51 51 43
Email: info@espuk.com
Web: www.espuk.com
Unit 7, Target Park, Shawbank Rd,
Lakeside, Redditch, B98 8YN
Lout
L N Nout
Fig. 2 Back View
4

Wiring Diagram:

Lout L
Fig.3 Wiring Diagram
5

Installation Guide:

5.1 Flip open front plate from position A
5.2 Wire in accordance with the Wiring diagram and Terminal mark-
ings.
Input Voltage:
AC220V-240V 50/60Hz
PSPB
230V ~ 50-60Hz~
16 AMPS -10T40
Batch code: A30-XXXXXX-01-1
Elite Security Products
Telephone: 01527 51 51 50
Fax: 01527 51 51 43
Email: info@espuk.com
Web: www.espuk.com
Unit 7, Target Park, Shawbank Rd,
Lakeside, Redditch, B98 8YN
Lout L N Nout
Fig.5
5.3 Fixing the mounting box on the wall and secure the unit to the
mounting box with the 3.5mm screws provided.
a,b: Fixing Holes
a
b
C
D
Mounting Box Mounting Box
Insert the M3.5mm screws into A & B
(on the switch) and C&D(on the mounting box)
mounting holes.
1
Load
AC:220V-240V
ACN
50/60Hz
ACL
N Nout
A
Fig.4
Installation must be by a
suitably qualified
accordance with the latest IEE
wiring Regulations.
Provision must be made in the
fixed wiring for a means of
disconnection from the supply
having a contact separation of at
least 3mm on all poles. This can
be provided by the consumer
unit.
D
A
C
Fig.6
person in
B
