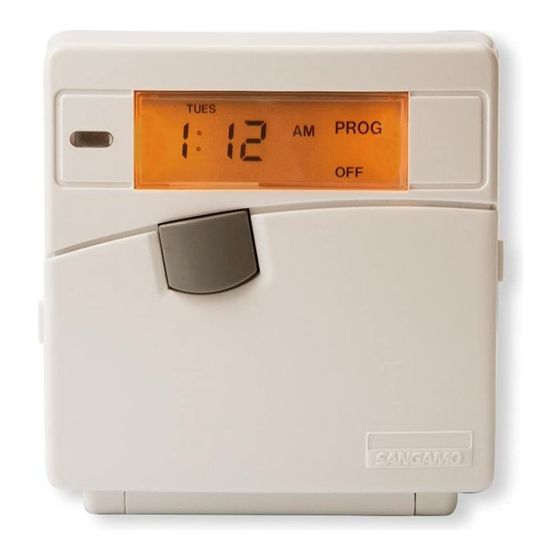

Sangamo PowerSaver Boost Installation Instructions

BOOST / BOOST MAXI
( PSB ) ( PSB MAXI )
2 HOURS / 5 HOURS
1 HOUR / 3 HOURS
1/2 HOUR / 1 HOUR

INSTALLATION INSTRUCTIONS

W A R N I N G – I S O L A T E M A I N S B E F O R E
I N S T A L L A T I O N & S E R V I C I N G
THE INSTALLATION SHOULD BE CARRIED OUT BY
A SUITABLY QUALIFIED PERSON, IN
ACCORDANCE WITH THE CURRENT EDITION OF
THE I.E.E. WIRING REGULATIONS.
WARNING : All Powersaver products must be
earthed, using the earth terminals at the rear of
the switch. The following cabling is recommend
L & N - 1.5mm² - 4.0mm² fixed
- 1.5mm² - 2.5mm² flexible (retro fit
applications (only in conjunction with 143609
surface box)
L Out & N Out - 1.5mm² - 2.5mm² fixed or
flexible
Provision must be made in the fixed wiring for a
means of disconnection from the supply having a
contact separation of at least 3mm on all poles.
This can be provided by the consumer unit.
The Powersaver Product Range are independently
mounted time switches, of electronic construction,
which can be surface or flush mounted. For flush
fitting, a metal box of at least 32mm internal depth
should be fitted with the earth terminal at the
bottom.
For surface mounting, use a patress box with a
minimum internal depth of 32mm.
SERVICE AND WARRANTY
Your Powersaver controller is not user serviceable. PLEASE DO NOT TRY TO DISMANTLE THE UNIT.
This product is guaranteed by your supplier for 2 years from the Date of Manufacture. If it should
become defective, please contact your installer or supplier for a replacement unit.
CUSTOMER CARE POLICY
As part of Sangamo's continuous improvement program, the Company operates a Customer Care
Policy. This means that we welcome your comments and complaints, as it can help us to improve our
services to you, our customer.
Due to our policy of continuous product improvement and development, the specifications in this
guide may be subject to change without prior notice.
DAILY
( PSD )
Do not remove the Powersaver from its packaging
until the patress/wall box is fitted and cleared of
dust & debris. The Powersaver Range is suitable
for use in a normal pollution situation.
The cable clamp at the rear of the unit is for
outgoing cables to the appliance only.
CONNECTION WARNING:
Isolate mains before installing. Supply
terminals are for fixed wiring only. Load terminals
are for fixed or flexible wiring.
insulation from each wire and twist any multiple
connection together.
All earth conductors must be sleeved
(green/yellow) and connected to earth terminal
using earth terminals provided on rear of switch.
Fit the Powersaver to the patress box using screws
provided.
When cutting the aperture for the output flexible
cord, ensure no sharp edges remain.
PLEASE NOTE : This product is not
suitable for mounting on unearthed metal or met-
alised surfaces.
Mounting

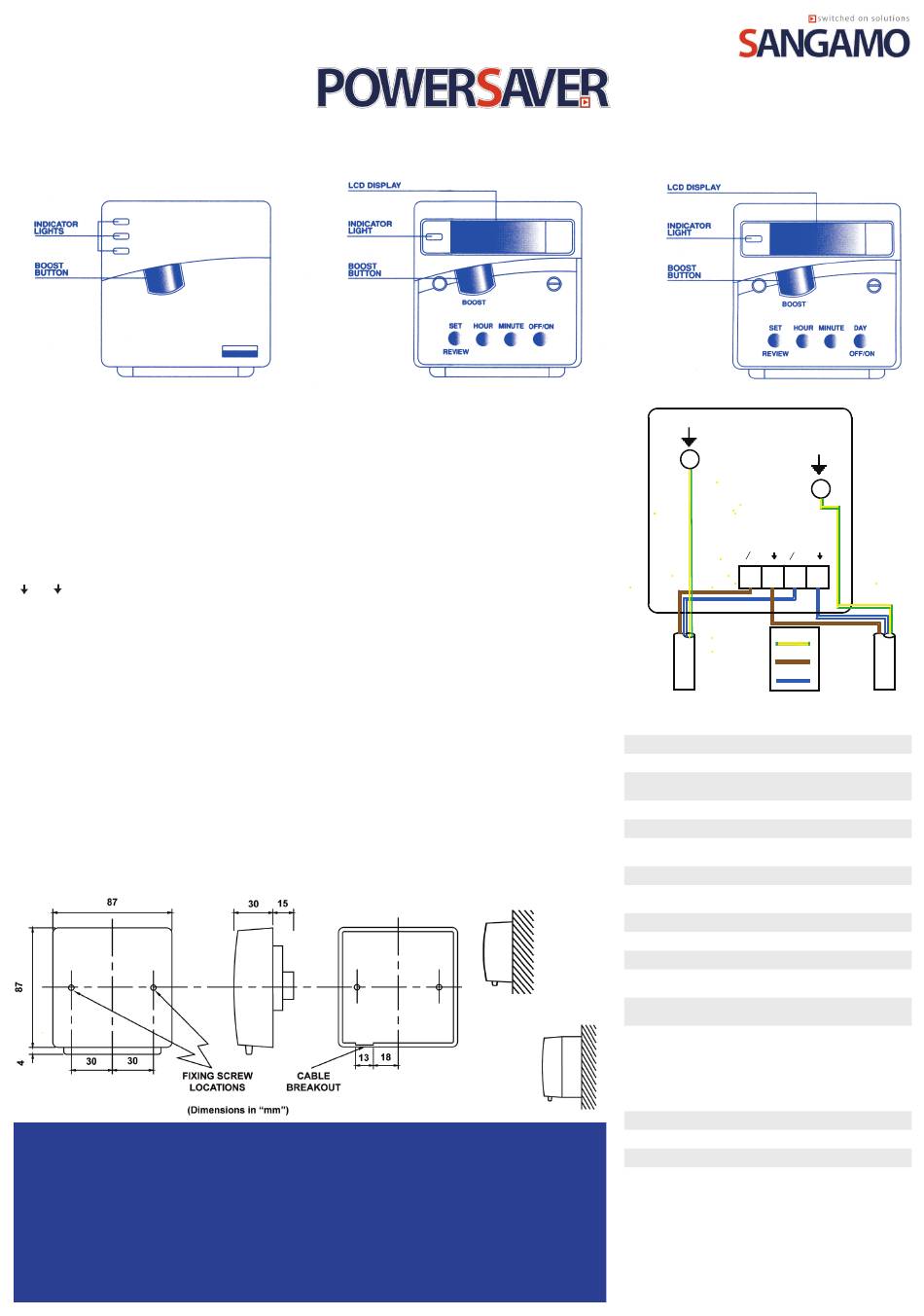

Wiring Diagram

Remove 8mm of
Specification
CONTACT RATING
SUPPLY
FIXING
RESOLUTION OF PROGRAMS
POWER CONSUMPTION
LIVE PARTS PROTECTION
DIRT & MOISTURE PROTECTION
SHOCK PROTECTION
CASE MATERIAL
Flush
TEMPERATURE RATING
Mounting
OPERATING TEMPERATURE
MEMORY RESERVE
(except Boost)
DISPLAY
PROGRAM SETTIGNS
Surface
BOOST FACILITY
TYPE OF ACTION
CONTROL POLLUTION CATEGORY
Tel: 01475 745131
WEEKLY & 24/7
( PSW ) ( PS24/7 )
L Out L N Out N
EARTH
LIVE
NEUTRAL
LOAD
16A Resistive, 240V a.c.
240V, 50-60Hz a.c.
Single Patress – Surface & Flush
Mounting
10 Minutes
10.3VA Maximum
This unit is totally protected by the
enclosure
IP40
Class 1(This must be connected to
earth)
Polycarbonate, PT1 175
T35
0ºC to +35ºC
4 Hours – when on power for previous
12 hours
Liquid Crystal Display
(Boost product has no display)
24/7 - Max 3 On & 3 Off operations
(7 days) each day independantly
programmable.
Weekly - Max 3 On & 3 Off operations
(Mon-Fri), Max 3 On & 3 Off alternative
operations (Sat/Sun).
Daily - Max 3 On & 3 Off operations
(Daily).
User selectable – ½, 1 or 2 hours
Type 1B
Normal
Sangamo Limited
Industrial Estate, Port Glasgow,
Renfrewshire, PA14 5XG
Fax: 01475 744567
Email: enquiries@sangamo.co.uk
Web: www.sangamo.co.uk
MAINS IN
