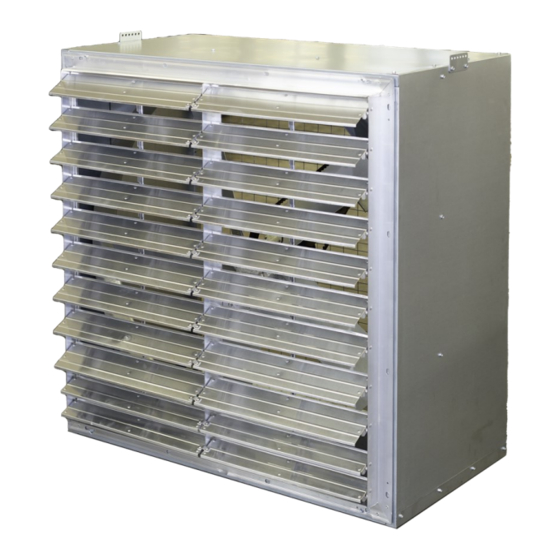

Hessaire 36D370S Instruction Manual

Model Numbers Covered:
36D370S, 36D370TS, 36DL750S, 36DL750TS, 36XL550S,
36XL750S, 36XL750TS, 42DL750S, 42DL750TS, 42XL750S,
42XL750TS, 42XL1125S, 42XL1125TS, 48XL750S,
48XL750TS, 48XL1125S, 48XL1125TS
Please read and save these instructions. Read carefully before
attempting to assemble, install, operate or maintain the equipment
described within this manual. Carefully follow all safety information.
Save this manual for future reference.
Model # _______________________________
Purchase Date: __________________________
Tools/Materials Needed:
•
Drill/drill bits
•
Saw
•
Level
•
Screwdriver(s)
Inspection:
After unpacking your fan, carefully inspect for any damage that may have occurred during transit. Inspect for loose, missing or damaged parts. If
there is physical damage to any parts of the fan, a freight claim must be filed with the carrier. Check to assure that all bolts, screws and set screws
are securely tightened and have not become loose during transit. Retighten as required. Rotate propeller by hand to assure it turns freely.
Warning:
Before installing or servicing, always lock out and tag power source. Do not rely on a switch as the only
means of disconnecting power. Failure to disconnect power can result in fire, electrical shock or serious injury. Motor will restart with-
out warning after thermal protector trips. Do not touch an operating motor as it may be hot enough to cause injury. Do not place any
body parts or objects in fan or drive components while fan is connected to a power source.
Caution:
1. Read and follow all instructions, cautions, dangers and warnings. Failure to do so could result in personal injury, death or property damage.
2. Make sure the electrical power source conforms to the requirement of the fan(s) as well as local codes.
3. Electrical connections, installation and maintenance must be done by qualified electrical personnel in accordance with all applicable codes and
ordinances.
4. Unit must be adequately grounded.
5. To reduce the risk of fire or electrical shock, do not expose this fan to water.
6. Do not touch electrically live components.
7. Free rotation of the propeller is critical. It must not touch any part of the venturi or framework.
8. Assure that all power cords do not come in contact with any sharp edges, hot surfaces or chemicals. Immediately replace any damaged cords.
9. Before operating your new fan, ensure propeller is torqued properly and all fasteners, screens and shutters are securely in place.
OSHA compliant guards must be in place when fan is installed within 7ft of the floor or working level.
MH-0004 Rev. 053122

Getting Started

•
5/16" nut driver
•
Construction screws
•
Caulk or sealant

General Safety Instructions

www.air-movement.com
I N S T R U C T I O N M A N U A L
C A B I N E T E X H A U S T F A N S
Contents:
•
Galvanized box fan with shutter(1)
•
Instruction manual(1)
