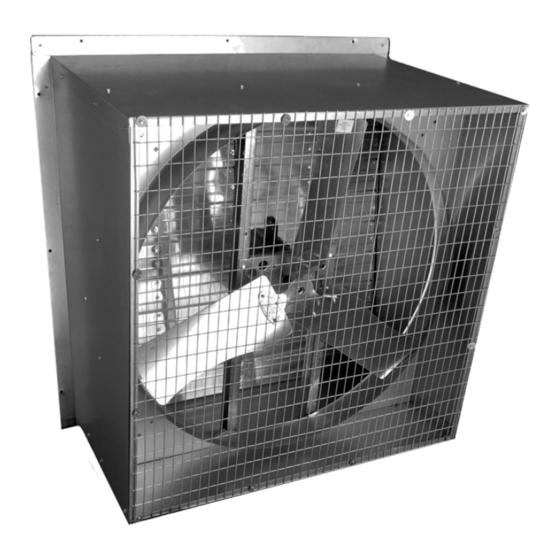

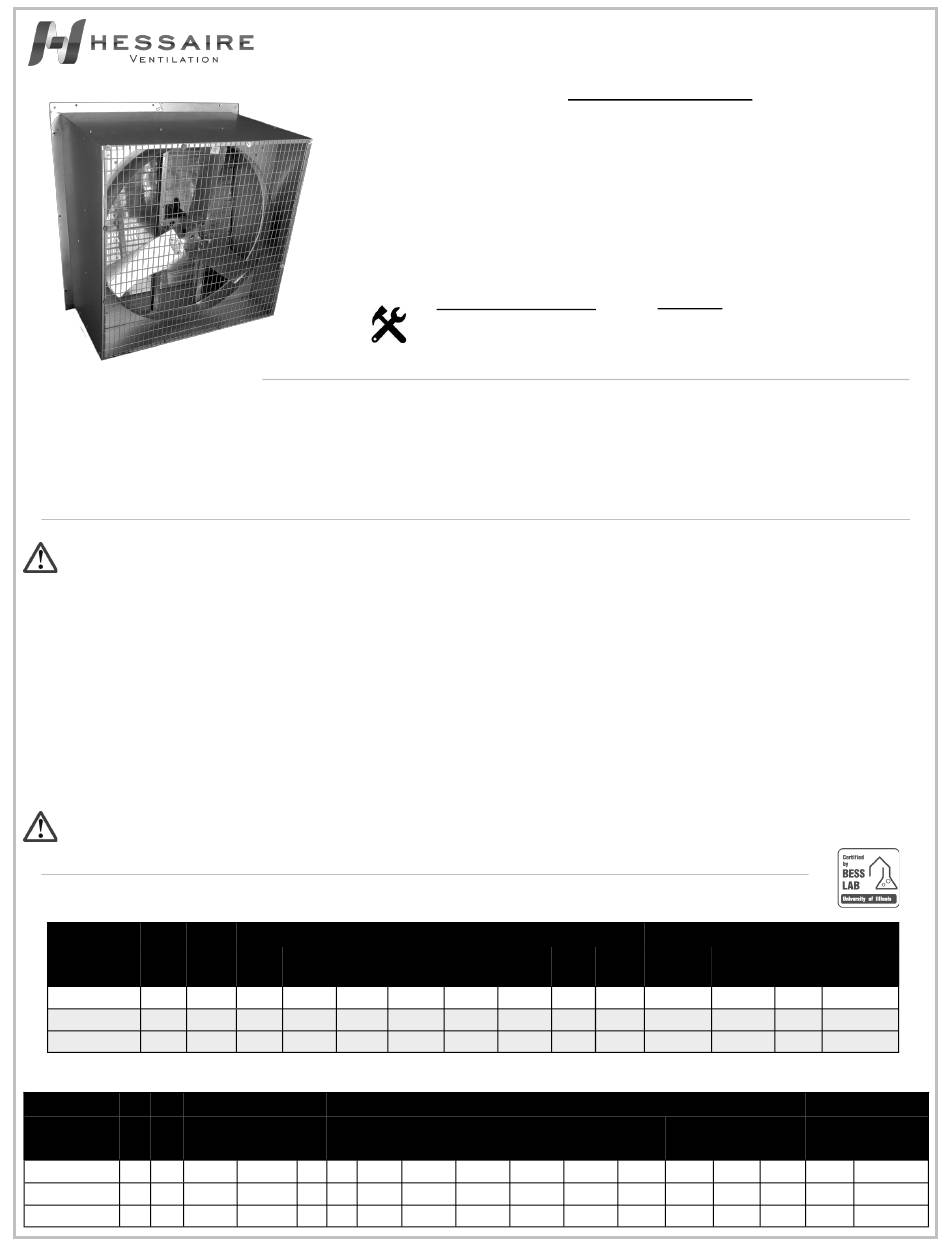

Hessaire 36DSW370 Instruction Manual

After unpacking your fan, carefully inspect for any damage that may have occurred during transit. Inspect for loose, missing or damaged parts.
If there is physical damage to any parts of the fan, a freight claim must be filed with the carrier. Check to assure that all bolts, screws and set
screws are securely tightened and have not become loose during transit. Retighten as required.
Warning:
1. Before installing or servicing, disconnect all power. Keep hands and body parts clear of all moving parts when installing or servicing.
2. Read and follow all instructions, cautions, dangers and warnings. Failure to do so could result in personal injury, death or property damage.
3. Make sure the electrical power source conforms to the requirement of the fan(s) as well as local codes.
4. Electrical connections, installation and maintenance must be done by qualified electrical personnel in accordance with all applicable codes.
5. Unit must be adequately grounded.
6. To reduce the risk of fire or electrical shock, do not expose this fan to water.
7. Do not touch electrically live components.
8. Free rotation of the propeller is critical. It must not touch any part of the venturi or framework.
9. Assure that all power cords do not come in contact with any sharp edges, hot surfaces or chemicals. Immediately replace any damaged cords.
10. Keep hands and body parts clear of all moving parts when installing or servicing.
Caution: OSHA requires OSHA compliant guards within 7ft of the floor or working level.
Prop # Of
Model
Dia. Wings
36SWD370 36"
48SWD750 48"
48SWD750T 48"
Model HP Spd F.L.A.
36SWD370 1/2 1 5.2/2.6 115/230
48SWD750 1 1 11.0/5.5 115/230
48SWD750T 1 1 5.6/2.8 230/460
HVM0009 Rev. 011519
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the equipment described within this manual. Carefully follow all
safety information.
Save this manual for future reference.
Model # ________________________________Purchase Date:____________________

General Safety Instructions

Specifications

A B AA
(In.) (In.) (In.)
3 44 45 1/4 39 1/2
2 56 57 7/8 51 1/2
2 56 57 7/8 51 1/2
Fan
Volt. Ph Hz
RPM
1 60 825
1 60 850
3 60 850
www.hessaire.com
Instruction Manual: Galvanized Slant Wall
Exhaust Fans - Direct Drive
Model Numbers Covered:
36DSW370, 48SWD750, 48SWD750T

Tools/Materials Needed:

•
Drill/drill bits/phillips bit
•
Ratchet/Socket set

Inspection:

(See Dimension Key On Following Page)
Dimension (In.)
BB C D E
(In.) (In.) (In.) (In.)
40 1/8 27 16 3/4 4 1/2 45 3/4
53 1/4 29 1/4 15 5/8 3
53 1/4 29 1/4 15 5/8 3
Performance
High CFM
0.00" 0.05" 0.10"
SP SP SP
10,770 10,100 9,390
19,100 17,900 16,500
19,050 17,850 16,425
Contents:
•
Exhaust Fan(1)
•
Instruction manual(1)
Rough-in Opening
F
Height Width
(In.)
42 7/8 40 7/8
58 1/8 55 1/2 52 7/8
58 1/8 55 1/2 52 7/8
CFM/Watt
0.15" 0.00" 0.05" 0.10"
SP SP SP SP
8,640 19.3 17.4 15.5
14,900 18.1 16.5 14.8
14,820 18 16.4 14.7
Ship Ship.
Wt Dims.
140 48x32x51
260 60x34x62
260 60x34x62
0.15" Db @ Bess Labs
SP 7ft Test #
13.8 76 16137
13.1 80 16143
13 80 -
