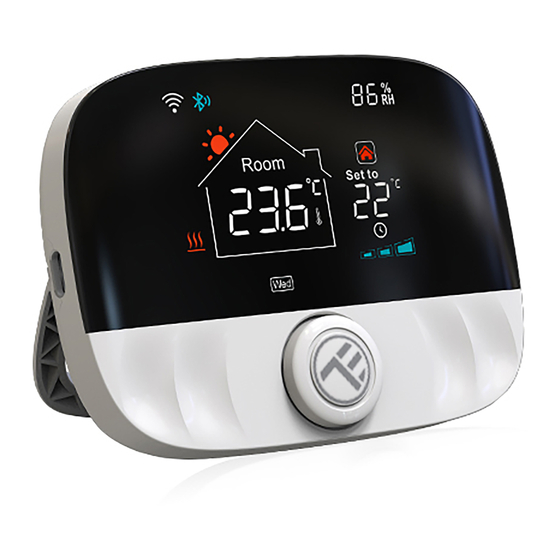

- Page 1 WiFi Smart Ambient Thermostat TSH02 TLL331431 User manual Manual de utilizare Manual del usuario Manuel d’utilisation Manuale d'uso Benutzerhandbuch...
-
Page 2: What's In The Box
Thank you for choosing Tellur! To ensure an optimum performance and safety, please, read this user manual carefully before using the product. Keep this user manual safe for future references. 1. WHAT'S IN THE BOX Central unit & receiver USB Type-C cable... - Page 3 2.2 Receiver Red light ON: Heating ON Red light OFF: Heating OFF Yellow light ON: Force Heating ON Yellow light OFF: Force Heating OFF Green light Flashing: Pairing Green light ON: Pairing complete Green light OFF: Pairing incomplete Power Light ON: Power ON Power Light OFF: Power OFF...
-
Page 4: Technical Specs
Temperature statistics: Yes, by APP Weekly programing: Yes, up to 6 periods each day Frost protection: Yes, initial status OFF Child lock: Yes Display parameters: Current temperature, set temperature, clock, current program, outdoor humidity, weather indicator APP name: Tellur Smart... - Page 5 Amazon Alexa: Yes, compatible Google Assistant: Yes, compatible Siri Shorcuts: Yes, compatible Wireless frequency: 2.4GHz WiFi standard: IEEE 802.11b/g/n Security: WPA-PSK/ WPA2-PSK /WPA/WPA2/WEP Encryption type: WEP/TKIP/AES Compatibility: Devices with Android 6 / iOS 11 or higher Color: Black Package includes: 1x Receiver 1x Central unit 1x Type-C cable 1 meter...
-
Page 6: Product Installation
4. PRODUCT INSTALLATION !!!Important notes and cautionary tips: - Avoid mounting the device in a place where the temperature changes too much, such as heat/cold sources, air-outlet, etc. - If you smell smoke, or hear high noise, from the device, turn off the power and unplug the power cable. - Page 7 Central unit placement Central unit Central unit Central unit installation *Note 1. It is recommended to use new brand 1.5v AA batteries a. 2 x AA batteries 2. Please ensure the correct polarity when installing the battery 1.Insert a screwdriver into the notch on the back of the central unit, pry open the base and the panel frame, and then put the battery into the battery compartment of the device.
-
Page 8: Receiver Installation
Receiver installation 1. Release front cover by inserting a head screwdriver into the bottom crack. 2. You can choose the wiring method a. Exposed wiring: choose any one of the four directions, then use a flat-blade screwdriver to open along the dotted line b. - Page 9 Receiver electrical wiring diagram The thermostat operates in full capacity in areas with the altitude of less 2500m above sea level. Power rating of external load should be less or equal to 80% rated power of the thermostat in areas with altitude of 2500m-to 4200m...
- Page 10 Pairing the receiver with the central unit (paired from factory)
- Page 11 5. PRODUCT UTILIZATION User routine operations Central Unit Auto mode settings...
- Page 12 Central unit advanced settings (Usually for professional technicians)
- Page 13 Receiver operating instructions...
- Page 14 We also recommend having the Bluetooth function activated for an easier pairing. Pairing the device with APP 1.Download and install the Tellur Smart app, available for either iOS or Android devices 2. Once downloaded, the app will ask you to create an account (if you don’t have any...
- Page 15 Wi-Fi, keep the mobile phone and device close to the router to speed up the configuration of the device. 3. Open the Tellur Smart app and click “Add device” or “+” and then select “Small Home appliances” -> “Thermostat (Wi-Fi)”.
- Page 16 4.Activate pairing mode for central unit Once Tellur Smart app is installed on your device and you have added your smart device to your app you will be able to control it. 7.FAILED TO ADD DEVICE? - Make sure the device is powered on.
- Page 17 Open Tellur Smart app, go to "Profile" -> "Device sharing" -> "Sharing sent", tap "Add sharing" and share the device with the added family members. Notice - users must install the Tellur Smart app on their device in order to see shared devices.
- Page 18 Enter your Tellur Smart account and password. Now you have finished the integration with Alexa. Tellur Smart app is now skilled with Alexa and you can vocally control the devices added in Tellur Smart. Remember - if you rename your smart devices, use a simple name that Alexa can recognize.
- Page 19 •You have the Tellur Smart app and a related account. Add devices in Tellur Smart app (refer to app instructions) – you can skip this part if you've already added some devices to your Tellur Smart account. Make sure your devices' names are easily recognizable.
- Page 20 2. Hit the "Add new" button, enter Tellur Smart in the search bar and select the app from the list. Next, select your Tellur Smart account's region, enter your Tellur Smart account and password and tap "Link now". After you assign rooms for devices, your devices will be listed in the Home Control page.
-
Page 21: Disposal And Recycling Information
DISPOSAL AND RECYCLING INFORMATION The crossed-out wheeled-bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in the normal waste stream with household garbage.
